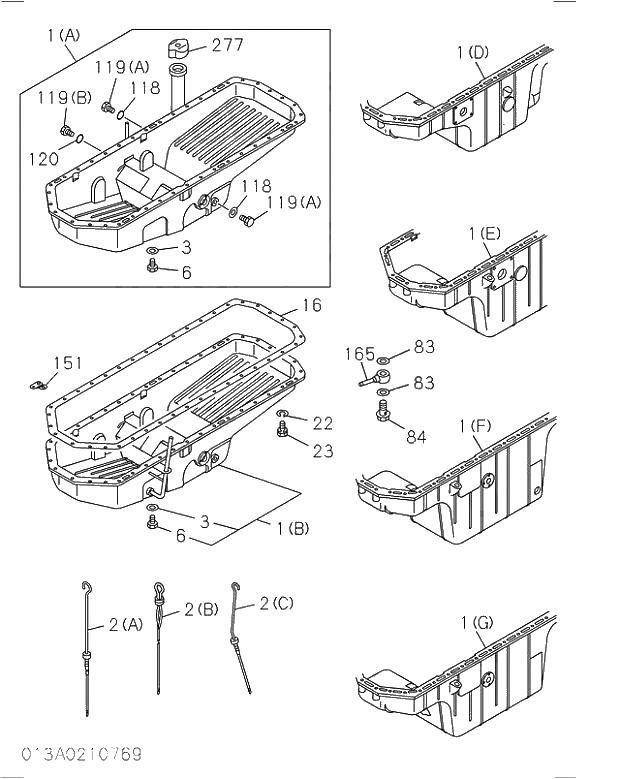

Запчасти Isuzu 013 OIL PAN AND LEVEL GAUGE. 013 OIL PAN AND LEVEL GAUGE.

1(F)

1113614330

PAN ASM; OIL

198308 - 198807

1шт.

1(G)

1113614661

PAN ASM; OIL

198808 -

1шт.

2(B)

1117600581

GAUGE; OIL LEVEL

198308 -

1шт.

3

1096230580

GASKET; DRAIN PLUG

198308 -

1шт.

6

1096040220

PLUG; OIL DRAIN

198308 -

1шт.

8(A)

1117661821

TUBE; GUIDE,OIL LEVEL GAUGE

198308 -

1шт.

9

5096230020

GASKET; GUIDE TUBE,OIL LEVEL GAUGE

198308 -

1шт.

10

9019108160

BOLT; GUIDE TUBE

A 198308 - 199003

1шт.

10

0500408160

BOLT; GUIDE TUBE

199004 -

1шт.

13

9091605080

WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE

198308 -

1шт.

16

1113670640

GASKET; OIL PAN TO C/BL

A 198308 - 199603

1шт.

16

1113670980

GASKET; OIL PAN TO C/BL

199604 -

1шт.

22

9091506100

WASHER; LK,OIL PAN

198308 -

11шт.

23

9019310350

BOLT; OIL PAN

A 198308 - 199003

29шт.

23

0500510350

BOLT; OIL PAN

199004 -

29шт.

23

9016560000

BOLT; OIL PAN

A 198308 - 199003

1шт.

23

0168060000

BOLT; OIL PAN

199004 -

1шт.

23

9016560650

BOLT; OIL PAN

A 198308 - 199003

4шт.

23

0168060650

BOLT; OIL PAN

199004 -

4шт.

23

9016660700

BOLT; OIL PAN

198308 -

6шт.

47(B)

1113691150

CLIP; HOSE,AIR BREATHER

198308 -

1шт.

58(A)

1117691190

STAY; GUIDE TUBE

198308 -

1шт.

108(B)

1113691340

COVER; OIL PAN

198308 -

1шт.

109

1824800280

SWITCH; OIL LEVEL

C 198308 - 199410

1шт.

109

8971193581

SWITCH; OIL LEVEL

199411 - 199510

1шт.

110

1096233550

GASKET; SW,OIL LEVEL

198308 -

1шт.

111

5113690720

SPACER; SW,OIL LEVEL

198308 -

1шт.

112

9019706280

BOLT; SW,OIL LEVEL

A 198308 - 199003

3шт.

112

0501406280

BOLT; SW,OIL LEVEL

199004 -

3шт.

131

9019310200

BOLT; COVER NOISE SHIELD

198308 - 198807

4шт.

151

9113692890

CLIP; WATER DRAIN

198308 -

1шт.

226(A)

1113490960

STAY; HSG TO OIL PAN

198308 -

1шт.

226(C)

1113490950

STAY; HSG TO OIL PAN

198308 -

1шт.

241

1090200081

BOLT; STAY TO OIL PAN

198308 -

2шт.

248

9091505140

WASHER; LK,STAY TO OIL PAN

198308 -

2шт.

1(F)

1113614330

PAN ASM; OIL

198308 - 198807

1шт.

1(G)

1113614661

PAN ASM; OIL

198808 -

1шт.

2(B)

1117600581

GAUGE; OIL LEVEL

198308 -

1шт.

3

1096230580

GASKET; DRAIN PLUG

198308 -

1шт.

6

1096040220

PLUG; OIL DRAIN

198308 -

1шт.

8(A)

1117661821

TUBE; GUIDE,OIL LEVEL GAUGE

198308 -

1шт.

9

5096230020

GASKET; GUIDE TUBE,OIL LEVEL GAUGE

198308 -

1шт.

10

9019108160

BOLT; GUIDE TUBE

A 198308 - 199003

1шт.

10

0500408160

BOLT; GUIDE TUBE

199004 -

1шт.

13

9091605080

WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE

198308 -

1шт.

16

1113670640

GASKET; OIL PAN TO C/BL

A 198308 - 199603

1шт.

16

1113670980

GASKET; OIL PAN TO C/BL

199604 -

1шт.

22

9091506100

WASHER; LK,OIL PAN

198308 -

11шт.

23

9019310350

BOLT; OIL PAN

A 198308 - 199003

29шт.

23

0500510350

BOLT; OIL PAN

199004 -

29шт.

23

9016560000

BOLT; OIL PAN

A 198308 - 199003

1шт.

23

0168060000

BOLT; OIL PAN

199004 -

1шт.

23

9016560650

BOLT; OIL PAN

A 198308 - 199003

4шт.

23

0168060650

BOLT; OIL PAN

199004 -

4шт.

23

9016660700

BOLT; OIL PAN

198308 -

6шт.

47(B)

1113691150

CLIP; HOSE,AIR BREATHER

198308 -

1шт.

58(A)

1117691190

STAY; GUIDE TUBE

198308 -

1шт.

108(B)

1113691340

COVER; OIL PAN

198308 -

1шт.

109

1824800280

SWITCH; OIL LEVEL

C 198308 - 199410

1шт.

109

8971193581

SWITCH; OIL LEVEL

199411 - 199510

1шт.

110

1096233550

GASKET; SW,OIL LEVEL

198308 -

1шт.

111

5113690720

SPACER; SW,OIL LEVEL

198308 -

1шт.

112

9019706280

BOLT; SW,OIL LEVEL

A 198308 - 199003

3шт.

112

0501406280

BOLT; SW,OIL LEVEL

199004 -

3шт.

131

9019310200

BOLT; COVER NOISE SHIELD

198308 - 198807

4шт.

151

9113692890

CLIP; WATER DRAIN

198308 -

1шт.

226(A)

1113490960

STAY; HSG TO OIL PAN

198308 -

1шт.

226(C)

1113490950

STAY; HSG TO OIL PAN

198308 -

1шт.

241

1090200081

BOLT; STAY TO OIL PAN

198308 -

2шт.

248

9091505140

WASHER; LK,STAY TO OIL PAN

198308 -

2шт.
