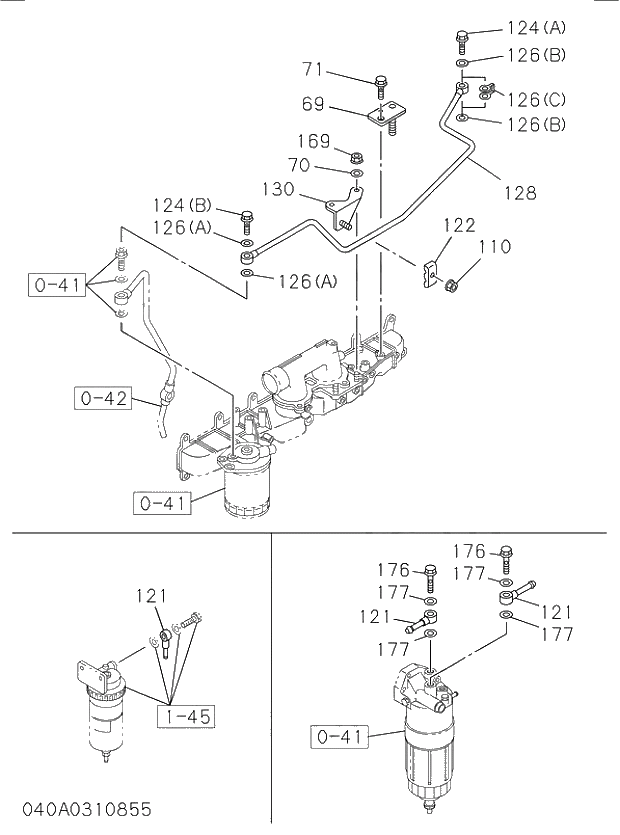

Справочник запчастей Isuzu 040 FUEL INJECTION SYSTEM. 040 FUEL INJECTION SYSTEM. со схемами

1

1156033342

PUMP ASM; INJ

200006-

1шт.

2

281510800

BOLT; INJ PUMP

200601-

4шт.

6

8943904830

BRACKET; INJ PUMP TO C/BL

200006-

1шт.

7

281510400

BOLT; INJ PUMP BRKT

200601-

2шт.

7

281510800

BOLT; INJ PUMP BRKT

200601-

3шт.

10

9197590191

DOWEL; INJ PUMP

200006-

2шт.

15

8943964831

COUPLING ASM; INJ PUMP

200006-

1шт.

16

1154166170

PIPE; INJ NO.1

200006-

1шт.

17

1154164660

PIPE; INJ NO.2

200006-

1шт.

18

1154166180

PIPE; INJ NO.3

200006-

1шт.

19

1154164681

PIPE; INJ NO.4

200006-

1шт.

20

1154164691

PIPE; INJ NO 5

200006-

1шт.

21

1154164700

PIPE; INJ NO 6

200006-

1шт.

31

1153003891

NOZZLE ASM; INJ

200006-

6шт.

32

8943922032

HOLDER ASM; NOZZLE

200006-

1шт.

35

1153491420

NUT; NOZZLE RET,NOZZLE HOLDER

200006-

6шт.

42

9095611120

GASKET; INL CONNECTOR,NOZZLE HOLDER

200006-

6шт.

043(A)

1153420020

SEAT; NOZZLE SPRING,NOZZLE HOLDER

200006-

6шт.

043(B)

1153420030

SEAT; NOZZLE SPRING,NOZZLE HOLDER

200006-

6шт.

44

1153430050

SPRING; NOZZLE,NOZZLE HOLDER

200006-

6шт.

45

1153491290

ROD; PUSH,NOZZLE HOLDER

200006-

6шт.

47

1153491570

SPACER; NOZZLE SPRING,NOZZLE HOLDER

200006-

6шт.

66

8980792480

GASKET; INJ NOZZLE

200910-

6шт.

69

1154195830

BRACKET; INJ PIPE CLIP

200006-

1шт.

70

916105100

WASHER; LK,BRKT

200805-

2шт.

71

280808160

BOLT; BRKT

A 200006-200512

1шт.

71

280508160

BOLT; BRKT

200601-

1шт.

94

8980289991

BRACKET; INJ NOZZLE

200607-

6шт.

107

911801060

NUT; INJ PIPE CLIP

200603-

6шт.

110

911801060

NUT; CLIP

200603-

1шт.

113

1097011321

CLIP; INJ PIPE

200006-

12шт.

121

5154112231

PIPE; FUEL,FEED PUMP,SUCTION

200006-

1шт.

121

5154112231

PIPE; FUEL,FEED PUMP,SUCTION

200204-

2шт.

122

1097011321

CLIP; LEAK OFF PIPE

200012-

2шт.

124(A)

8943967110

BOLT; EYE LEAK OFF PIPE

200006-

2шт.

124(B)

1096750371

BOLT; EYE LEAK OFF PIPE

200006-

1шт.

126(A)

1096300820

GASKET; EYE BOLT LEAK OFF PIPE

200006-

1шт.

126(C)

8972409750

GASKET; EYE BOLT LEAK OFF PIPE

201005-

1шт.

128

1154165250

PIPE ASM; INJ

200006-

1шт.

130

1154195940

BRACKET; OVERFLOW TO LEAK OFF

201009-

1шт.

134

1096750371

BOLT; JOINT,LEAK OFF PIPE

200006-

6шт.

135(A)

8980659920

GASKET; JOINT BOLT,LEAK OFF PIPE

200909-

6шт.

135(B)

8980797550

GASKET; JOINT BOLT,LEAK OFF PIPE

200911-

1шт.

137

8943904510

PIPE ASM; LEAK OFF

200006-

1шт.

138

1153430060

SPRING; NOZZLE LWR,NOZZLE HOLDER

200006-

6шт.

140(A)

1153491120

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491130

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491140

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491150

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491160

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491170

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491180

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491190

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491200

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491210

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491220

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491230

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491240

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491250

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491260

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491270

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

145

8941734120

GASKET; RET NUT

200006-

6шт.

169

911801100

NUT; BRKT

200603-

2шт.

184

8980088950

BOLT; NOZZLE HOLDER

200501-

6шт.

199

1096300850

GASKET; EYE BOLT

200006-

2шт.

216

1096750630

BOLT; EYE

200006-

1шт.

272

1153190260

NOZZLE KIT; INJ

200006-

6шт.

1

1156033342

PUMP ASM; INJ

200006-

1шт.

2

281510800

BOLT; INJ PUMP

200601-

4шт.

6

8943904830

BRACKET; INJ PUMP TO C/BL

200006-

1шт.

7

281510400

BOLT; INJ PUMP BRKT

200601-

2шт.

7

281510800

BOLT; INJ PUMP BRKT

200601-

3шт.

10

9197590191

DOWEL; INJ PUMP

200006-

2шт.

15

8943964831

COUPLING ASM; INJ PUMP

200006-

1шт.

16

1154166170

PIPE; INJ NO.1

200006-

1шт.

17

1154164660

PIPE; INJ NO.2

200006-

1шт.

18

1154166180

PIPE; INJ NO.3

200006-

1шт.

19

1154164681

PIPE; INJ NO.4

200006-

1шт.

20

1154164691

PIPE; INJ NO 5

200006-

1шт.

21

1154164700

PIPE; INJ NO 6

200006-

1шт.

31

1153003891

NOZZLE ASM; INJ

200006-

6шт.

32

8943922032

HOLDER ASM; NOZZLE

200006-

1шт.

35

1153491420

NUT; NOZZLE RET,NOZZLE HOLDER

200006-

6шт.

42

9095611120

GASKET; INL CONNECTOR,NOZZLE HOLDER

200006-

6шт.

043(A)

1153420020

SEAT; NOZZLE SPRING,NOZZLE HOLDER

200006-

6шт.

043(B)

1153420030

SEAT; NOZZLE SPRING,NOZZLE HOLDER

200006-

6шт.

44

1153430050

SPRING; NOZZLE,NOZZLE HOLDER

200006-

6шт.

45

1153491290

ROD; PUSH,NOZZLE HOLDER

200006-

6шт.

47

1153491570

SPACER; NOZZLE SPRING,NOZZLE HOLDER

200006-

6шт.

66

8980792480

GASKET; INJ NOZZLE

200910-

6шт.

69

1154195830

BRACKET; INJ PIPE CLIP

200006-

1шт.

70

916105100

WASHER; LK,BRKT

200805-

2шт.

71

280808160

BOLT; BRKT

A 200006-200512

1шт.

71

280508160

BOLT; BRKT

200601-

1шт.

94

8980289991

BRACKET; INJ NOZZLE

200607-

6шт.

107

911801060

NUT; INJ PIPE CLIP

200603-

6шт.

110

911801060

NUT; CLIP

200603-

1шт.

113

1097011321

CLIP; INJ PIPE

200006-

12шт.

121

5154112231

PIPE; FUEL,FEED PUMP,SUCTION

200006-

1шт.

121

5154112231

PIPE; FUEL,FEED PUMP,SUCTION

200204-

2шт.

122

1097011321

CLIP; LEAK OFF PIPE

200012-

2шт.

124(A)

8943967110

BOLT; EYE LEAK OFF PIPE

200006-

2шт.

124(B)

1096750371

BOLT; EYE LEAK OFF PIPE

200006-

1шт.

126(A)

1096300820

GASKET; EYE BOLT LEAK OFF PIPE

200006-

1шт.

126(C)

8972409750

GASKET; EYE BOLT LEAK OFF PIPE

201005-

1шт.

128

1154165250

PIPE ASM; INJ

200006-

1шт.

130

1154195940

BRACKET; OVERFLOW TO LEAK OFF

201009-

1шт.

134

1096750371

BOLT; JOINT,LEAK OFF PIPE

200006-

6шт.

135(A)

8980659920

GASKET; JOINT BOLT,LEAK OFF PIPE

200909-

6шт.

135(B)

8980797550

GASKET; JOINT BOLT,LEAK OFF PIPE

200911-

1шт.

137

8943904510

PIPE ASM; LEAK OFF

200006-

1шт.

138

1153430060

SPRING; NOZZLE LWR,NOZZLE HOLDER

200006-

6шт.

140(A)

1153491120

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491130

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491140

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491150

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491160

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491170

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491180

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(A)

1153491190

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491200

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491210

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491220

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491230

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491240

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491250

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491260

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

140(B)

1153491270

SHIM; NOZZLE SPRING,NOZZLE HOLDER

200006-

145

8941734120

GASKET; RET NUT

200006-

6шт.

169

911801100

NUT; BRKT

200603-

2шт.

184

8980088950

BOLT; NOZZLE HOLDER

200501-

6шт.

199

1096300850

GASKET; EYE BOLT

200006-

2шт.

216

1096750630

BOLT; EYE

200006-

1шт.

272

1153190260

NOZZLE KIT; INJ

200006-

6шт.

Запчасти Isuzu 040 FUEL INJECTION SYSTEM. 040 FUEL INJECTION SYSTEM.
