Справочник запчастей Isuzu 081 GOVERNOR INJECTION PUMP (199907-). 081 GOVERNOR INJECTION PUMP (199907-). со схемами

001(A)

1157300883

GOVERNOR ASM; INJ PUMP

198508-

1шт.

2

5157210040

HOUSING; GOV,INJ PUMP

198508-

1шт.

3

5157290270

BOLT; GOV HSG,INJ PUMP

198508-

5шт.

004(B)

9813253910

PLATE; START SPRING,GOV

198508-

1шт.

5

1157790930

GASKET; GOV TO INJ PUMP HSG

198508-

1шт.

7

5157210220

COVER; GOV HSG,INJ PUMP

198508-

1шт.

008(A)

5157290330

BOLT; GOV COVER,INJ PUMP

198508-

4шт.

008(A)

5157290540

BOLT; GOV COVER,INJ PUMP

198508-

2шт.

12

1157220170

FLYWEIGHT ASM; GOV

198508-

1шт.

13

5196190490

KEY; FLYWEIGHT,GOV

198508-

1шт.

15

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

198508-

1шт.

16

9813250860

NUT; FLYWEIGHT FIX,GOV

198508-

1шт.

17

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

17

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

198508-

18

5157190080

SLEEVE; GOV

198508-

1шт.

21

5157250570

LEVER ASM; GUIDE,GOV

198508-

1шт.

23

1157250110

LINK; LEVER TO CONT RACK,GOV

198508-

1шт.

24

5157231600

SPRING; START,GOV,INJ PUMP

198508-

1шт.

25

9091854040

RING; SNAP

198508-

1шт.

28

5157250420

LEVER; SUPPORTING,GOV

198508-

1шт.

34

1157232120

SPRING; SPD CONT LEVER,GOV

198508-

1шт.

37

8970638230

LEVER ASM; TENSION,GOV

198508-

1шт.

40

1157291010

SCREW; LEVER ADJ,GOV

198508-

1шт.

41

8944707560

SPRING CAPSULE; IDLE CONT,GOV

198508-

1шт.

43

9008130230

NUT; IDLING CONT SPRING,GOV

198508-

1шт.

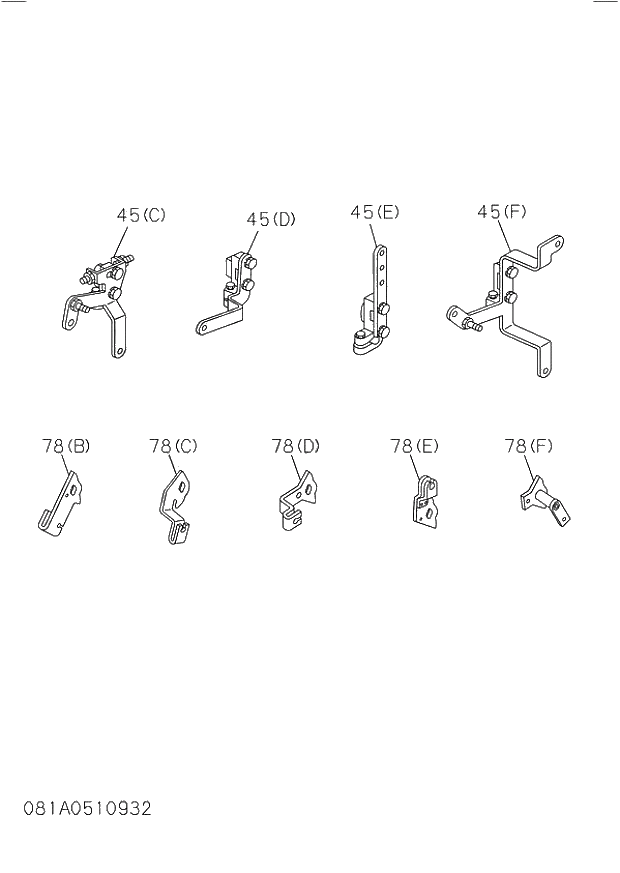

045(C)

1157259370

LEVER ASM; GOV,INJ PUMP

199907-

1шт.

045(G)

8970242380

LEVER ASM; GOV,INJ PUMP

198508-

1шт.

059(B)

1157210230

COVER; GOV COVER

198508-

1шт.

060(A)

9019006160

BOLT; COVER FIX,GOV COVER

198508-

1шт.

060(B)

1156192820

BOLT; COVER FIX,GOV COVER

198508-

2шт.

060(D)

5157291670

BOLT; COVER FIX,GOV COVER

198508-

1шт.

063(A)

1157795740

GASKET; COVER TO GOV COVER

198508-

1шт.

71

5157230880

SPRING; CONT LEVER,GOV

198508-

1шт.

078(E)

1157256700

LEVER; STOPPER,GOV

198508-

1шт.

79

1157292940

SHIM; LEVER SETTING,GOV

198508-

79

1157292950

SHIM; LEVER SETTING,GOV

198508-

79

1157292960

SHIM; LEVER SETTING,GOV

198508-

79

1157292970

SHIM; LEVER SETTING,GOV

198508-

79

1157292980

SHIM; LEVER SETTING,GOV

198508-

79

1157292990

SHIM; LEVER SETTING,GOV

198508-

83

1157298850

SEAL; OIL,CONT SHAFT,GOV

198508-

1шт.

86

9813254290

BUSHING; CONT SHAFT,GOV COVER

198508-

1шт.

87

9019006160

BOLT; RETURN SPRING,GOV

198508-

1шт.

90

9813251770

SCREW; FULL LOAD ADJ,GOV

198508-

1шт.

91

1157232840

SPRING CAPSULE; ADJ,GOV

198508-

1шт.

093(A)

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

198508-

1шт.

093(C)

1157790400

NUT; ADJ SCREW LK,INJ PUMP GOV

198508-

1шт.

093(D)

1157795080

NUT; ADJ SCREW LK,INJ PUMP GOV

198508-

1шт.

093(E)

5157292090

NUT; ADJ SCREW LK,INJ PUMP GOV

198508-

1шт.

094(A)

1157795020

SCREW; ADJ,CONT LEVER,GOV

198508-200311

1шт.

094(A)

1157795020

SCREW; ADJ,CONT LEVER,GOV

200312-

1шт.

094(B)

8971796710

SCREW; ADJ,CONT LEVER,GOV

200309-

1шт.

96

5157290530

PLUG; LEVER SHAFT,GOV

198508-

2шт.

099(A)

9813250620

PIN; TENSION LEVER,GOV

198508-

1шт.

101

8941445880

GASKET; ADJ SPRING CAPSULE,GOV

198508-

2шт.

103

1157290920

NUT; CAP,ADJ SPRING CAPSULE,GOV

198508-

1шт.

104(A)

8971796700

CAP; LOCK NUT,ADJ SCREW

198508-

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

198508-

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

198508-

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

198508-

1шт.

109(A)

1157290990

SHIM; SWIVEL LEVER,GOV

198508-

1шт.

109(B)

9813251730

SHIM; SWIVEL LEVER,GOV

198508-

110

1157795760

SEAL; OIL,SWIVEL LEVER,GOV

198508-

1шт.

111(A)

8972330850

BUSHING; SWIVEL LEVER,GOV

198508-

1шт.

111(B)

8972330860

BUSHING; SWIVEL LEVER,GOV

198508-

1шт.

112

1157795730

GASKET; SWIVEL LEVER,GOV

198508-

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

198508-

2шт.

125

9813252100

CAP; STOP LEVER SPRING,GOV

198508-

1шт.

150(B)

9813150650

ADAPTER; GOV HSG,INJ PUMP

198508-

1шт.

151

9019008180

BOLT; ADAPTER,GOV HSG,INJ PUMP

198508-

1шт.

154

1157795620

BOLT; GOV HSG

198508-

1шт.

156

1835794920

WASHER; GOV HSG

198508-

1шт.

157

5157290710

BOLT; START SPRING PLATE,GOV

198508-

1шт.

160

1157290150

GASKET; PLUG TO HSG

198508-

1шт.

161

1157290380

PLUG; HSG

198508-

1шт.

196(A)

1157796950

BRACKET; COVER

198508-200103

1шт.

196(A)

1157791910

BRACKET; COVER

200104-

1шт.

253

1157296360

LIMITTER; GOV CONT

198508-

1шт.

429

5157290990

GASKET; CAP NUT

198508-

2шт.

430(B)

1157795640

CAP NUT; ADJ LEVER

198508-

1шт.

474

1157795670

ADAPTER; GOVERNOR,INJ PUMP

198508-

1шт.
