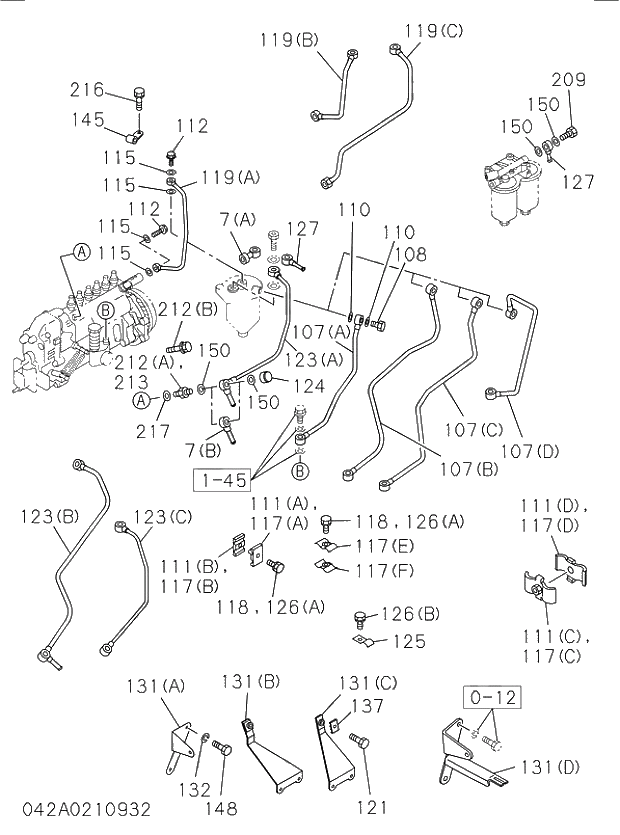

Запчасти Isuzu 042 FUEL PUMP AND PIPE. 042 FUEL PUMP AND PIPE.

107(A)

1154158440

PIPE; FUEL,FEED PUMP TO FUEL FILTER

198508-

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

198508-200110

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

200111-

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

111(A)

5097091030

CLIP; FUEL PIPE

198508-

1шт.

111(B)

5097091040

CLIP; FUEL PIPE

198508-

1шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

198508-200207

1шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

200208-

2шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

199911-

4шт.

117(A)

5097091030

CLIP; FUEL PIPE

199612-

1шт.

117(B)

5097091040

CLIP; FUEL PIPE

199612-

1шт.

118

500406300

BOLT; CLIP,FUEL PIPE

A 198508-200512

1шт.

118

505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

119(A)

1154158450

PIPE; FUEL,FUEL FILTER TO INJ PUMP

198508-

1шт.

123(A)

1154165380

PIPE; FUEL,FUEL FILTER LEAK OFF

199907-200201

1шт.

123(A)

1154165380

PIPE; FUEL,FUEL FILTER LEAK OFF

200202-

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

198508-

1шт.

126(A)

500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

126(A)

505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

131(A)

5154190010

BRACKET; FUEL PIPE CLIP

200101-200203

1шт.

131(A)

5154190010

BRACKET; FUEL PIPE CLIP

200204-

1шт.

145

9095245550

CLIP; FUEL PIPE

198508-

1шт.

148

286810200

BOLT; BRKT

200101-200203

2шт.

148

286810200

BOLT; BRKT

200204-200512

2шт.

148

286510200

BOLT; BRKT

200601-

2шт.

150

1096300850

GASKET; FUEL PIPE

198508-

6шт.

209

1096750860

BOLT; EYE,FUEL FILTER

198508-

2шт.

212(A)

1132600011

VALVE; OVERFLOW

198508-

1шт.

216

500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

216

505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

217

1096300850

GASKET; OVERFLOW VLV

198508-

2шт.

107(A)

1154158440

PIPE; FUEL,FEED PUMP TO FUEL FILTER

198508-

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

198508-200110

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

200111-

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

111(A)

5097091030

CLIP; FUEL PIPE

198508-

1шт.

111(B)

5097091040

CLIP; FUEL PIPE

198508-

1шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

198508-200207

1шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

200208-

2шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

199911-

4шт.

117(A)

5097091030

CLIP; FUEL PIPE

199612-

1шт.

117(B)

5097091040

CLIP; FUEL PIPE

199612-

1шт.

118

500406300

BOLT; CLIP,FUEL PIPE

A 198508-200512

1шт.

118

505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

119(A)

1154158450

PIPE; FUEL,FUEL FILTER TO INJ PUMP

198508-

1шт.

123(A)

1154165380

PIPE; FUEL,FUEL FILTER LEAK OFF

199907-200201

1шт.

123(A)

1154165380

PIPE; FUEL,FUEL FILTER LEAK OFF

200202-

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

198508-

1шт.

126(A)

500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

126(A)

505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

131(A)

5154190010

BRACKET; FUEL PIPE CLIP

200101-200203

1шт.

131(A)

5154190010

BRACKET; FUEL PIPE CLIP

200204-

1шт.

145

9095245550

CLIP; FUEL PIPE

198508-

1шт.

148

286810200

BOLT; BRKT

200101-200203

2шт.

148

286810200

BOLT; BRKT

200204-200512

2шт.

148

286510200

BOLT; BRKT

200601-

2шт.

150

1096300850

GASKET; FUEL PIPE

198508-

6шт.

209

1096750860

BOLT; EYE,FUEL FILTER

198508-

2шт.

212(A)

1132600011

VALVE; OVERFLOW

198508-

1шт.

216

500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

216

505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

217

1096300850

GASKET; OVERFLOW VLV

198508-

2шт.
