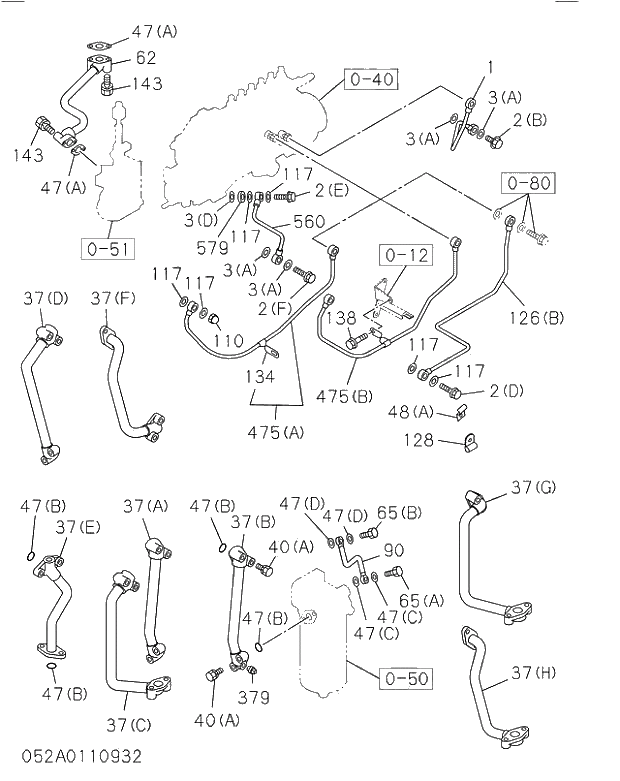

Справочник запчастей Isuzu 052 OIL AND VACUUM PIPING; ENGINE 052 OIL AND VACUUM PIPING; ENGINE со схемами

002(B)

1096750810

BOLT; EYE,OIL PIPE

198508-

1шт.

002(C)

8941077132

BOLT; EYE,OIL PIPE

198508-

1шт.

002(D)

1096750770

BOLT; EYE,OIL PIPE

198508-200701

2шт.

002(D)

8973722380

BOLT; EYE,OIL PIPE

200702-

2шт.

003(A)

1096300840

GASKET; EYE BOLT,OIL PIPE

198508-

2шт.

003(C)

9095714100

GASKET; EYE BOLT,OIL PIPE

198508-

2шт.

037(A)

1133135650

PIPE; OIL,FILTER TO COOLER

198508-

1шт.

040(A)

0286808400

BOLT; OIL PIPE

199708-200512

4шт.

040(A)

0286508400

BOLT; OIL PIPE

200601-

4шт.

040(B)

0280808500

BOLT; OIL PIPE

199708-200512

2шт.

040(B)

0280508500

BOLT; OIL PIPE

200601-

2шт.

040(D)

0287810250

BOLT; OIL PIPE

199708-200512

2шт.

040(D)

0287510250

BOLT; OIL PIPE

200601-

2шт.

044

0500408160

BOLT; CLIP,OIL PIPE

198508-199707

1шт.

044

0280808120

BOLT; CLIP,OIL PIPE

199708-200512

1шт.

044

0280508120

BOLT; CLIP,OIL PIPE

200601-

1шт.

047(A)

9099211880

GASKET; OIL PIPE

198508-

2шт.

047(B)

1096234620

GASKET; OIL PIPE

198508-

2шт.

047(C)

1096300850

GASKET; OIL PIPE

198508-

2шт.

047(D)

1096300840

GASKET; OIL PIPE

198508-

2шт.

048(D)

5097040541

CLIP; OIL PIPE

198508-

1шт.

062

1133115322

PIPE; OIL,PUMP TO C/BL

198508-

1шт.

063(B)

1133135181

PIPE; OIL,TURBOCHARGER FEED

198508-

1шт.

065(A)

1096750860

BOLT; JOINT,OIL PIPE

198508-

1шт.

065(B)

1096750810

BOLT; JOINT,OIL PIPE

198508-

1шт.

090

1133129710

PIPE ASM; OIL,C/BL TO FILTER

198508-

1шт.

117

1096300830

GASKET; JOINT,OIL PIPE

198508-

4шт.

126(A)

1133135660

PIPE; OIL,FILTER TO PUMP

198508-199704

1шт.

126(A)

1133136611

PIPE; OIL,FILTER TO PUMP

199705-

1шт.

128

9099175111

CLIP; OIL PIPE,FILTER TO PUMP

199705-

1шт.

138

0500410200

BOLT; CLIP FIX

A 198508-199707

1шт.

138

0286810200

BOLT; CLIP FIX

199708-200512

1шт.

138

0286510200

BOLT; CLIP FIX

200601-

1шт.

143

0280808400

BOLT; OIL PIPE,OIL PUMP TO C/BL

199708-200002

4шт.

143

0500408400

BOLT; OIL PIPE,OIL PUMP TO C/BL

200003-200512

4шт.

143

0505408400

BOLT; OIL PIPE,OIL PUMP TO C/BL

200601-

4шт.

147

1096370582

GASKET; OIL PIPE TO TURBOCHARGER

198508-

1шт.

149(B)

1133136121

PIPE; OIL RETURN,TURBOCHARGER

198508-

1шт.

150

1096370601

GASKET; OIL PIPE TO C/BL

198508-200005

1шт.

150

8943706630

GASKET; OIL PIPE TO C/BL

200006-

1шт.

002(B)

1096750810

BOLT; EYE,OIL PIPE

198508-

1шт.

002(C)

8941077132

BOLT; EYE,OIL PIPE

198508-

1шт.

002(D)

1096750770

BOLT; EYE,OIL PIPE

198508-200701

2шт.

002(D)

8973722380

BOLT; EYE,OIL PIPE

200702-

2шт.

003(A)

1096300840

GASKET; EYE BOLT,OIL PIPE

198508-

2шт.

003(C)

9095714100

GASKET; EYE BOLT,OIL PIPE

198508-

2шт.

037(A)

1133135650

PIPE; OIL,FILTER TO COOLER

198508-

1шт.

040(A)

0286808400

BOLT; OIL PIPE

199708-200512

4шт.

040(A)

0286508400

BOLT; OIL PIPE

200601-

4шт.

040(B)

0280808500

BOLT; OIL PIPE

199708-200512

2шт.

040(B)

0280508500

BOLT; OIL PIPE

200601-

2шт.

040(D)

0287810250

BOLT; OIL PIPE

199708-200512

2шт.

040(D)

0287510250

BOLT; OIL PIPE

200601-

2шт.

044

0500408160

BOLT; CLIP,OIL PIPE

198508-199707

1шт.

044

0280808120

BOLT; CLIP,OIL PIPE

199708-200512

1шт.

044

0280508120

BOLT; CLIP,OIL PIPE

200601-

1шт.

047(A)

9099211880

GASKET; OIL PIPE

198508-

2шт.

047(B)

1096234620

GASKET; OIL PIPE

198508-

2шт.

047(C)

1096300850

GASKET; OIL PIPE

198508-

2шт.

047(D)

1096300840

GASKET; OIL PIPE

198508-

2шт.

048(D)

5097040541

CLIP; OIL PIPE

198508-

1шт.

062

1133115322

PIPE; OIL,PUMP TO C/BL

198508-

1шт.

063(B)

1133135181

PIPE; OIL,TURBOCHARGER FEED

198508-

1шт.

065(A)

1096750860

BOLT; JOINT,OIL PIPE

198508-

1шт.

065(B)

1096750810

BOLT; JOINT,OIL PIPE

198508-

1шт.

090

1133129710

PIPE ASM; OIL,C/BL TO FILTER

198508-

1шт.

117

1096300830

GASKET; JOINT,OIL PIPE

198508-

4шт.

126(A)

1133135660

PIPE; OIL,FILTER TO PUMP

198508-199704

1шт.

126(A)

1133136611

PIPE; OIL,FILTER TO PUMP

199705-

1шт.

128

9099175111

CLIP; OIL PIPE,FILTER TO PUMP

199705-

1шт.

138

0500410200

BOLT; CLIP FIX

A 198508-199707

1шт.

138

0286810200

BOLT; CLIP FIX

199708-200512

1шт.

138

0286510200

BOLT; CLIP FIX

200601-

1шт.

143

0280808400

BOLT; OIL PIPE,OIL PUMP TO C/BL

199708-200002

4шт.

143

0500408400

BOLT; OIL PIPE,OIL PUMP TO C/BL

200003-200512

4шт.

143

0505408400

BOLT; OIL PIPE,OIL PUMP TO C/BL

200601-

4шт.

147

1096370582

GASKET; OIL PIPE TO TURBOCHARGER

198508-

1шт.

149(B)

1133136121

PIPE; OIL RETURN,TURBOCHARGER

198508-

1шт.

150

1096370601

GASKET; OIL PIPE TO C/BL

198508-200005

1шт.

150

8943706630

GASKET; OIL PIPE TO C/BL

200006-

1шт.

Запчасти Isuzu 052 OIL AND VACUUM PIPING; ENGINE 052 OIL AND VACUUM PIPING; ENGINE
