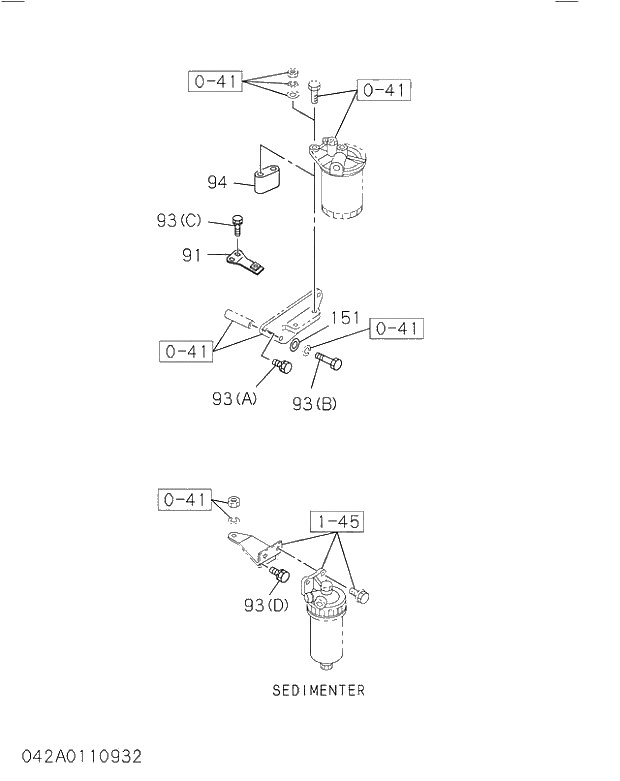

Запчасти Isuzu 042 FUEL PUMP AND PIPE 042 FUEL PUMP AND PIPE

107(A)

1154158440

PIPE; FUEL,FEED PUMP TO FUEL FILTER

198508-

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

198508-

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

111(A)

5097091030

CLIP; FUEL PIPE

198508-

1шт.

111(B)

5097091040

CLIP; FUEL PIPE

198508-

1шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

198508-

1шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

118

0500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

118

0505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

119(A)

1154158450

PIPE; FUEL,FUEL FILTER TO INJ PUMP

198508-

1шт.

123(A)

1154158460

PIPE; FUEL,FUEL FILTER LEAK OFF

198508-

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

198508-

1шт.

126(A)

0500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

126(A)

0505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

145

9095245550

CLIP; FUEL PIPE

198508-

1шт.

150

1096300850

GASKET; FUEL PIPE

198508-

2шт.

150

1096300850

GASKET; FUEL PIPE

198508-

4шт.

209

1096750860

BOLT; EYE,FUEL FILTER

198508-

2шт.

212(A)

1132600011

VALVE; OVERFLOW

198508-

1шт.

216

0500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

216

0505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

217

1096300850

GASKET; OVERFLOW VLV

198508-

1шт.

107(A)

1154158440

PIPE; FUEL,FEED PUMP TO FUEL FILTER

198508-

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

198508-

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

111(A)

5097091030

CLIP; FUEL PIPE

198508-

1шт.

111(B)

5097091040

CLIP; FUEL PIPE

198508-

1шт.

112

1096750860

BOLT; JOINT,FUEL FILTER

198508-

1шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

198508-

2шт.

118

0500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

118

0505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

119(A)

1154158450

PIPE; FUEL,FUEL FILTER TO INJ PUMP

198508-

1шт.

123(A)

1154158460

PIPE; FUEL,FUEL FILTER LEAK OFF

198508-

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

198508-

1шт.

126(A)

0500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

126(A)

0505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

145

9095245550

CLIP; FUEL PIPE

198508-

1шт.

150

1096300850

GASKET; FUEL PIPE

198508-

2шт.

150

1096300850

GASKET; FUEL PIPE

198508-

4шт.

209

1096750860

BOLT; EYE,FUEL FILTER

198508-

2шт.

212(A)

1132600011

VALVE; OVERFLOW

198508-

1шт.

216

0500406300

BOLT; CLIP,FUEL PIPE

198508-200512

1шт.

216

0505406300

BOLT; CLIP,FUEL PIPE

200601-

1шт.

217

1096300850

GASKET; OVERFLOW VLV

198508-

1шт.
