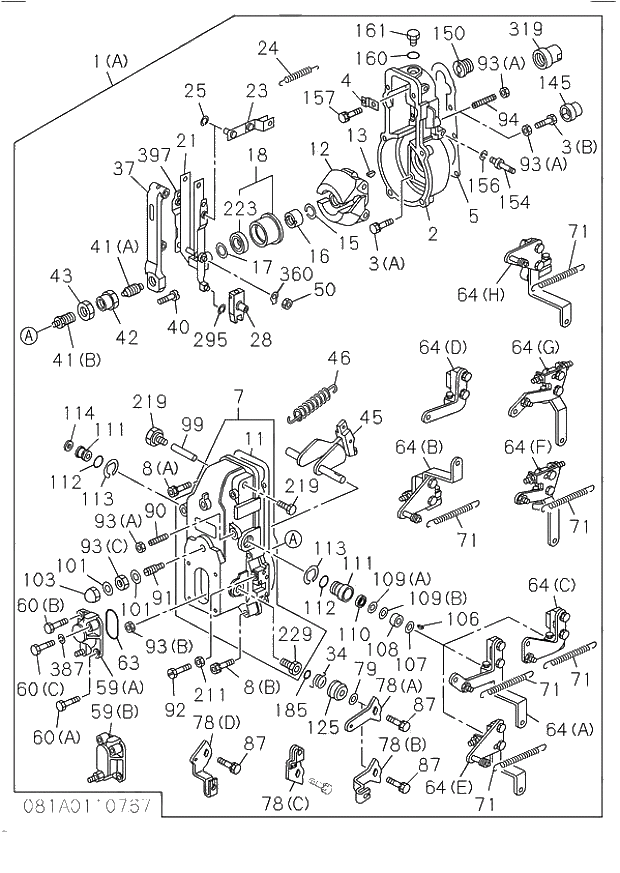

Справочник запчастей Isuzu 081 GOVERNOR INJECTION PUMP. 081 GOVERNOR INJECTION PUMP. со схемами

1

1157705330

GOVERNOR ASM; INJ PUMP

199211 -

1шт.

2

5157210040

HOUSING; GOV,INJ PUMP

199211 -

1шт.

3

5157290270

BOLT; GOV HSG,INJ PUMP

199211 -

6шт.

4

8913253970

PLATE; START SPRING,GOV

199211 -

1шт.

5

5157290010

GASKET; GOV TO INJ PUMP HSG

199211 -

1шт.

5

5157290001

GASKET; GOV TO INJ PUMP HSG

199211 -

1шт.

7

5157210200

COVER; GOV HSG,INJ PUMP

199211 -

1шт.

8

5157290330

BOLT; GOV COVER,INJ PUMP

199211 -

4шт.

8

5157290540

BOLT; GOV COVER,INJ PUMP

199211 -

2шт.

11

1157290020

GASKET; COVER TO HSG,GOV

199211 -

1шт.

12

5157220080

FLYWEIGHT ASM; GOV

199211 -

1шт.

13

5196190490

KEY; FLYWEIGHT,GOV

199211 -

1шт.

15

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

199211 -

1шт.

16

9813250860

NUT; FLYWEIGHT FIX,GOV

199211 -

1шт.

17

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

17

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

199211 -

18

5157190080

SLEEVE; GOV

199211 -

1шт.

21

5157250570

LEVER ASM; GUIDE,GOV

199211 -

1шт.

23

1157250110

LINK; LEVER TO CONT RACK,GOV

199211 -

1шт.

24

9813222350

SPRING; START,GOV,INJ PUMP

199211 -

1шт.

25

9091854040

RING; SNAP

199211 -

1шт.

28

5157250420

LEVER; SUPPORTING,GOV

199211 -

1шт.

34

1157232120

SPRING; SPD CONT LEVER,GOV

199211 -

1шт.

34

5157232120

SPRING; SPD CONT LEVER,GOV

199211 - 199211

1шт.

37

5157250170

LEVER ASM; TENSION,GOV

199211 -

1шт.

40

9813251820

SCREW; LEVER ADJ,GOV

199211 -

1шт.

41

1157231860

SPRING CAPSULE; IDLE CONT,GOV

199211 -

1шт.

41

1157231030

SPRING CAPSULE; IDLE CONT,GOV

199211 -

1шт.

43

9008130230

NUT; IDLING CONT SPRING,GOV

199211 -

1шт.

45

8970242380

LEVER ASM; GOV,INJ PUMP

199211 -

1шт.

46

1157231460

SPRING; GOV,INJ PUMP

199211 -

1шт.

59

5157210210

COVER; GOV COVER

199211 -

1шт.

60

9019006160

BOLT; COVER FIX,GOV COVER

199211 -

1шт.

60

9019006160

BOLT; COVER FIX,GOV COVER

199211 -

2шт.

60

5157291240

BOLT; COVER FIX,GOV COVER

199211 -

1шт.

63

9813919070

GASKET; COVER TO GOV COVER

199211 -

1шт.

64

1157257470

LEVER; LOAD CONT,GOV

199211 -

1шт.

71

1157230280

SPRING; CONT LEVER,GOV

199211 -

1шт.

78

1157254890

LEVER; STOPPER,GOV

199211 - 199211

1шт.

78

1157256690

LEVER; STOPPER,GOV

199211 -

1шт.

79

1157292980

SHIM; LEVER SETTING,GOV

199211 -

79

1157292970

SHIM; LEVER SETTING,GOV

199211 -

79

1157292960

SHIM; LEVER SETTING,GOV

199211 -

79

1157292950

SHIM; LEVER SETTING,GOV

199211 -

79

1157292990

SHIM; LEVER SETTING,GOV

199211 -

79

1157292940

SHIM; LEVER SETTING,GOV

199211 -

87

9019006160

BOLT; RETURN SPRING,GOV

199211 -

1шт.

90

9813251770

SCREW; FULL LOAD ADJ,GOV

199211 -

1шт.

91

1157232840

SPRING CAPSULE; ADJ,GOV

199211 -

1шт.

92

5157291020

BOLT; FULL LOAD STOPPER,GOV

199211 -

1шт.

93

9813261120

NUT; ADJ SCREW LK,INJ PUMP GOV

199211 -

1шт.

93

5157292090

NUT; ADJ SCREW LK,INJ PUMP GOV

199211 -

1шт.

93

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

199211 -

2шт.

94

1157297610

SCREW; ADJ,CONT LEVER,GOV

199211 -

1шт.

94

9844100270

SCREW; ADJ,CONT LEVER,GOV

199211 -

1шт.

96

5157290530

PLUG; LEVER SHAFT,GOV

199211 -

2шт.

99

9813250620

PIN; TENSION LEVER,GOV

199211 -

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

199211 -

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

199211 -

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

199211 -

1шт.

109

9813250970

SHIM; SWIVEL LEVER,GOV

199211 -

109

1157290990

SHIM; SWIVEL LEVER,GOV

199211 -

1шт.

110

1157290980

SEAL; OIL,SWIVEL LEVER,GOV

199211 -

1шт.

111

8970242390

BUSHING; SWIVEL LEVER,GOV

199211 -

1шт.

111

8970242400

BUSHING; SWIVEL LEVER,GOV

199211 -

1шт.

112

9813212050

GASKET; SWIVEL LEVER,GOV

199211 -

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

199211 -

2шт.

145

9813252100

CAP; GOV COVER,INJ PUMP

199211 -

1шт.

150

9813150650

ADAPTER; GOV HSG,INJ PUMP

199211 -

1шт.

154

5157291120

BOLT; GOV HSG

199211 -

1шт.

154

1157791920

BOLT; GOV HSG

199211 - 199211

1шт.

154

8971385340

BOLT; GOV HSG

199211 - 199211

1шт.

156

1835794920

WASHER; GOV HSG

199211 -

1шт.

157

9019008180

BOLT; START SPRING PLATE,GOV

199211 -

1шт.

160

1157290150

GASKET; PLUG TO HSG

199211 -

1шт.

161

1157290380

PLUG; HSG

199211 -

1шт.

185

9813919060

GASKET; BUSHING,GOV COVER

199211 -

1шт.

211

9884100270

NUT; LOCK,GOV

199211 -

1шт.

219

5157290530

PLUG; GOV

199211 -

2шт.

223

9000902290

BEARING; SLEEVE

199211 -

1шт.

229

9813254290

BUSHING; GOV LEVER

199211 -

1шт.

253

9813350340

LIMITTER; GOV CONT

199211 -

1шт.

319

9813254350

CAP; CONT RACK,GOV,ELEC

199211 -

1шт.

387

9091505060

WASHER; COVER

199211 -

1шт.
