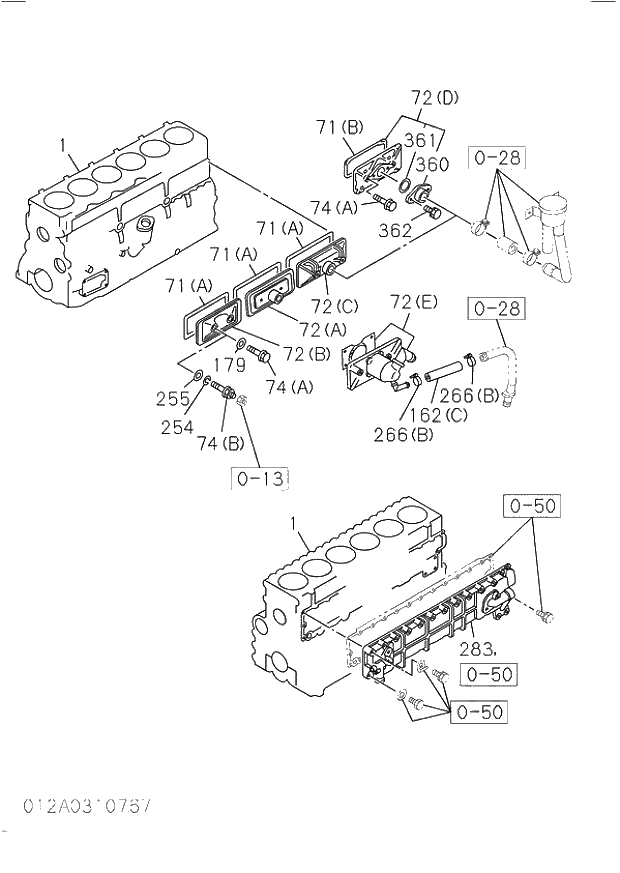

Справочник запчастей Isuzu 012 CYLINDER BLOCK. 012 CYLINDER BLOCK. со схемами

1

1112104423

BLOCK ASM; CYL

199211 -

1шт.

2

1878115490

LINER SET; ENG CYL

199211 -

6шт.

2

1878115500

LINER SET; ENG CYL

199211 -

6шт.

2

1878115510

LINER SET; ENG CYL

199211 -

6шт.

2

1878115520

LINER SET; ENG CYL

199211 -

6шт.

4

1112612400

LINER; C/BL

199211 -

6шт.

4

1112612410

LINER; C/BL

199211 -

6шт.

4

1112612420

LINER; C/BL

199211 -

6шт.

4

1112612430

LINER; C/BL

199211 -

6шт.

4

1112612440

LINER; C/BL

199211 -

6шт.

4

1112612450

LINER; C/BL

199211 -

6шт.

4

1112612460

LINER; C/BL

199211 -

6шт.

4

1112612470

LINER; C/BL

199211 -

6шт.

8

1090004691

BOLT; BRG CAP

199211 -

14шт.

12

1096660360

CONNECTOR; DRAIN COCK,WATER

199211 -

1шт.

30

8941480790

PIN; CYL HD GASKET SETTING

199211 -

2шт.

34

8970233390

VALVE; OIL RELIEF

199211 -

1шт.

35

5096230350

GASKET; RELIEF VLV

199211 -

1шт.

37

1096050681

PLUG; OIL GALLERY

199211 -

2шт.

38

1097400780

PIN; TIMING GEAR CASE

199211 -

1шт.

55(A)

1096050660

PLUG; OIL GALLERY

199211 -

1шт.

56

1133421100

JET; OIL,PISTON COOLING

199211 -

6шт.

64

1096601010

CONNECTOR; TURBOCHARGER OIL FEED

199211 -

1шт.

70

1096000520

CUP; SEALING,FRT & RR

199211 -

2шт.

71(A)

8943673681

GASKET; COVER TO C/BL

199309 -

3шт.

71(A)

8943673681

GASKET; COVER TO C/BL

199211 - 199308

3шт.

72(B)

8970285250

COVER; TAPPET CHAMBER

199309 - 200012

2шт.

72(B)

8972221041

COVER; TAPPET CHAMBER

200101 -

2шт.

72(B)

8970285250

COVER; TAPPET CHAMBER

199211 - 199308

2шт.

72(C)

5112901451

COVER; TAPPET CHAMBER

199211 - 200012

1шт.

72(C)

1112902541

COVER; TAPPET CHAMBER

200101 -

1шт.

74(A)

1090520221

BOLT; COVER TO C/BL

199211 -

2шт.

74(A)

8943675301

BOLT; COVER TO C/BL

199211 -

4шт.

76

1096234650

GASKET; COVER TO C/BL

199211 -

1шт.

77

501408220

BOLT; COVER TO C/BL

199211 -

2шт.

80

1096000121

CUP; SEALING,TAPPET CHAMBER

199211 -

3шт.

82

5093000231

STUD; FLYWHEEL HSG

199211 -

1шт.

83

9081510180

PIN; FLYWHEEL HSG

199211 -

2шт.

113

5112190140

CUP; SEALING

199211 -

2шт.

130

5112570011

DOWEL; BRG CAP

199211 -

1шт.

132

1131610120

VALVE; CHECK,OIL

199211 -

6шт.

135

1112191291

COVER; OIL PUMP

199211 -

1шт.

136

9112246021

BUSHING; DRIVE SHAFT,OIL PUMP

199211 -

1шт.

137(A)

1096800240

COCK; DRAIN,WATER

199211 -

1шт.

162(A)

9099147010

HOSE; WATER DRAIN,C/BL

199211 -

1шт.

179

9095720080

GASKET; COVER TO BOLT

199211 -

6шт.

218(A)

9095714140

GASKET; PLUG,C/BL SIDE

199211 - 199803

1шт.

218(A)

9095720140

GASKET; PLUG,C/BL SIDE

199804 -

1шт.

220

9098600190

PLUG; PLATE,CM/SHF,RR

199211 -

1шт.

236

1093000530

STUD; ENG FOOT

199211 -

1шт.

267

8970157541

CLIP; DRAIN HOSE

199211 -

1шт.

269

1096301150

GASKET; NIPPLE,C/BL

199211 -

1шт.

335(A)

5096050180

PLUG; C/BL,SIDE

199211 -

12шт.

335(D)

9992023140

PLUG; C/BL,SIDE

199211 -

1шт.

1

1112104423

BLOCK ASM; CYL

199211 -

1шт.

2

1878115490

LINER SET; ENG CYL

199211 -

6шт.

2

1878115500

LINER SET; ENG CYL

199211 -

6шт.

2

1878115510

LINER SET; ENG CYL

199211 -

6шт.

2

1878115520

LINER SET; ENG CYL

199211 -

6шт.

4

1112612400

LINER; C/BL

199211 -

6шт.

4

1112612410

LINER; C/BL

199211 -

6шт.

4

1112612420

LINER; C/BL

199211 -

6шт.

4

1112612430

LINER; C/BL

199211 -

6шт.

4

1112612440

LINER; C/BL

199211 -

6шт.

4

1112612450

LINER; C/BL

199211 -

6шт.

4

1112612460

LINER; C/BL

199211 -

6шт.

4

1112612470

LINER; C/BL

199211 -

6шт.

8

1090004691

BOLT; BRG CAP

199211 -

14шт.

12

1096660360

CONNECTOR; DRAIN COCK,WATER

199211 -

1шт.

30

8941480790

PIN; CYL HD GASKET SETTING

199211 -

2шт.

34

8970233390

VALVE; OIL RELIEF

199211 -

1шт.

35

5096230350

GASKET; RELIEF VLV

199211 -

1шт.

37

1096050681

PLUG; OIL GALLERY

199211 -

2шт.

38

1097400780

PIN; TIMING GEAR CASE

199211 -

1шт.

55(A)

1096050660

PLUG; OIL GALLERY

199211 -

1шт.

56

1133421100

JET; OIL,PISTON COOLING

199211 -

6шт.

64

1096601010

CONNECTOR; TURBOCHARGER OIL FEED

199211 -

1шт.

70

1096000520

CUP; SEALING,FRT & RR

199211 -

2шт.

71(A)

8943673681

GASKET; COVER TO C/BL

199309 -

3шт.

71(A)

8943673681

GASKET; COVER TO C/BL

199211 - 199308

3шт.

72(B)

8970285250

COVER; TAPPET CHAMBER

199309 - 200012

2шт.

72(B)

8972221041

COVER; TAPPET CHAMBER

200101 -

2шт.

72(B)

8970285250

COVER; TAPPET CHAMBER

199211 - 199308

2шт.

72(C)

5112901451

COVER; TAPPET CHAMBER

199211 - 200012

1шт.

72(C)

1112902541

COVER; TAPPET CHAMBER

200101 -

1шт.

74(A)

1090520221

BOLT; COVER TO C/BL

199211 -

2шт.

74(A)

8943675301

BOLT; COVER TO C/BL

199211 -

4шт.

76

1096234650

GASKET; COVER TO C/BL

199211 -

1шт.

77

501408220

BOLT; COVER TO C/BL

199211 -

2шт.

80

1096000121

CUP; SEALING,TAPPET CHAMBER

199211 -

3шт.

82

5093000231

STUD; FLYWHEEL HSG

199211 -

1шт.

83

9081510180

PIN; FLYWHEEL HSG

199211 -

2шт.

113

5112190140

CUP; SEALING

199211 -

2шт.

130

5112570011

DOWEL; BRG CAP

199211 -

1шт.

132

1131610120

VALVE; CHECK,OIL

199211 -

6шт.

135

1112191291

COVER; OIL PUMP

199211 -

1шт.

136

9112246021

BUSHING; DRIVE SHAFT,OIL PUMP

199211 -

1шт.

137(A)

1096800240

COCK; DRAIN,WATER

199211 -

1шт.

162(A)

9099147010

HOSE; WATER DRAIN,C/BL

199211 -

1шт.

179

9095720080

GASKET; COVER TO BOLT

199211 -

6шт.

218(A)

9095714140

GASKET; PLUG,C/BL SIDE

199211 - 199803

1шт.

218(A)

9095720140

GASKET; PLUG,C/BL SIDE

199804 -

1шт.

220

9098600190

PLUG; PLATE,CM/SHF,RR

199211 -

1шт.

236

1093000530

STUD; ENG FOOT

199211 -

1шт.

267

8970157541

CLIP; DRAIN HOSE

199211 -

1шт.

269

1096301150

GASKET; NIPPLE,C/BL

199211 -

1шт.

335(A)

5096050180

PLUG; C/BL,SIDE

199211 -

12шт.

335(D)

9992023140

PLUG; C/BL,SIDE

199211 -

1шт.

Запчасти Isuzu 012 CYLINDER BLOCK. 012 CYLINDER BLOCK.
