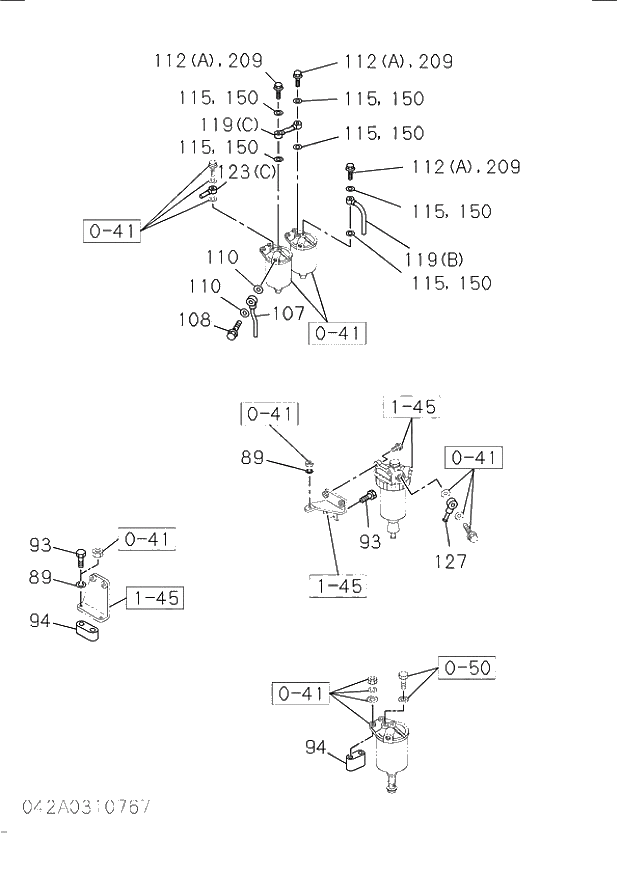

Запчасти Isuzu 042 FUEL PUMP AND PIPE. 042 FUEL PUMP AND PIPE.

89

9091505100

WASHER; LK,BRKT

199211 -

2шт.

107

1154146870

PIPE; FUEL,FEED PUMP TO FUEL FILTER

199211 -

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

199211 -

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

199211 -

2шт.

111(A)

1097007590

CLIP; FUEL PIPE

199211 -

1шт.

111(B)

1097007600

CLIP; FUEL PIPE

199211 -

1шт.

112(A)

1096750860

BOLT; JOINT,FUEL FILTER

199211 -

3шт.

112(A)

1096750860

BOLT; JOINT,FUEL FILTER

199211 -

1шт.

112(B)

1096750630

BOLT; JOINT,FUEL FILTER

199211 -

1шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

199211 -

2шт.

117(A)

1097007590

CLIP; FUEL PIPE

199211 -

1шт.

117(B)

1097007600

CLIP; FUEL PIPE

199211 -

1шт.

119(B)

1154146880

PIPE; FUEL,FUEL FILTER TO INJ PUMP

199211 -

1шт.

123(A)

1154148040

PIPE; FUEL,FUEL FILTER LEAK OFF

199211 -

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

199211 -

1шт.

125(A)

1097007590

CLIP; FUEL PIPE

199211 -

1шт.

125(B)

1097007600

CLIP; FUEL PIPE

199211 -

1шт.

126

0500406300

BOLT; CLIP,FUEL PIPE

199211 -

1шт.

145(A)

9095245550

CLIP; FUEL PIPE

199211 -

1шт.

150

1096300850

GASKET; FUEL PIPE

199211 -

2шт.

150

1096300850

GASKET; FUEL PIPE

199211 -

4шт.

209

1096750860

BOLT; EYE,FUEL FILTER

199211 -

2шт.

212(A)

1132600011

VALVE; OVERFLOW

199211 -

1шт.

216

0500406300

BOLT; CLIP,FUEL PIPE

199211 -

3шт.

216

0500406300

BOLT; CLIP,FUEL PIPE

199211 -

1шт.

217

1096300850

GASKET; OVERFLOW VLV

199211 -

1шт.

89

9091505100

WASHER; LK,BRKT

199211 -

2шт.

107

1154146870

PIPE; FUEL,FEED PUMP TO FUEL FILTER

199211 -

1шт.

108

1096750860

BOLT; JOINT,FUEL FILTER

199211 -

1шт.

110

1096300850

GASKET; JOINT BOLT,FUEL PIPE

199211 -

2шт.

111(A)

1097007590

CLIP; FUEL PIPE

199211 -

1шт.

111(B)

1097007600

CLIP; FUEL PIPE

199211 -

1шт.

112(A)

1096750860

BOLT; JOINT,FUEL FILTER

199211 -

3шт.

112(A)

1096750860

BOLT; JOINT,FUEL FILTER

199211 -

1шт.

112(B)

1096750630

BOLT; JOINT,FUEL FILTER

199211 -

1шт.

115

1096300850

GASKET; JOINT BOLT,FUEL PIPE

199211 -

2шт.

117(A)

1097007590

CLIP; FUEL PIPE

199211 -

1шт.

117(B)

1097007600

CLIP; FUEL PIPE

199211 -

1шт.

119(B)

1154146880

PIPE; FUEL,FUEL FILTER TO INJ PUMP

199211 -

1шт.

123(A)

1154148040

PIPE; FUEL,FUEL FILTER LEAK OFF

199211 -

1шт.

124

1094680021

NUT; CAP,FUEL PIPE

199211 -

1шт.

125(A)

1097007590

CLIP; FUEL PIPE

199211 -

1шт.

125(B)

1097007600

CLIP; FUEL PIPE

199211 -

1шт.

126

0500406300

BOLT; CLIP,FUEL PIPE

199211 -

1шт.

145(A)

9095245550

CLIP; FUEL PIPE

199211 -

1шт.

150

1096300850

GASKET; FUEL PIPE

199211 -

2шт.

150

1096300850

GASKET; FUEL PIPE

199211 -

4шт.

209

1096750860

BOLT; EYE,FUEL FILTER

199211 -

2шт.

212(A)

1132600011

VALVE; OVERFLOW

199211 -

1шт.

216

0500406300

BOLT; CLIP,FUEL PIPE

199211 -

3шт.

216

0500406300

BOLT; CLIP,FUEL PIPE

199211 -

1шт.

217

1096300850

GASKET; OVERFLOW VLV

199211 -

1шт.
