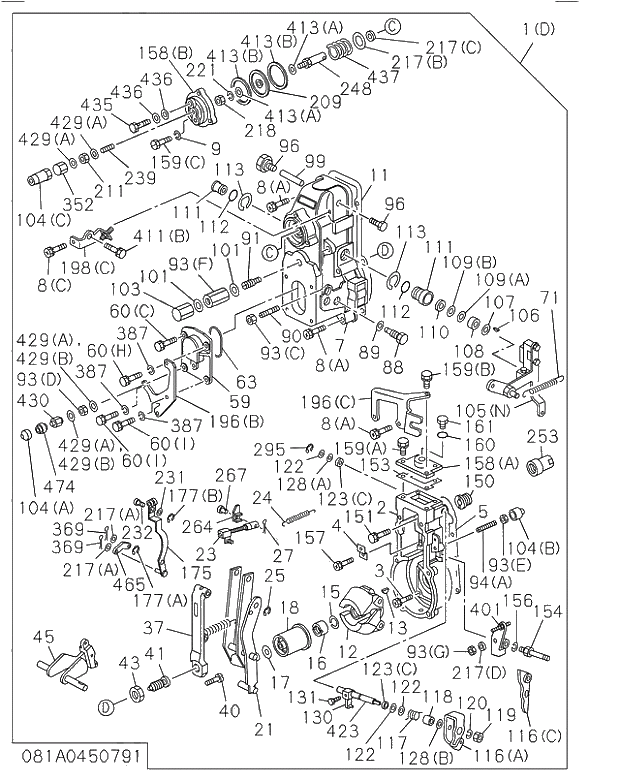

Справочник запчастей Isuzu 081 GOVERNOR; INJECTION PUMP 081 GOVERNOR; INJECTION PUMP со схемами

001(A)

8971319480

GOVERNOR ASM; INJ PUMP

198911-

1шт.

002

5157210040

HOUSING; GOV,INJ PUMP

198911-

1шт.

003

5157290270

BOLT; GOV HSG,INJ PUMP

198911-

6шт.

004

8913253970

PLATE; START SPRING,GOV

198911-

1шт.

005

1157790930

GASKET; GOV TO INJ PUMP HSG

198911-

1шт.

007

5157210200

COVER; GOV HSG,INJ PUMP

198911-

1шт.

008(A)

5157290330

BOLT; GOV COVER,INJ PUMP

198911-

4шт.

008(A)

5157290540

BOLT; GOV COVER,INJ PUMP

198911-

2шт.

011

1157790940

GASKET; COVER TO HSG,GOV

198911-

1шт.

012

5157220080

FLYWEIGHT ASM; GOV

198911-

1шт.

013

5196190490

KEY; FLYWEIGHT,GOV

198911-

1шт.

015

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

198911-

1шт.

016

9813250860

NUT; FLYWEIGHT FIX,GOV

198911-

1шт.

017

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

018

5157190080

SLEEVE; GOV

198911-

1шт.

021

5157250570

LEVER ASM; GUIDE,GOV

198911-

1шт.

023

1157250110

LINK; LEVER TO CONT RACK,GOV

198911-

1шт.

024

9813222350

SPRING; START,GOV,INJ PUMP

198911-

1шт.

025

9091854040

RING; SNAP

198911-

1шт.

028

5157250420

LEVER; SUPPORTING,GOV

198911-

1шт.

034

1157232120

SPRING; SPD CONT LEVER,GOV

198911-

1шт.

037

8970638230

LEVER ASM; TENSION,GOV

198911-

1шт.

040

9813251820

SCREW; LEVER ADJ,GOV

198911-

1шт.

041

1157292790

SPRING CAPSULE; IDLE CONT,GOV

198911-

1шт.

043

9008130230

NUT; IDLING CONT SPRING,GOV

198911-

1шт.

045

8970242380

LEVER ASM; GOV,INJ PUMP

198911-

1шт.

059

5157210260

COVER; GOV COVER

198911-

1шт.

060(A)

1157290690

BOLT; COVER FIX,GOV COVER

198911-

1шт.

060(B)

5157290630

BOLT; COVER FIX,GOV COVER

198911-

2шт.

060(C)

9019006160

BOLT; COVER FIX,GOV COVER

198911-

1шт.

063

9813919070

GASKET; COVER TO GOV COVER

198911-

1шт.

071

1157232230

SPRING; CONT LEVER,GOV

198911-

1шт.

079

1157292940

SHIM; LEVER SETTING,GOV

198911-

079

1157292950

SHIM; LEVER SETTING,GOV

198911-

079

1157292960

SHIM; LEVER SETTING,GOV

198911-

079

1157292970

SHIM; LEVER SETTING,GOV

198911-

079

1157292980

SHIM; LEVER SETTING,GOV

198911-

079

1157292990

SHIM; LEVER SETTING,GOV

198911-

083

9813919060

SEAL; OIL,CONT SHAFT,GOV

198911-

1шт.

086

9813254290

BUSHING; CONT SHAFT,GOV COVER

198911-

1шт.

087

9019006160

BOLT; RETURN SPRING,GOV

198911-

1шт.

090

9813251770

SCREW; FULL LOAD ADJ,GOV

198911-

1шт.

091

5157231240

SPRING CAPSULE; ADJ,GOV

198911-

1шт.

092

5157291020

BOLT; FULL LOAD STOPPER

198911-

1шт.

093(A)

1157296430

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

093(B)

1157296890

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

093(D)

9813261120

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

093(E)

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

094(B)

1157297610

SCREW; ADJ,CONT LEVER,GOV

198911-

1шт.

094(B)

1157790270

SCREW; ADJ,CONT LEVER,GOV

198911-

1шт.

096

5157290530

PLUG; LEVER SHAFT,GOV

198911-

2шт.

099

9813250620

PIN; TENSION LEVER,GOV

198911-

1шт.

101

8941445880

GASKET; ADJ SPRING CAPSULE,GOV

198911-

2шт.

103

1157290920

NUT; CAP,ADJ SPRING CAPSULE,GOV

198911-

1шт.

104(A)

8970850220

CAP; LOCK NUT,ADJ SCREW

198911-

1шт.

105(B)

1157256700

LEVER; SPD CONT,GOV

198911-

1шт.

105(G)

8970310630

LEVER; SPD CONT,GOV

198911-

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

198911-

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

198911-

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

198911-

1шт.

109(A)

1157290990

SHIM; SWIVEL LEVER,GOV

198911-

1шт.

109(B)

9813250970

SHIM; SWIVEL LEVER,GOV

198911-

1шт.

110

1157290980

SEAL; OIL,SWIVEL LEVER,GOV

198911-

1шт.

111

8970242390

BUSHING; SWIVEL LEVER,GOV

198911-

1шт.

111

8970242400

BUSHING; SWIVEL LEVER,GOV

198911-

1шт.

112

9813212050

GASKET; SWIVEL LEVER,GOV

198911-

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

198911-

2шт.

125

9813252100

CAP; STOP LEVER SPRING,GOV

198911-

1шт.

150

9813150650

ADAPTER; GOV HSG,INJ PUMP

198911-

1шт.

154

5157291120

BOLT; GOV HSG

198911-

1шт.

156

1835794920

WASHER; GOV HSG

198911-

1шт.

157

9019008180

BOLT; START SPRING PLATE,GOV

198911-

1шт.

160

1157290150

GASKET; PLUG TO HSG

198911-

1шт.

161

1157290380

PLUG; HSG

198911-

1шт.

253

9812350340

LIMITTER; GOV CONT

198911-

1шт.

387

9091505060

WASHER; COVER

198911-

1шт.

001(A)

8971319480

GOVERNOR ASM; INJ PUMP

198911-

1шт.

002

5157210040

HOUSING; GOV,INJ PUMP

198911-

1шт.

003

5157290270

BOLT; GOV HSG,INJ PUMP

198911-

6шт.

004

8913253970

PLATE; START SPRING,GOV

198911-

1шт.

005

1157790930

GASKET; GOV TO INJ PUMP HSG

198911-

1шт.

007

5157210200

COVER; GOV HSG,INJ PUMP

198911-

1шт.

008(A)

5157290330

BOLT; GOV COVER,INJ PUMP

198911-

4шт.

008(A)

5157290540

BOLT; GOV COVER,INJ PUMP

198911-

2шт.

011

1157790940

GASKET; COVER TO HSG,GOV

198911-

1шт.

012

5157220080

FLYWEIGHT ASM; GOV

198911-

1шт.

013

5196190490

KEY; FLYWEIGHT,GOV

198911-

1шт.

015

5157290340

WASHER; LK,FLYWEIGHT FIX,GOV

198911-

1шт.

016

9813250860

NUT; FLYWEIGHT FIX,GOV

198911-

1шт.

017

1157298910

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

1157298920

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

1157298930

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

5157292860

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

5157292870

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813250880

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813255510

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813255520

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

017

9813255530

SHIM; FLYWEIGHT SLEEVE,GOV

198911-

018

5157190080

SLEEVE; GOV

198911-

1шт.

021

5157250570

LEVER ASM; GUIDE,GOV

198911-

1шт.

023

1157250110

LINK; LEVER TO CONT RACK,GOV

198911-

1шт.

024

9813222350

SPRING; START,GOV,INJ PUMP

198911-

1шт.

025

9091854040

RING; SNAP

198911-

1шт.

028

5157250420

LEVER; SUPPORTING,GOV

198911-

1шт.

034

1157232120

SPRING; SPD CONT LEVER,GOV

198911-

1шт.

037

8970638230

LEVER ASM; TENSION,GOV

198911-

1шт.

040

9813251820

SCREW; LEVER ADJ,GOV

198911-

1шт.

041

1157292790

SPRING CAPSULE; IDLE CONT,GOV

198911-

1шт.

043

9008130230

NUT; IDLING CONT SPRING,GOV

198911-

1шт.

045

8970242380

LEVER ASM; GOV,INJ PUMP

198911-

1шт.

059

5157210260

COVER; GOV COVER

198911-

1шт.

060(A)

1157290690

BOLT; COVER FIX,GOV COVER

198911-

1шт.

060(B)

5157290630

BOLT; COVER FIX,GOV COVER

198911-

2шт.

060(C)

9019006160

BOLT; COVER FIX,GOV COVER

198911-

1шт.

063

9813919070

GASKET; COVER TO GOV COVER

198911-

1шт.

071

1157232230

SPRING; CONT LEVER,GOV

198911-

1шт.

079

1157292940

SHIM; LEVER SETTING,GOV

198911-

079

1157292950

SHIM; LEVER SETTING,GOV

198911-

079

1157292960

SHIM; LEVER SETTING,GOV

198911-

079

1157292970

SHIM; LEVER SETTING,GOV

198911-

079

1157292980

SHIM; LEVER SETTING,GOV

198911-

079

1157292990

SHIM; LEVER SETTING,GOV

198911-

083

9813919060

SEAL; OIL,CONT SHAFT,GOV

198911-

1шт.

086

9813254290

BUSHING; CONT SHAFT,GOV COVER

198911-

1шт.

087

9019006160

BOLT; RETURN SPRING,GOV

198911-

1шт.

090

9813251770

SCREW; FULL LOAD ADJ,GOV

198911-

1шт.

091

5157231240

SPRING CAPSULE; ADJ,GOV

198911-

1шт.

092

5157291020

BOLT; FULL LOAD STOPPER

198911-

1шт.

093(A)

1157296430

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

093(B)

1157296890

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

093(D)

9813261120

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

093(E)

9844100270

NUT; ADJ SCREW LK,INJ PUMP GOV

198911-

1шт.

094(B)

1157297610

SCREW; ADJ,CONT LEVER,GOV

198911-

1шт.

094(B)

1157790270

SCREW; ADJ,CONT LEVER,GOV

198911-

1шт.

096

5157290530

PLUG; LEVER SHAFT,GOV

198911-

2шт.

099

9813250620

PIN; TENSION LEVER,GOV

198911-

1шт.

101

8941445880

GASKET; ADJ SPRING CAPSULE,GOV

198911-

2шт.

103

1157290920

NUT; CAP,ADJ SPRING CAPSULE,GOV

198911-

1шт.

104(A)

8970850220

CAP; LOCK NUT,ADJ SCREW

198911-

1шт.

105(B)

1157256700

LEVER; SPD CONT,GOV

198911-

1шт.

105(G)

8970310630

LEVER; SPD CONT,GOV

198911-

1шт.

106

9813250300

KEY; SWIVEL LEVER,GOV

198911-

1шт.

107

9813254880

WASHER; SWIVEL LEVER,GOV

198911-

1шт.

108

1157293010

COLLAR; SWIVEL LEVER,GOV

198911-

1шт.

109(A)

1157290990

SHIM; SWIVEL LEVER,GOV

198911-

1шт.

109(B)

9813250970

SHIM; SWIVEL LEVER,GOV

198911-

1шт.

110

1157290980

SEAL; OIL,SWIVEL LEVER,GOV

198911-

1шт.

111

8970242390

BUSHING; SWIVEL LEVER,GOV

198911-

1шт.

111

8970242400

BUSHING; SWIVEL LEVER,GOV

198911-

1шт.

112

9813212050

GASKET; SWIVEL LEVER,GOV

198911-

2шт.

113

9091854150

RING; SNAP,SWIVEL LEVER,GOV

198911-

2шт.

125

9813252100

CAP; STOP LEVER SPRING,GOV

198911-

1шт.

150

9813150650

ADAPTER; GOV HSG,INJ PUMP

198911-

1шт.

154

5157291120

BOLT; GOV HSG

198911-

1шт.

156

1835794920

WASHER; GOV HSG

198911-

1шт.

157

9019008180

BOLT; START SPRING PLATE,GOV

198911-

1шт.

160

1157290150

GASKET; PLUG TO HSG

198911-

1шт.

161

1157290380

PLUG; HSG

198911-

1шт.

253

9812350340

LIMITTER; GOV CONT

198911-

1шт.

387

9091505060

WASHER; COVER

198911-

1шт.

Запчасти Isuzu 081 GOVERNOR; INJECTION PUMP 081 GOVERNOR; INJECTION PUMP
