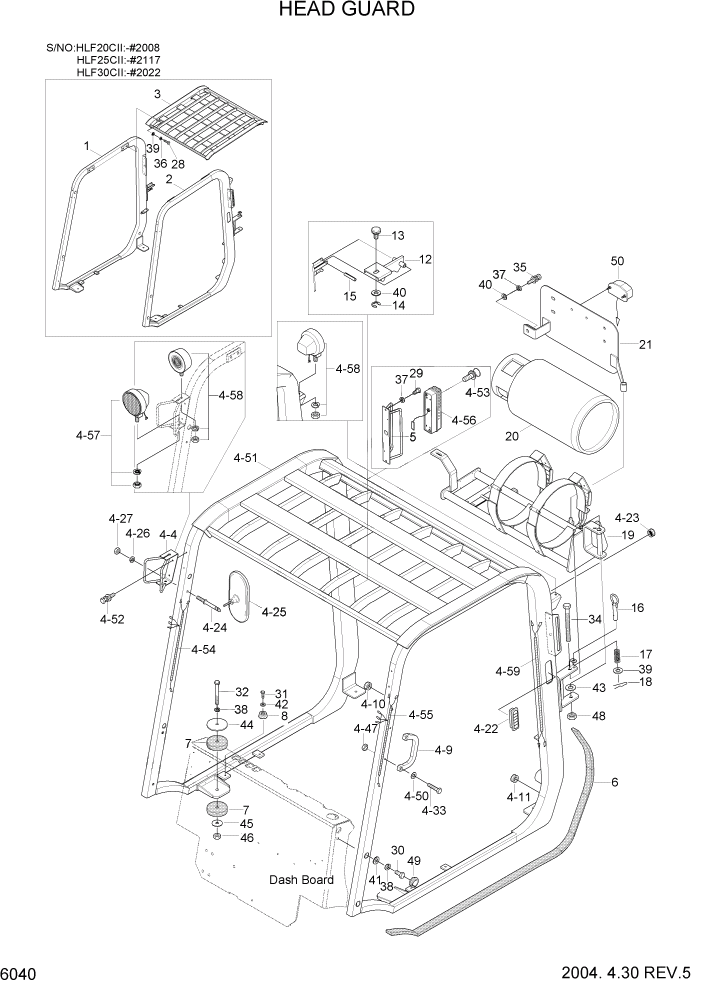

Запчасти Hyundai HLF20/HLF25/HLF30C-2 PAGE 6040 HEAD GUARD СТРУКТУРА

1

F53130120

STAY WA-RH

HLF20/25C-2 #1003

1шт.

1

F53130121

STAY WA-RH

HLF20/25C-2 #1004 - #1078

1шт.

1

F53130122

STAY WA-RH

HLF20/25C-2 #1079 - #1150

1шт.

1

F53130200

STAY WA-RH

HLF20C-2 #1151 - #2008

1шт.

1

F53130200

STAY WA-RH

HLF25C-2 #1151 - #2117

1шт.

1

F53130120

STAY WA-RH

HLF30C-2 #1003

1шт.

1

F53130122

STAY WA-RH

HLF30C-2 #1004 - #1021

1шт.

1

F53130200

STAY WA-RH

HLF30C-2 #1022 - #2022

1шт.

2

F53130130

STAY WA-LH

HLF30C-2 #1003

1шт.

2

F53130131

STAY WA-LH

HLF20/25C-2 #1004 - #1078

1шт.

2

F53130132

STAY WA-LH

HLF20/25C-2 #1079 - #1150

1шт.

2

F53130300

STAY WA-LH

HLF20C-2 #1151 - #2008

1шт.

2

F53130300

STAY WA-LH

HLF25C-2 #1151 - #2117

1шт.

2

F53130130

STAY WA-LH

HLF30C-2 #1003

1шт.

2

F53130132

STAY WA-LH

HLF30C-2 #1004 - #1021

1шт.

2

F53130300

STAY WA-LH

HLF30C-2 #1022 - #2022

1шт.

3

F53130140

HEAD GUARD TOP

HLF20/25C-2 #1003

1шт.

3

F53130141

HEAD GUARD TOP

HLF20/25C-2 #1004 - #1150

1шт.

3

F53130400

HEAD GUARD TOP

HLF20C-2 #1151 - #2008

1шт.

3

F53130400

HEAD GUARD TOP

HLF25C-2 #1151 - #2117

1шт.

3

F53130140

HEAD GUARD TOP

HLF30C-2 #1003

1шт.

3

F53130141

HEAD GUARD TOP

HLF30C-2 #1004 - #1021

1шт.

3

F53130400

HEAD GUARD TOP

HLF30C-2 #1022 - #2022

1шт.

4

F53130910

HEAD GUARD SUB ASSY

HLF20C-2 #2009

1шт.

4

F53130910

HEAD GUARD SUB ASSY

HLF25C-2 #2118

1шт.

4

F53130910

HEAD GUARD SUB ASSY

HLF30C-2 #2023

1шт.

4

F53130900

HEAD GUARD SUB ASSY

HLF20C-2,W/LAMP #2009

1шт.

4

F53130900

HEAD GUARD SUB ASSY

HLF25C-2,W/LAMP #2118

1шт.

4

F53130900

HEAD GUARD SUB ASSY

HLF30C-2,W/LAMP #2023

1шт.

41733

F12130092B

PROTECTOR-HEAD LAMP

HLF20/25C-2 #1003

2шт.

41733

F12130093B

PROTECTOR-HEAD LAMP

HLF20/25C-2 #1004

2шт.

41733

F12130092B

PROTECTOR-HEAD LAMP

HLF30C-2 #1083

2шт.

41733

F12130093B

PROTECTOR-HEAD LAMP

HLF30C-2 #1084

2шт.

41738

FAC0900100

GRIP-ASSIST

1шт.

41739

F12130120

GROMMET-FRONT

2шт.

41740

F12130130

GROMMET-REAR

2шт.

41751

FAC0100090-01

COVER-AIR INTAKE

1шт.

41752

FHC0904500

GROMMET

1шт.

41753

F12130140

ROD-BACK MIRROR

2шт.

41754

B52130070

MIRROR-REAR VIEW

2шт.

41755

233310000

WASHER-SPRING

#2000

2шт.

41755

S411-100002

WASHER-SPRING

#2001

2шт.

41756

221310001

NUT-HEX

#2000

2шт.

41756

S205-101002

NUT-HEX

#2001

2шт.

4-33

20C106060

SCREW-ROUND HEAD

#2000

2шт.

4-33

S161-060602

SCREW-ROUND HEAD

#2001

2шт.

4-47

FAC0900110

NUT-HEX

#2000

2шт.

4-47

S295-060002

NUT-DOMED CAP

#2001

2шт.

4-50

S403-061002

WASHER-PLAIN

2шт.

4-51

F53130020

HEAD GUARD WA

1шт.

4-52

S035-081522

BOLT-W/WASHER

4шт.

4-53

S131-051026

SCREW-W/WASHER C/RD

4шт.

4-54

F32800030

HARNESS-SUPPORT(RH)

1шт.

4-55

F32800040

HARNESS-SUPPORT(LH)

1шт.

4-56

F12840050

COMB LAMP ASSY-RR

2шт.

4-57

F12840010

LAMP-WORKING

2шт.

4-57

F12840010

LAMP-WORKING

W/LAMP

3шт.

4-58

F12840020

LAMP-FLASHER

2шт.

4-59

F13800140

HARNESS-WORK LAMP

W/LAMP

1шт.

5

F12130101B

PROTECTOR-COMBI LAMP

#1150

2шт.

5

F12130101B

PROTECTOR-COMBI LAMP

#1021

2шт.

6

F53130170

RUBBER-SEAL

2шт.

7

F53130110

RUBBER

8шт.

8

2636050800

RUBBER-CUSHION

2шт.

12

FBC0900120-02

BRACKET-LP TANK LOCK

1шт.

13

FAC0900110-01

KNOB

1шт.

14

2R5100700

RING-RETAINING

1шт.

15

245308045

PIN-SPRING

1шт.

16

FBC0900600

PIN-LOCK

1шт.

17

FBC0900610-01

SPRING

1шт.

18

248812000

PIN-SNAP

1шт.

19

F21131400

CLAMP ASSY

1шт.

20

FBC0200050-01

TANK-LPG

1шт.

21

FCC0900200B-01

NUMBER PLATE

OPT

1шт.

23

ED03020000-01

GROMMET

OPT

1шт.

28

201512025

BOLT-HEX

HLF20C-2 #2008

8шт.

28

201512025

BOLT-HEX

HLF25C-2 #2117

8шт.

28

201512025

BOLT-HEX

HLF30C-2 #2022

8шт.

29

201508015

BOLT-HEX

HLF20C-2 #2008

4шт.

29

201508015

BOLT-HEX

HLF25C-2 #2117

4шт.

29

201508015

BOLT-HEX

HLF30C-2 #2022

4шт.

30

201510025

BOLT-HEX

4шт.

31

201306020

BOLT-HEX

2шт.

32

201510080

BOLT-HEX

4шт.

34

FBC0900390

BOLT-LP TANK SUPPORT

1шт.

35

201308015

BOLT-HEX

1шт.

36

233312000

WASHER-SPRING

HLF20C-2 #2008

8шт.

36

233312000

WASHER-SPRING

HLF25C-2 #2117

8шт.

36

233312000

WASHER-SPRING

HLF30C-2 #2022

8шт.

37

233308000

WASHER-SPRING

5шт.

38

233310000

WASHER-SPRING

8шт.

39

231112000

WASHER-PLAIN

HLF20C-2 #2008

8шт.

39

231112000

WASHER-PLAIN

HLF25C-2 #2117

8шт.

39

231112000

WASHER-PLAIN

HLF30C-2 #2022

8шт.

40

231108000

WASHER-PLAIN

2шт.

41

231110000

WASHER-PLAIN

4шт.

42

231106000

WASHER-PLAIN

#2000

4шт.

42

231106000

WASHER-PLAIN

#2001

2шт.

43

231116000

WASHER-PLAIN

1шт.

44

F53130180

WASHER

4шт.

45

F23131060

WASHER-REBOUND

4шт.

46

223110001

NUT-SELF LOCK

4шт.

48

222316001

NUT-HEX

1шт.

49

9064201053

GROMMET

HLF20/25C-2 #1050

4шт.

49

F12130200

GROMMET

HLF20/25C-2 #1151

4шт.

49

9064201053

GROMMET

HLF30C-2 #1021

4шт.

49

F12130200

GROMMET

HLF30C-2 #1022

4шт.

50

F21891400

LAMP-LICENSE

OPT

1шт.
