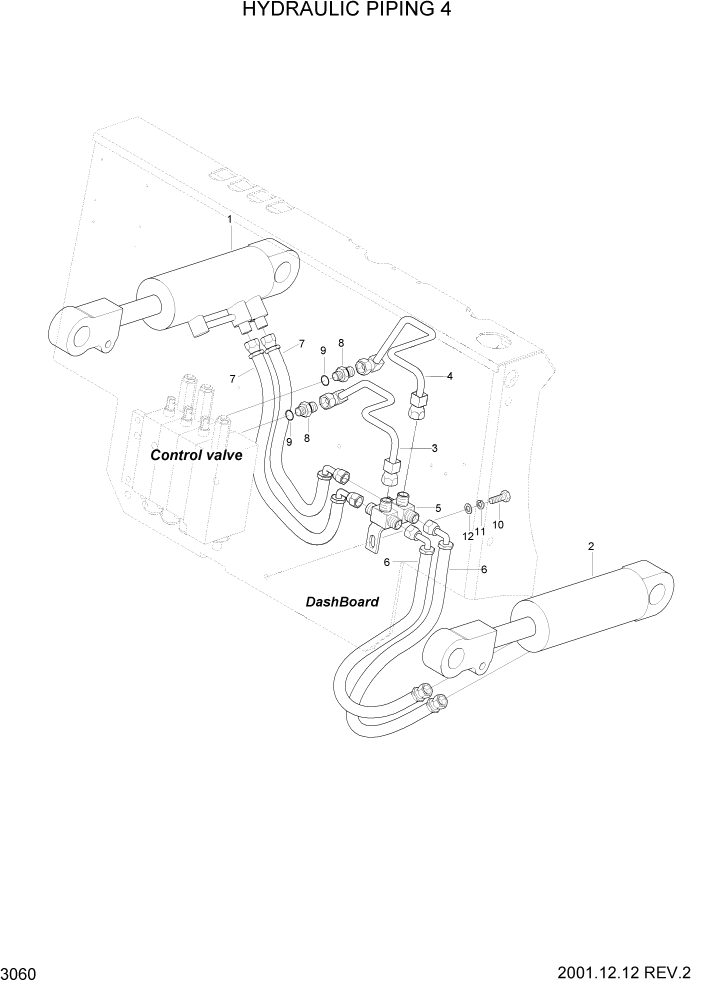

Запчасти Hyundai HLF20/HLF25/HLF30C-2 PAGE 3060 HYDRAULIC PIPING 4 ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

F53620010

TILT CYL ASSY

20/25C-2,5/10 #2000

1шт.

1

F53620010H

TILT CYL ASSY

20/25C-2,5/10 #2001

1шт.

1

F53620030

TILT CYL ASSY

20/25C-2,5/6 #2000

1шт.

1

F53620030H

TILT CYL ASSY

20/25C-2,5/6 #2001

1шт.

1

F53620010

TILT CYL ASSY

HLF30C-2,5/10 #1021

1шт.

1

F53620110

TILT CYL ASSY

HLF30C-2,5/10 #1022 - #2000

1шт.

1

F53620110H

TILT CYL ASSY

HLF30C-2,5/10 #2001

1шт.

1

F53620030

TILT CYL ASSY

HLF30C-2,5/6 #1021

1шт.

1

F53620130

TILT CYL ASSY

HLF30C-2,5/6 #1022 - #2000

1шт.

1

F53620130H

TILT CYL ASSY

HLF30C-2,5/6 #2001

1шт.

2

F53620020

TILT CYL ASSY

20/25C-2,5/10 #2000

1шт.

2

F53620020H

TILT CYL ASSY

20/25C-2,5/10 #2001

1шт.

2

F53620040

TILT CYL ASSY

20/25C-2,5/6 #2000

1шт.

2

F53620040H

TILT CYL ASSY

20/25C-2,5/6 #2001

1шт.

2

F53620020

TILT CYL ASSY

HLF30C-2,5/10 #1021

1шт.

2

F53620120

TILT CYL ASSY

HLF30C-2,5/10 #1022 - #2000

1шт.

2

F53620120H

TILT CYL ASSY

HLF30C-2,5/10 #2001

1шт.

2

F53620040

TILT CYL ASSY

HLF30C-2,5/6 #1021

1шт.

2

F53620140

TILT CYL ASSY

HLF30C-2,5/6 #1022 - #2000

1шт.

2

F53620140H

TILT CYL ASSY

HLF30C-2,5/6 #2001

1шт.

3

F53640100

TILT PIPE

1шт.

4

F53640110

TILT PIPE

1шт.

5

F53640090

FITTING

1шт.

6

29Q106608

HOSE ASSY-THD 0X90

2шт.

7

29Q106609

HOSE ASSY-THD 0X90

2шт.

8

28K310309

CONNECTOR

2шт.

9

2Q1201600

O-RING

2шт.

10

201308020

BOLT-HEX

1шт.

11

233308000

WASHER-SPRING

1шт.

12

231308000

WASHER-PLAIN

1шт.
