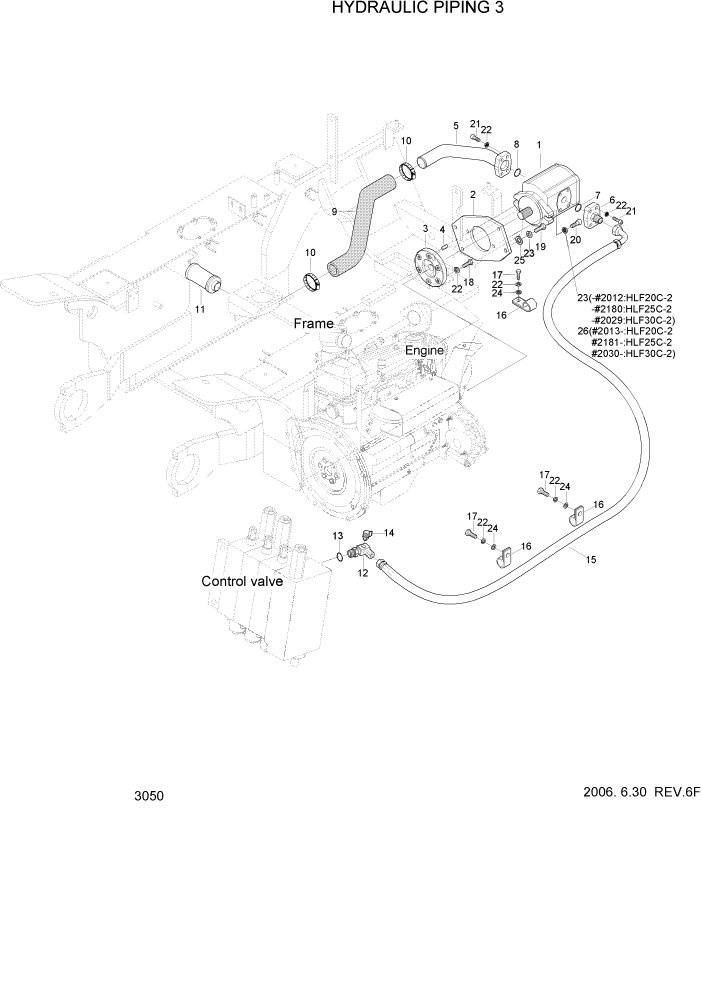

Запчасти Hyundai HLF20/HLF25/HLF30C-2 PAGE 3050 HYDRAULIC PIPING 3 ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

F21600010

HYDRAULIC PUMP

1шт.

2

F23600251

PLATE-PUMP SUPPORT

HLF20/25C-2 #1083

1шт.

2

F23600252

PLATE-PUMP SUPPORT

HLF20/25C-2 #1084

1шт.

2

F23600251

PLATE-PUMP SUPPORT

HLF30C-2 #1003

1шт.

2

F23600252

PLATE-PUMP SUPPORT

HLF30C-2 #1004

1шт.

3

F23600240

COUPLING

#1003

1шт.

3

F23600270

COUPLING

#1004 - #2000

1шт.

3

F23600271

COUPLING

HLF20C-2 #2001 - #2012

1шт.

3

F23600272

COUPLING

HLF20C-2 #2013

1шт.

3

F23600271

COUPLING

HLF25C-2 #2001 - #2180

1шт.

3

F23600272

COUPLING

HLF25C-2 #2181

1шт.

3

F23600271

COUPLING

HLF30C-2 #2001 - #2029

1шт.

3

F23600272

COUPLING

HLF30C-2 #2030

1шт.

4

241012014

PIN-DOWEL

#1003

1шт.

4

F23600260

PIN-DOWEL

#1004

1шт.

5

F21640010

FLANGE-SUCTION

HLF20/25C-2 #1038

1шт.

5

F21640012

FLANGE-SUCTION

HLF20/25C-2 #1039

1шт.

5

F21640010

FLANGE-SUCTION

HLF30C-2 #1003

1шт.

5

F21640012

FLANGE-SUCTION

HLF30C-2 #1004

1шт.

6

F53640040

FLANGE

#2001

1шт.

7

2Q4691200

O-RING

HLF20/25C-2 #1038

1шт.

7

2Q1102500

O-RING

HLF20/25C-2 #1039

1шт.

7

2Q4691200

O-RING

HLF30C-2 #1003

1шт.

7

2Q1102500

O-RING

HLF30C-2 #1004

1шт.

8

2Q1003600

O-RING

HLF20/25C-2 #1038

1шт.

8

2Q1003400

O-RING

HLF20/25C-2 #1039

1шт.

8

2Q1003600

O-RING

HLF30C-2 #1003

1шт.

8

2Q1003400

O-RING

HLF30C-2 #1004

1шт.

9

F53610110

HOSE-LP

HLF20/25C-2 #1038

1шт.

9

F53610111

HOSE-LP

HLF20/25C-2 #1039

1шт.

9

F53610110

HOSE-LP

HLF30C-2 #1003

1шт.

9

F53610111

HOSE-LP

HLF30C-2 #1004

1шт.

10

2C5304400

CLAMP

2шт.

11

FHC1007100

STRAINER-SUCTION

1шт.

12

F23611231

ELBOW

1шт.

13

2Q1202000

O-RING

1шт.

14

F12610120

COUPLING-TEST

1шт.

15

29Q208534

HOSE ASSY-THD 0X90

1шт.

16

2E3226000

CLIP

3шт.

17

201308015

BOLT-HEX

3шт.

18

201508030

BOLT-HEX

4шт.

19

211510030

BOLT-HEX

4шт.

20

213310025

BOLT-SOCKET

2шт.

21

203508025

BOLT-SOCKET

8шт.

22

233308000

WASHER-SPRING

15шт.

23

233310000

WASHER-SPRING

HLF20C-2 #2012

6шт.

23

S411-100002

WASHER-SPRING

HLF20C-2 #2013

4шт.

23

233310000

WASHER-SPRING

HLF25C-2 #2180

6шт.

23

S411-100002

WASHER-SPRING

HLF25C-2 #2181

4шт.

23

233310000

WASHER-SPRING

HLF30C-2 #2029

6шт.

23

S411-100002

WASHER-SPRING

HLF30C-2 #2030

4шт.

24

231108000

WASHER-PLAIN

3шт.

25

232108000

WASHER-PLAIN

4шт.

26

S411-100006

WASHER-SPRING

HLF20C-2 #2013

2шт.

26

S411-100006

WASHER-SPRING

HLF25C-2 #2181

2шт.

26

S411-100006

WASHER-SPRING

HLF30C-2 #2030

2шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
