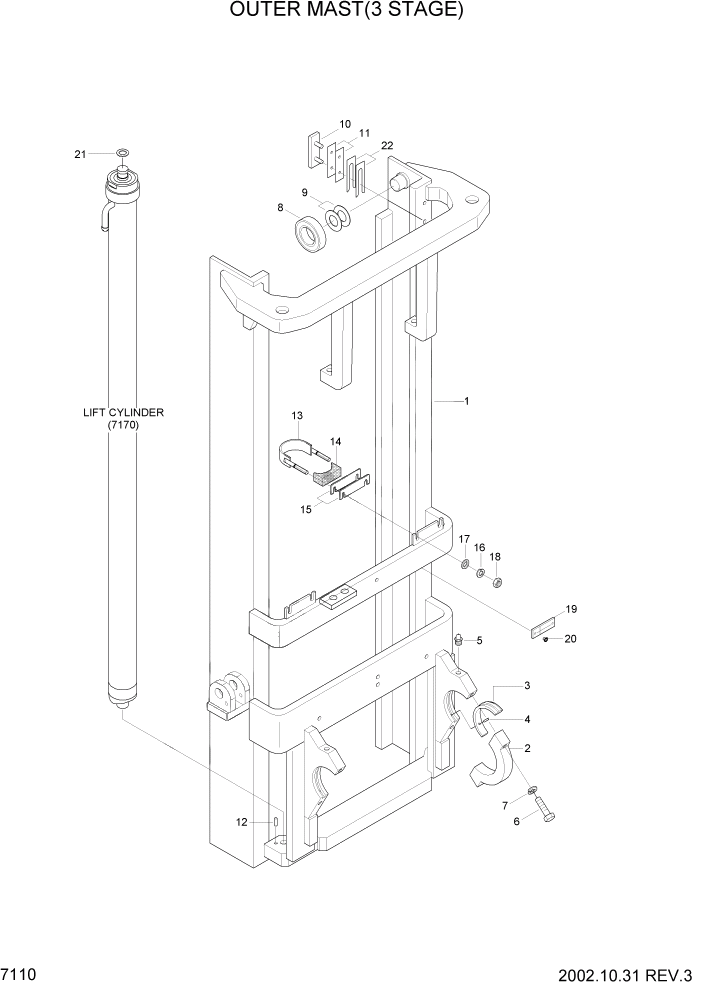

Запчасти Hyundai HLF15/HLF18-2 PAGE 7110 OUTER MAST(3 STAGE) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

F21521010

MAST WA-OUTER

HLF15-2,TF370 #1005

1шт.

1

F21521011

OUTER MAST ASSY

HLF15-2,TF370 #1006 - #2004

1шт.

1

F21521012

OUTER MAST ASSY

HLF15-2,TF370 #2005

1шт.

1

F21521010

MAST WA-OUTER

HLF18-2,TF370 #1009

1шт.

1

F21521011

OUTER MAST ASSY

HLF18-2,TF370 #1010 - #2004

1шт.

1

F21521012

OUTER MAST ASSY

HLF18-2,TF370 #2005

1шт.

1

F21521020

OUTER MAST ASSY

HLF15-2,TF400 #1005

1шт.

1

F21521021

OUTER MAST ASSY

HLF15-2,TF400 #1006 - #2004

1шт.

1

F21521022

OUTER MAST ASSY

HLF15-2,TF400 #2005

1шт.

1

F21521020

OUTER MAST ASSY

HLF18-2,TF400 #1009

1шт.

1

F21521021

OUTER MAST ASSY

HLF18-2,TF400 #1010 - #2004

1шт.

1

F21521022

OUTER MAST ASSY

HLF18-2,TF400 #2005

1шт.

1

F21521030

OUTER MAST ASSY

HLF15-2,TF430 #1005

1шт.

1

F21521031

OUTER MAST ASSY

HLF15-2,TF430 #1006 - #2004

1шт.

1

F21521032

OUTER MAST ASSY

HLF15-2,TF430 #2005

1шт.

1

F21521030

OUTER MAST ASSY

HLF18-2,TF430 #1009

1шт.

1

F21521031

OUTER MAST ASSY

HLF18-2,TF430 #1010 - #2004

1шт.

1

F21521032

OUTER MAST ASSY

HLF18-2,TF430 #2005

1шт.

1

F21521040

OUTER MAST ASSY

HLF15-2,TF450 #1005

1шт.

1

F21521041

OUTER MAST ASSY

HLF15-2,TF450 #1006 - #2004

1шт.

1

F21521042

OUTER MAST ASSY

HLF15-2,TF450 #2005

1шт.

1

F21521040

OUTER MAST ASSY

HLF18-2,TF450 #1009

1шт.

1

F21521041

OUTER MAST ASSY

HLF18-2,TF450 #1010 - #2004

1шт.

1

F21521042

OUTER MAST ASSY

HLF18-2,TF450 #2005

1шт.

1

F21521050

OUTER MAST ASSY

HLF15-2,TF470 #1005

1шт.

1

F21521051

OUTER MAST ASSY

HLF15-2,TF470 #1006 - #2004

1шт.

1

F21521052

OUTER MAST ASSY

HLF15-2,TF470 #2005

1шт.

1

F21521050

OUTER MAST ASSY

HLF18-2,TF470 #1009

1шт.

1

F21521051

OUTER MAST ASSY

HLF18-2,TF470 #1010 - #2004

1шт.

1

F21521052

OUTER MAST ASSY

HLF18-2,TF470 #2005

1шт.

1

F21521060

OUTER MAST ASSY

HLF15-2,TF500 #1005

1шт.

1

F21521061

OUTER MAST ASSY

HLF15-2,TF500 #1006 - #2004

1шт.

1

F21521062

OUTER MAST ASSY

HLF15-2,TF500 #2005

1шт.

1

F21521060

OUTER MAST ASSY

HLF18-2,TF500 #1009

1шт.

1

F21521061

OUTER MAST ASSY

HLF18-2,TF500 #1010 - #2004

1шт.

1

F21521062

OUTER MAST ASSY

HLF18-2,TF500 #2005

1шт.

1

F21521070

OUTER MAST ASSY

HLF15-2,TF550 #1005

1шт.

1

F21521071

OUTER MAST ASSY

HLF15-2,TF550 #1006 - #2004

1шт.

1

F21521072

OUTER MAST ASSY

HLF15-2,TF550 #2005

1шт.

1

F21521070

OUTER MAST ASSY

HLF18-2,TF550 #1009

1шт.

1

F21521071

OUTER MAST ASSY

HLF18-2,TF550 #1010 - #2004

1шт.

1

F21521072

OUTER MAST ASSY

HLF18-2,TF550 #2005

1шт.

1

F21521080

OUTER MAST ASSY

HLF15-2,TF600 #1005

1шт.

1

F21521081

OUTER MAST ASSY

HLF15-2,TF600 #1006 - #2004

1шт.

1

F21521082

OUTER MAST ASSY

HLF15-2,TF600 #2005

1шт.

1

F21521080

OUTER MAST ASSY

HLF18-2,TF600 #1009

1шт.

1

F21521081

OUTER MAST ASSY

HLF18-2,TF600 #1010 - #2004

1шт.

1

F21521082

OUTER MAST ASSY

HLF18-2,TF600 #2005

1шт.

1

F21521090

OUTER MAST ASSY

HLF15-2,TF650 #1005

1шт.

1

F21521091

OUTER MAST ASSY

HLF15-2,TF650 #1006 - #2004

1шт.

1

F21521092

OUTER MAST ASSY

HLF15-2,TF650 #2005

1шт.

1

F21521090

OUTER MAST ASSY

HLF18-2,TF650 #1009

1шт.

1

F21521091

OUTER MAST ASSY

HLF18-2,TF650 #1010 - #2004

1шт.

1

F21521092

OUTER MAST ASSY

HLF18-2,TF650 #2005

1шт.

2

FMC0000170

CAP

2шт.

3

FMC0000180

BUSHING

2шт.

4

245310016

PIN-SPRING

2шт.

5

2G1110000

NIPPLE-GREASE

2шт.

6

201516085

BOLT-HEX

4шт.

7

233316000

WASHER-SPRING

4шт.

8

6600181000-01

BRG-LIFT ROLLER

2шт.

9

5621101800

SHIM(0.5T)

ARшт.

10

6600354700

LINER-BACK UP

2шт.

11

FMC0000150

SHIM(1.0T)

ARшт.

11

FMC0000160

SHIM(0.5T)

ARшт.

12

245016022

PIN-SPRING

2шт.

13

F11500670

BAND-MAST UP CYL

2шт.

14

F12500350

RUBBER

2шт.

15

F12500530

SHIM(1.0T)

ARшт.

15

F12500540

SHIM(0.5T)

ARшт.

16

233308000

WASHER-SPRING

4шт.

17

231108000

WASHER-PLAIN

8шт.

18

221108000

NUT-HEX

4шт.

19

2D0900130

NAME PLATE-MAST

HLF15-2 #2044

1шт.

19

2D0900130

NAME PLATE-MAST

HLF18-2 #2030

1шт.

20

F020606

RIVET

HLF15-2 #2044

2шт.

20

F020606

RIVET

HLF18-2 #2030

2шт.

21

5261027300-02

SHIM(1.0T)

ARшт.

22

FMD0000110

SHIM(0.5T)

ARшт.

22

FMD0000111

SHIM(0.3T)

ARшт.
