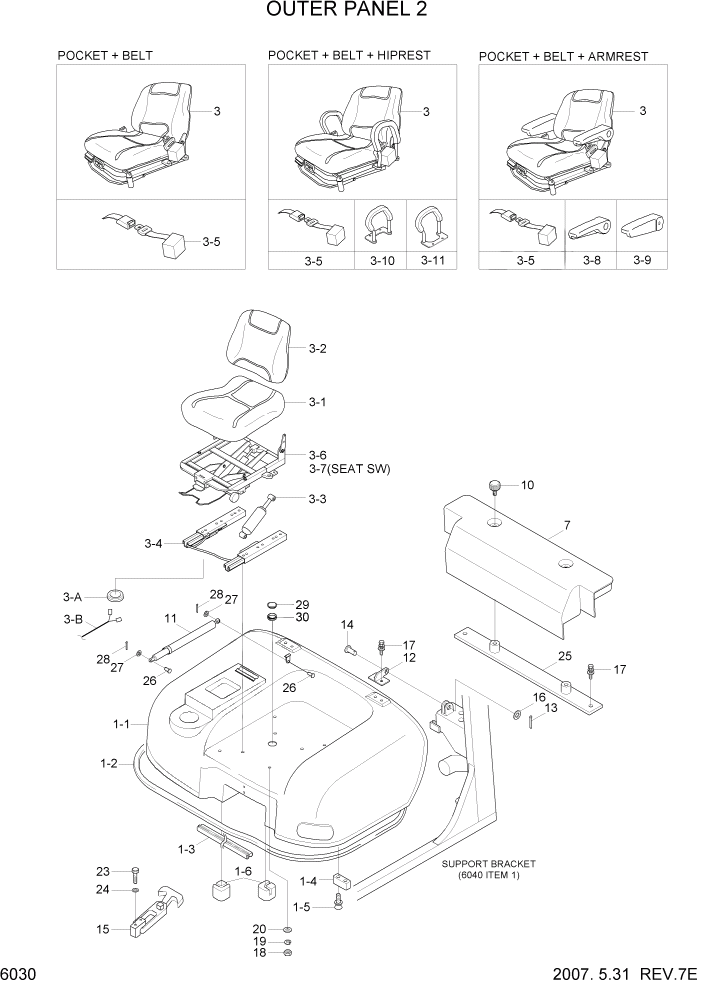

Запчасти Hyundai HLF20/HLF25/HLF30C-5 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FK-10011

BONNET ASSY

HLF20C-5 #0001

1шт.

1

71FK-10010

BONNET ASSY

HLF25C-5 #0054

1шт.

1

71FK-10011

BONNET ASSY

HLF25C-5 #0055

1шт.

1

71FK-10010

BONNET ASSY

HLF30C-5 #0011

1шт.

1

71FK-10011

BONNET ASSY

HLF30C-5 #0012

1шт.

1-1

71FK-10101

BONNET

1шт.

1-2

S772-006500

WEATHER STRIP

1шт.

1-3

S771-033400

WEATHER STRIP

1шт.

1-4

F12100190

CUSHION

2шт.

1-5

S132-061656

SCREW-W/WASHER

4шт.

1-6

71FK-10180

RUBBER

HLF20C-5 #0001

2шт.

1-6

71FK-10180

RUBBER

HLF25C-5 #0055

2шт.

1-6

71FK-10180

RUBBER

HLF30C-5 #0012

2шт.

3

71FG-10520

SEAT ASSY(PKT)

W/O SEAT SW,20 #0030

1шт.

3

71FG-10521

SEAT ASSY(PKT)

W/O SEAT SW,20 #0031

1шт.

3

71FG-10520

SEAT ASSY(PKT)

W/O SEAT SW,25 #0741

1шт.

3

71FG-10521

SEAT ASSY(PKT)

W/O SEAT SW,25 #0742

1шт.

3

71FG-10520

SEAT ASSY(PKT)

W/O SEAT SW,30 #0134

1шт.

3

71FG-10521

SEAT ASSY(PKT)

W/O SEAT SW,30 #0135

1шт.

3

71FH-10510

SEAT ASSY(PKT)

WITH SEAT SW,20 #0030

1шт.

3

71FH-10511

SEAT ASSY

WITH SEAT SW,20 #0031

1шт.

3

71FH-10510

SEAT ASSY(PKT)

WITH SEAT SW,25 #0741

1шт.

3

71FH-10511

SEAT ASSY

WITH SEAT SW,25 #0742

1шт.

3

71FH-10510

SEAT ASSY(PKT)

WITH SEAT SW,30 #0134

1шт.

3

71FH-10511

SEAT ASSY

WITH SEAT SW,30 #0135

1шт.

3

71FG-10530

SEAT ASSY(PKT+BT)

W/O SEAT SW,20 #0030

1шт.

3

71FG-10531

SEAT ASSY(PKT+BT)

W/O SEAT SW,20 #0031

1шт.

3

71FG-10530

SEAT ASSY(PKT+BT)

W/O SEAT SW,25 #0741

1шт.

3

71FG-10531

SEAT ASSY(PKT+BT)

W/O SEAT SW,25 #0742

1шт.

3

71FG-10530

SEAT ASSY(PKT+BT)

W/O SEAT SW,30 #0134

1шт.

3

71FG-10531

SEAT ASSY(PKT+BT)

W/O SEAT SW,30 #0135

1шт.

3

71FH-10520

SEAT ASSY(PKT+BT)

WITH SEAT SW,20 #0030

1шт.

3

71FH-10521

SEAT ASSY(PKT+BT)

WITH SEAT SW,20 #0031

1шт.

3

71FH-10520

SEAT ASSY(PKT+BT)

WITH SEAT SW,25 #0741

1шт.

3

71FH-10521

SEAT ASSY(PKT+BT)

WITH SEAT SW,25 #0742

1шт.

3

71FH-10520

SEAT ASSY(PKT+BT)

WITH SEAT SW,30 #0134

1шт.

3

71FH-10521

SEAT ASSY(PKT+BT)

WITH SEAT SW,30 #0135

1шт.

3

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,20 #0030

1шт.

3

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,20 #0031

1шт.

3

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,25 #0741

1шт.

3

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,25 #0742

1шт.

3

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,30 #0134

1шт.

3

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,30 #0135

1шт.

3

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,20 #0030

1шт.

3

71FH-10531

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,20 #0031

1шт.

3

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,25 #0741

1шт.

3

71FH-10531

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,25 #0742

1шт.

3

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,30 #0134

1шт.

3

71FH-10531

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,30 #0135

1шт.

3

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,20 #0030

1шт.

3

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,20 #0031

1шт.

3

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,25 #0741

1шт.

3

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,25 #0742

1шт.

3

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,30 #0134

1шт.

3

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,30 #0135

1шт.

3

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,20 #0030

1шт.

3

71FH-10541

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,20 #0031

1шт.

3

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,25 #0741

1шт.

3

71FH-10541

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,25 #0742

1шт.

3

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,30 #0134

1шт.

3

71FH-10541

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,30 #0135

1шт.

3-A

310006540

SWITCH-SEAT

WITH SEAT SW #0001

1шт.

3-B

B51800050

HARNESS-SEAT

WITH SEAT SW #0001

1шт.

3-1

H31013-100

CUSION ASSY

HLF20C-5 #0001 - #0030

1шт.

3-1

H31013-100C

CUSHION ASSY

HLF20C-5 #0031

1шт.

3-1

H31013-100

CUSION ASSY

HLF25C-5 #0001 - #0741

1шт.

3-1

H31013-100C

CUSHION ASSY

HLF25C-5 #0742

1шт.

3-1

H31013-100

CUSION ASSY

HLF30C-5 #0001 - #0134

1шт.

3-1

H31013-100C

CUSHION ASSY

HLF30C-5 #0135

1шт.

3-2

H31013-200

BACK ASSY

HLF20C-5 #0001 - #0030

1шт.

3-2

H31013-200B

BACK ASSY

HLF20C-5 #0031

1шт.

3-2

H31013-200

BACK ASSY

HLF25C-5 #0001 - #0741

1шт.

3-2

H31013-200B

BACK ASSY

HLF25C-5 #0742

1шт.

3-2

H31013-200

BACK ASSY

HLF30C-5 #0001 - #0134

1шт.

3-2

H31013-200B

BACK ASSY

HLF30C-5 #0135

1шт.

3-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

3-4

H31013-600

SLIDE TRACK ASSY

HLF20C-5 #0001 - #0030

1шт.

3-4

H31013-600B

SLIDE TRACK ASSY

HLF20C-5 #0031

1шт.

3-4

H31013-600

SLIDE TRACK ASSY

HLF25C-5 #0001 - #0741

1шт.

3-4

H31013-600B

SLIDE TRACK ASSY

HLF25C-5 #0742

1шт.

3-4

H31013-600

SLIDE TRACK ASSY

HLF30C-5 #0001 - #0134

1шт.

3-4

H31013-600B

SLIDE TRACK ASSY

HLF30C-5 #0135

1шт.

3-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

3-6

H31023-300

SUSPENSION ASSY

W/O SEAT SW,20 #0001 - #0030

1шт.

3-6

H31023-300G

SUSPENSION

W/O SEAT SW,20 #0031

1шт.

3-6

H31023-300

SUSPENSION ASSY

W/O SEAT SW,25 #0001 - #0741

1шт.

3-6

H31023-300G

SUSPENSION

W/O SEAT SW,25 #0742

1шт.

3-6

H31023-300

SUSPENSION ASSY

W/O SEAT SW,30 #0001 - #0134

1шт.

3-6

H31023-300G

SUSPENSION

W/O SEAT SW,30 #0135

1шт.

3-7

H31023-301

SUSPENSION

WITH SEAT SW,20 #0001 - #0030

1шт.

3-7

H31023-301G

SUSPENSION

WITH SEAT SW,20 #0031

1шт.

3-7

H31023-301

SUSPENSION

WITH SEAT SW,25 #0001 - #0741

1шт.

3-7

H31023-301G

SUSPENSION

WITH SEAT SW,25 #0742

1шт.

3-7

H31023-301

SUSPENSION

WITH SEAT SW,30 #0001 - #0134

1шт.

3-7

H31023-301G

SUSPENSION

WITH SEAT SW,30 #0135

1шт.

3-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

3-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

3-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

3-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

7

71FK-10071

SUB BONNET ASSY

HLF20C-5 #0016

1шт.

7

71FK-10072

SUB BONNET ASSY

HLF20C-5 #0017

1шт.

7

71FK-10071

SUB BONNET ASSY

HLF25C-5 #0303

1шт.

7

71FK-10072

SUB BONNET ASSY

HLF25C-5 #0304

1шт.

7

71FK-10071

SUB BONNET ASSY

HLF30C-5 #0041

1шт.

7

71FK-10072

SUB BONNET ASSY

HLF30C-5 #0042

1шт.

10

FAC0700820-01

KNOB

2шт.

11

71FG-10070

GAS SPRING

HLF20C-5 #0001

1шт.

11

71FK-10170

GAS SPRING

HLF25C-5 #0087

1шт.

11

71FG-10070

GAS SPRING

HLF25C-5 #0088

1шт.

11

71FK-10170

GAS SPRING

HLF30C-5 #0014

1шт.

11

71FG-10070

GAS SPRING

HLF30C-5 #0015

1шт.

12

71FJ-10070

HINGE

2шт.

13

S461-320202

PIN-SPLIT

2шт.

14

S491-160452

PIN-CLEVIS

2шт.

15

71FK-10150

LATCH

1шт.

16

S403-162002

WASHER-PLAIN

2шт.

17

S035-082026

BOLT-W/WASHER

2шт.

18

S205-081006

NUT-HEX

4шт.

19

S411-080006

WASHER-SPRING

4шт.

20

S403-085006

WASHER-PLAIN

4шт.

23

S161-050302

SCREW-CROSS R/ROUND

3шт.

24

S403-061002

WASHER-PLAIN

4шт.

25

71FK-10161

BRACKET-S/BONNET

1шт.

26

S491-120352

PIN-CLEVIS

2шт.

27

S403-082006

WASHER-PLAIN

2шт.

28

S461-200152

PIN-SPLIT

2шт.

29

FHC0904100

RUBBER-STAY

20-5,W/O SW #0020

1шт.

29

FHC0904100

RUBBER-STAY

25-5,W/O SW #0460

1шт.

29

FHC0904100

RUBBER-STAY

30-5,W/O SW #0061

1шт.

30

S681-230800

GROMMET

20-5,WITH SW #0020

1шт.

30

S681-230800

GROMMET

25-5,WITH SW #0460

1шт.

30

S681-230800

GROMMET

30-5,WITH SW #0061

1шт.
