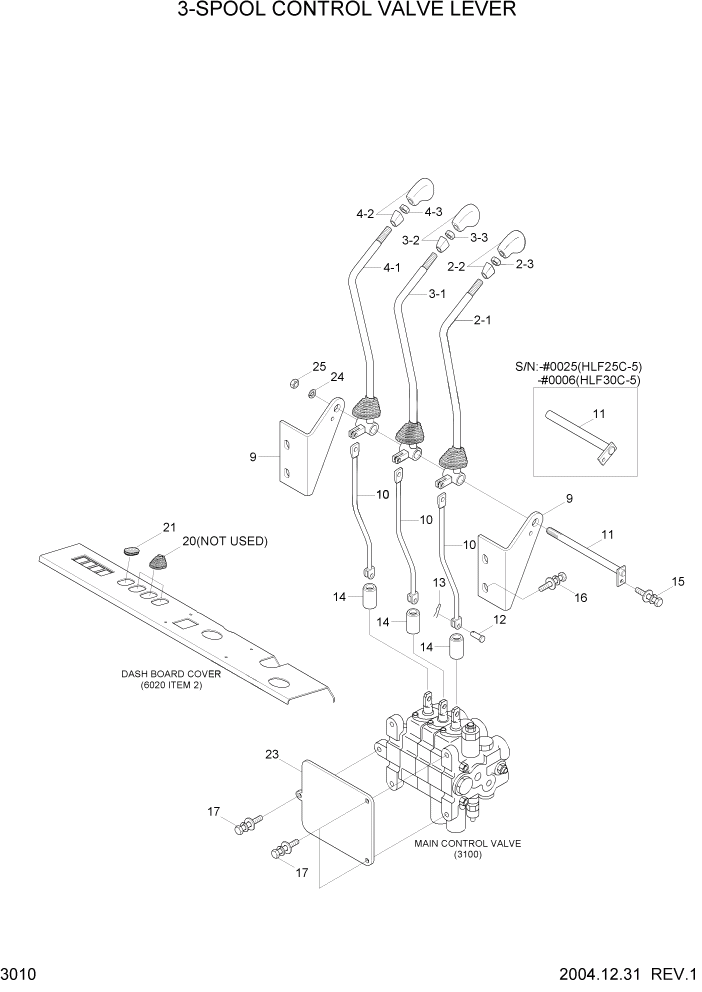

Запчасти Hyundai HLF20/HLF25/HLF30C-5 PAGE 3010 3-SPOOL CONTROL VALVE LEVER ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31FK-40081

LEVER SUB ASSY-LIFT

HLF20C-5 #0001

1шт.

2

31FK-40080

LEVER SUB ASSY-LIFT

HLF25C-5 #0025

1шт.

2

31FK-40081

LEVER SUB ASSY-LIFT

HLF25C-5 #0026

1шт.

2

31FK-40080

LEVER SUB ASSY-LIFT

HLF30C-5 #0006

1шт.

2

31FK-40081

LEVER SUB ASSY-LIFT

HLF30C-5 #0007

1шт.

2-1

31FK-40012

LEVER-LIFT

HLF20C-5 #0001

1шт.

2-1

31FK-40011

LEVER-LIFT

HLF25C-5 #0025

1шт.

2-1

31FK-40012

LEVER-LIFT

HLF25C-5 #0026

1шт.

2-1

31FK-40011

LEVER-LIFT

HLF30C-5 #0006

1шт.

2-1

31FK-40012

LEVER-LIFT

HLF30C-5 #0007

1шт.

2-2

31FG-40500

KNOB-LIFT

1шт.

2-3

S205-101006

NUT-HEX

1шт.

3

31FK-40091

LEVER SUB ASSY-TILT

HLF20C-5 #0001

1шт.

3

31FK-40090

LEVER SUB ASSY-TILT

HLF25C-5 #0025

1шт.

3

31FK-40091

LEVER SUB ASSY-TILT

HLF25C-5 #0026

1шт.

3

31FK-40090

LEVER SUB ASSY-TILT

HLF30C-5 #0006

1шт.

3

31FK-40091

LEVER SUB ASSY-TILT

HLF30C-5 #0007

1шт.

3-1

31FK-40022

LEVER-TILT

HLF20C-5 #0001

1шт.

3-1

31FK-40021

LEVER-TILT

HLF25C-5 #0025

1шт.

3-1

31FK-40022

LEVER-TILT

HLF25C-5 #0026

1шт.

3-1

31FK-40021

LEVER-TILT

HLF30C-5 #0006

1шт.

3-1

31FK-40022

LEVER-TILT

HLF30C-5 #0007

1шт.

3-2

31FG-40510

KNOB-TILT

1шт.

3-3

S205-101006

NUT-HEX

1шт.

4

31FK-40101

LEVER SUB ASSY-ATTACH1

HLF20C-5 #0001

1шт.

4

31FK-40100

LEVER SUB ASSY-ATTACH1

HLF25C-5 #0025

1шт.

4

31FK-40101

LEVER SUB ASSY-ATTACH1

HLF25C-5 #0026

1шт.

4

31FK-40100

LEVER SUB ASSY-ATTACH1

HLF30C-5 #0006

1шт.

4

31FK-40101

LEVER SUB ASSY-ATTACH1

HLF30C-5 #0007

1шт.

4-1

31FK-40032

LEVER-ATTACH1

HLF20C-5 #0001

1шт.

4-1

31FK-40031

LEVER-ATTACH1

HLF25C-5 #0025

1шт.

4-1

31FK-40032

LEVER-ATTACH1

HLF25C-5 #0026

1шт.

4-1

31FK-40031

LEVER-ATTACH1

HLF30C-5 #0006

1шт.

4-1

31FK-40032

LEVER-ATTACH1

HLF30C-5 #0007

1шт.

4-2

31FG-40520

KNOB-ATTACH

1шт.

4-3

S205-101006

NUT-HEX

1шт.

9

31FK-40052

BRACKET

HLF20C-5 #0001

2шт.

9

31FK-40051

BRACKET

HLF25C-5 #0087

2шт.

9

31FK-40052

BRACKET

HLF25C-5 #0088

2шт.

9

31FK-40051

BRACKET

HLF30C-5 #0014

2шт.

9

31FK-40052

BRACKET

HLF30C-5 #0015

2шт.

10

31FK-40061

ROD ASSY

HLF20C-5 #0001

3шт.

10

31FK-40060

ROD ASSY

HLF25C-5 #0087

3шт.

10

31FK-40061

ROD ASSY

HLF25C-5 #0088

3шт.

10

31FK-40060

ROD ASSY

HLF30C-5 #0014

3шт.

10

31FK-40061

ROD ASSY

HLF30C-5 #0015

3шт.

11

FAC1000742

SHAFT-3 SPOOL

HLF20C-5 #0001

1шт.

11

F14600140

SHAFT-3 SPOOL

HLF25C-5 #0025

1шт.

11

FAC1000742

SHAFT-3 SPOOL

HLF25C-5 #0026

1шт.

11

F14600140

SHAFT-3 SPOOL

HLF30C-5 #0006

1шт.

11

FAC1000742

SHAFT-3 SPOOL

HLF30C-5 #0007

1шт.

12

S491-080252

PIN-CLEVIS

HLF20C-5 #0001

6шт.

12

S491-080222

PIN-CLEVIS

HLF25C-5 #0025

6шт.

12

S491-080252

PIN-CLEVIS

HLF25C-5 #0026

6шт.

12

S491-080222

PIN-CLEVIS

HLF30C-5 #0006

6шт.

12

S491-080252

PIN-CLEVIS

HLF30C-5 #0007

6шт.

13

S501-110002

PIN-SELF LOCKING

6шт.

14

FAD1000110

BOOT

3шт.

15

S035-061522

BOLT-W/WASHER

1шт.

16

S035-081522

BOLT-W/WASHER

4шт.

17

S037-102052

BOLT-W/WASHER

3шт.

20

F11100480

BELLOWS

NOT USED

3шт.

21

F11100450

COVER-C/LEVER

1шт.

23

31FK-40120

PAD-RUBBER

#0001

1шт.

24

S403-122006

WASHER-PLAIN

HLF20C-5 #0001

1шт.

24

S403-122006

WASHER-PLAIN

HLF25C-5 #0026

1шт.

24

S403-122006

WASHER-PLAIN

HLF30C-5 #0007

1шт.

25

FAC1000760

NUT

HLF20C-5 #0001

1шт.

25

FAC1000760

NUT

HLF25C-5 #0026

1шт.

25

FAC1000760

NUT

HLF30C-5 #0007

1шт.
