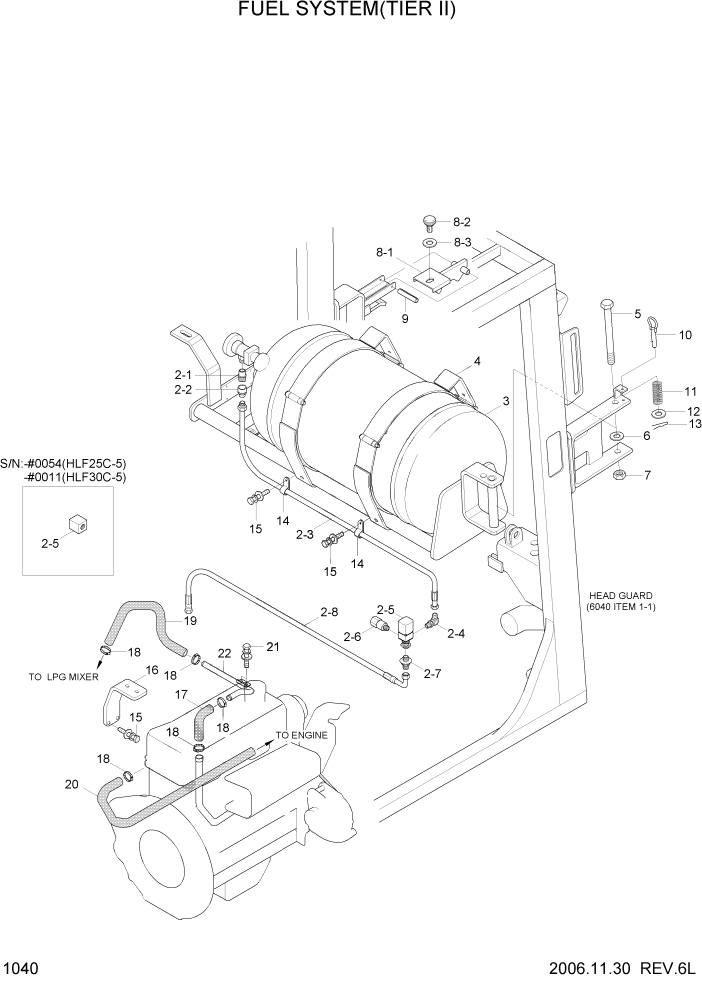

Запчасти Hyundai HLF20/HLF25/HLF30C-5 PAGE 1040 FUEL SYSTEM(TIER II) СИСТЕМА ДВИГАТЕЛЯ

2

11FN-50041

LPG COMMON KIT ASSY

HLF20C-5 #0001

1шт.

2

11FN-50040

LPG COMMON KIT ASSY

HLF25C-5 #0054

1шт.

2

11FN-50041

LPG COMMON KIT ASSY

HLF25C-5 #0055

1шт.

2

11FN-50040

LPG COMMON KIT ASSY

HLF30C-5 #0011

1шт.

2

11FN-50041

LPG COMMON KIT ASSY

HLF30C-5 #0012

1шт.

2-1

FBC0200900

COUPLING-MALE

1шт.

2-2

FBC0200600

COUPLING-FEMALE

1шт.

2-3

FBC0200200

HOSE ASSY

1шт.

2-4

FBC0200300

ELBOW

1шт.

2-5

11FW-50120

BULKHEAD FILTER

HLF20C-5 #0001

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF25C-5 #0001 - #0054

1шт.

2-5

11FW-50120

BULKHEAD FILTER

HLF25C-5 #0055

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF30C-5 #0001 - #0011

1шт.

2-5

11FW-50120

BULKHEAD FILTER

HLF30C-5 #0012

1шт.

2-6

FBC0200800

RELIEF VALVE

1шт.

2-7

FBC0200400

ADAPTOR

1шт.

2-8

F21610020

HOSE

1шт.

3

FBC0200050-01

TANK-LPG

1шт.

4

F21131400

CLAMP ASSY

1шт.

5

FBC0900390

BOLT-LP TANK SUPPORT

1шт.

6

S403-161006

WASHER-PLAIN

1шт.

7

S206-161006

NUT-HEX

1шт.

N8

FBC0900100-02

LOCK BRACKET ASSY

NOT #0001

1шт.

8-1

FBC0900120-01

BRACKET-LP TANK LOCK

#0001

1шт.

8-2

FBC0900110-01

KNOB

#0001

1шт.

8-3

S403-081002

WASHER-PLAIN

#0001

1шт.

9

S471-400454

PIN-SPRING

1шт.

10

FBC0900600

LOCK PIN

1шт.

11

FBC0900610-01

SPRING

1шт.

12

S403-121006

WASHER-PLAIN

1шт.

13

S501-120002

PIN-SELF LOCKING

1шт.

14

S543-260002

CLAMP-TUBE

2шт.

15

S035-082026

BOLT-W/WASHER

4шт.

16

11FK-51060

BRACKET-REGULATOR

1шт.

17

F23232100

HOSE-WATER

1шт.

18

S520-027000

CLAMP-HOSE

6шт.

19

11FN-51011

HOSE-WATER IN

1шт.

20

11FN-51021

HOSE-WATER OUT

1шт.

21

S035-062026

BOLT-W/WASHER

2шт.

22

F53230061

PIPE-WATER

1шт.

22

S520-027000

CLAMP-HOSE

6шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
