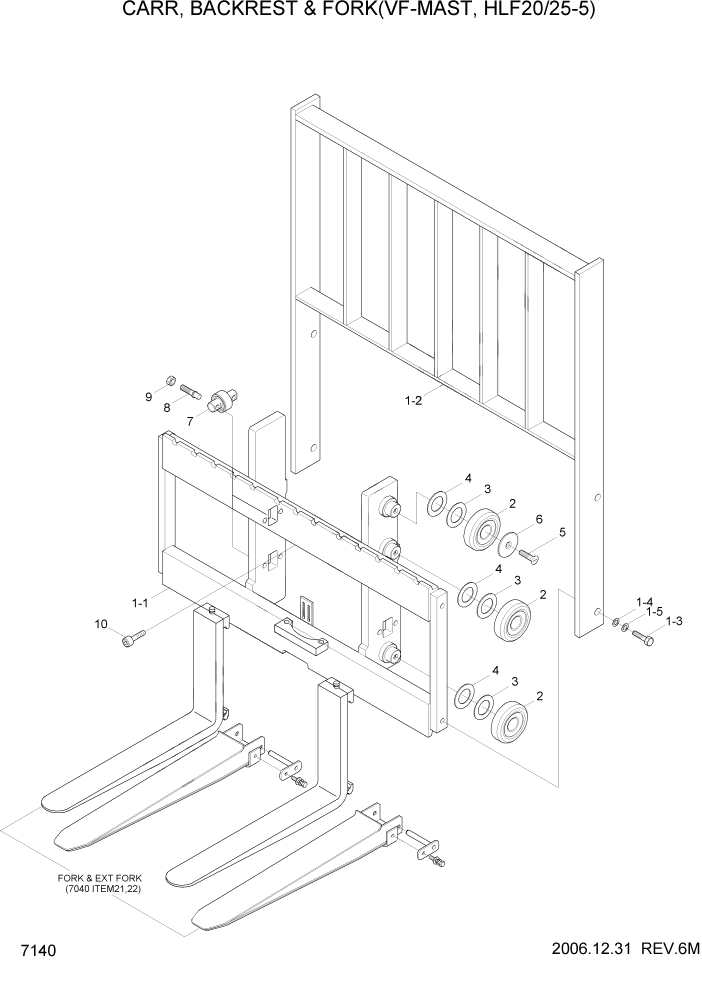

Запчасти Hyundai HLF20/HLF25/HLF30-5 PAGE 7140 CARR,BACKREST & FORK(VF-MAST,HLF20/25-5) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

62FG-27040

CARR & BACKREST ASSY

SINGLE #0001

1шт.

*

62FG-27060

CARR & BACKREST ASSY

DOUBLE,HLF20-5 #0001 - #0092

1шт.

*

62FG-27061

CARR & BACKREST ASSY

DOUBLE,HLF20-5 #0093

1шт.

*

62FG-27060

CARR & BACKREST ASSY

DOUBLE,HLF25-5 #0001 - #1083

1шт.

*

62FG-27061

CARR & BACKREST ASSY

DOUBLE,HLF25-5 #1084

1шт.

1

62FG-25040

CARR & BACKREST ASSY

SINGLE

1шт.

1

62FG-25061

CARR & BACKREST ASSY

DOUBLE

1шт.

1-1

62FG-21040

CARRIAGE WA

SINGLE

1шт.

1-1

62FG-21061

CARRIAGE WA

DOUBLE

1шт.

1-2

61FG-23430

BACKREST WA(SINGLE)

SINGLE

1шт.

1-2

61FG-23630

BACKREST WA(DOUBLE)

DOUBLE

1шт.

1-3

S107-160352

BOLT-SOCKET

4шт.

1-4

S403-161002

WASHER-PLAIN

4шт.

1-5

S411-160002

WASHER-SPRING

4шт.

2

6600181100-01

BEARING-ROLLER

6шт.

3

6600187900

SHIM(0.5T)

6шт.

4

6600188000

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28020

WASHER-RETAINING

2шт.

7

61F7-28100

SIDE ROLLER ASSY

4шт.

8

61F4-28040

SCREW-ADJUSTABLE

8шт.

9

S205-161002

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

HLF20-5 #0093

1шт.

10

S109-120306

BOLT-SOCKET

HLF25-5 #1084

1шт.
