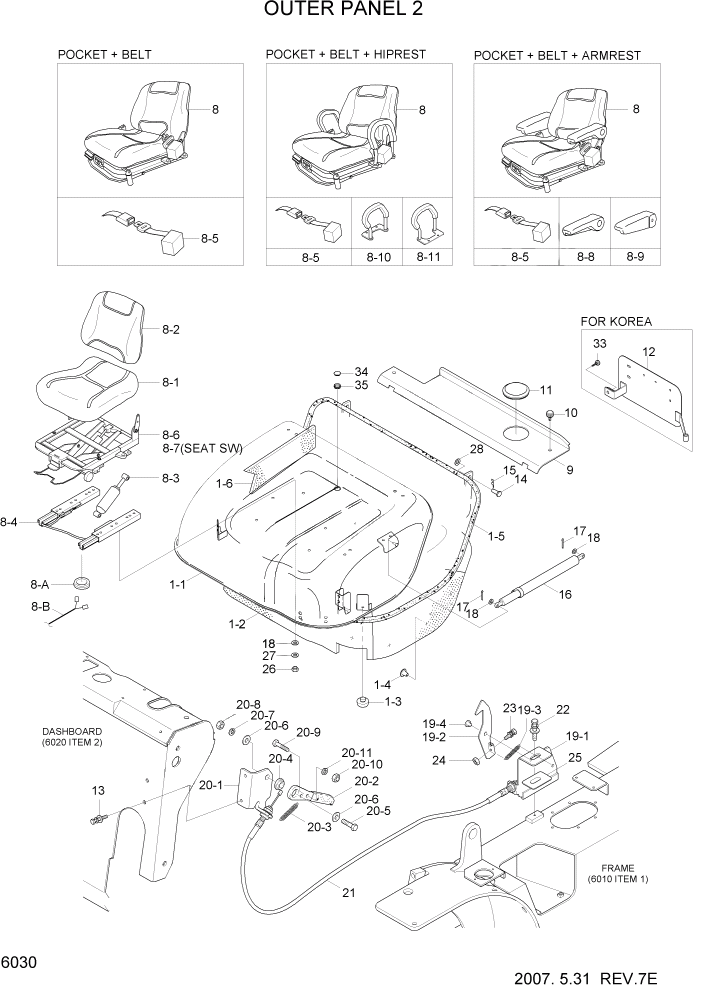

Запчасти Hyundai HLF20/HLF25/HLF30-5 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FG-10012

BONNET SUB ASSY

HLF20-5 #0001 - #0065

1шт.

1

71FG-10013

BONNET SUB ASSY

HLF20-5 #0066

1шт.

1

71FG-10011

BONNET SUB ASSY

HLF25-5 #0016

1шт.

1

71FG-10012

BONNET SUB ASSY

HLF25-5 #0017 - #0601

1шт.

1

71FG-10013

BONNET SUB ASSY

HLF25-5 #0602

1шт.

1

71FG-10011

BONNET SUB ASSY

HLF30-5 #0007

1шт.

1

71FG-10012

BONNET SUB ASSY

HLF30-5 #0008 - #0353

1шт.

1

71FG-10013

BONNET SUB ASSY

HLF30-5 #0354

1шт.

1-1

71FG-10240

BONNET WA

1шт.

1-2

71FG-10110

SPONGE

1шт.

1-3

71FA-10220

RUBBER-HOOD SUPPORT

2шт.

1-4

71EM-51580

CAP-STUD BOLT

27шт.

1-5

S771-045000

WEATHER STRIP

1шт.

1-6

71FG-10190

SPONGE

HLF20-5 #0001

1шт.

1-6

71FG-10190

SPONGE

HLF25-5 #0017

1шт.

1-6

71FG-10190

SPONGE

HLF30-5 #0008

1шт.

8

71FG-10520

SEAT ASSY(PKT)

W/O SEAT SW,20 #0093

1шт.

8

71FG-10521

SEAT ASSY(PKT)

W/O SEAT SW,20 #0094

1шт.

8

71FG-10520

SEAT ASSY(PKT)

W/O SEAT SW,25 #1315

1шт.

8

71FG-10521

SEAT ASSY(PKT)

W/O SEAT SW,25 #1316

1шт.

8

71FG-10520

SEAT ASSY(PKT)

W/O SEAT SW,30 #0777

1шт.

8

71FG-10521

SEAT ASSY(PKT)

W/O SEAT SW,30 #0778

1шт.

8

71FH-10510

SEAT ASSY(PKT)

WITH SEAT SW,20 #0093

1шт.

8

71FH-10511

SEAT ASSY(PKT)

WITH SEAT SW,20 #0094

1шт.

8

71FH-10510

SEAT ASSY(PKT)

WITH SEAT SW,25 #1315

1шт.

8

71FH-10511

SEAT ASSY(PKT)

WITH SEAT SW,25 #1316

1шт.

8

71FH-10510

SEAT ASSY(PKT)

WITH SEAT SW,30 #0777

1шт.

8

71FH-10511

SEAT ASSY(PKT)

WITH SEAT SW,30 #0778

1шт.

8

71FG-10530

SEAT ASSY(PKT+BT)

W/O SEAT SW,20 #0093

1шт.

8

71FG-10531

SEAT ASSY(PKT+BT)

W/O SEAT SW,20 #0094

1шт.

8

71FG-10530

SEAT ASSY(PKT+BT)

W/O SEAT SW,25 #1315

1шт.

8

71FG-10531

SEAT ASSY(PKT+BT)

W/O SEAT SW,25 #1316

1шт.

8

71FG-10530

SEAT ASSY(PKT+BT)

W/O SEAT SW,30 #0777

1шт.

8

71FG-10531

SEAT ASSY(PKT+BT)

W/O SEAT SW,30 #0778

1шт.

8

71FH-10520

SEAT ASSY(PKT+BT)

WITH SEAT SW,20 #0093

1шт.

8

71FH-10521

SEAT ASSY(PKT+BT)

WITH SEAT SW,20 #0094

1шт.

8

71FH-10520

SEAT ASSY(PKT+BT)

WITH SEAT SW,25 #1315

1шт.

8

71FH-10521

SEAT ASSY(PKT+BT)

WITH SEAT SW,25 #1316

1шт.

8

71FH-10520

SEAT ASSY(PKT+BT)

WITH SEAT SW,30 #0777

1шт.

8

71FH-10521

SEAT ASSY(PKT+BT)

WITH SEAT SW,30 #0778

1шт.

8

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,20 #0093

1шт.

8

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,20 #0094

1шт.

8

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,25 #1315

1шт.

8

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,25 #1316

1шт.

8

71FG-10540

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,30 #0777

1шт.

8

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O SEAT SW,30 #0778

1шт.

8

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,20 #0093

1шт.

8

71FH-10531

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,20 #0094

1шт.

8

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,25 #1315

1шт.

8

71FH-10531

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,25 #1316

1шт.

8

71FH-10530

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,30 #0777

1шт.

8

71FH-10531

SEAT ASSY(PKT+BT+HR)

WITH SEAT SW,30 #0778

1шт.

8

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,20 #0093

1шт.

8

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,20 #0094

1шт.

8

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,25 #1315

1шт.

8

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,25 #1316

1шт.

8

71FG-10550

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,30 #0777

1шт.

8

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O SEAT SW,30 #0778

1шт.

8

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,20 #0093

1шт.

8

71FH-10541

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,20 #0094

1шт.

8

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,25 #1315

1шт.

8

71FH-10541

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,25 #1316

1шт.

8

71FH-10540

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,30 #0777

1шт.

8

71FH-10541

SEAT ASSY(PKT+BT+AR)

WITH SEAT SW,30 #0778

1шт.

8-A

310006540

SWITCH-SEAT

WITH SEAT SW #0001

1шт.

8-B

B51800050

HARNESS-SEAT

WITH SEAT SW #0001

1шт.

8-1

H31013-100

CUSION ASSY

HLF20-5 #0001 - #0093

1шт.

8-1

H31013-100C

CUSION ASSY

HLF20-5 #0094

1шт.

8-1

H31013-100

CUSION ASSY

HLF25-5 #0001 - #1315

1шт.

8-1

H31013-100C

CUSION ASSY

HLF25-5 #1316

1шт.

8-1

H31013-100

CUSION ASSY

HLF30-5 #0001 - #0777

1шт.

8-1

H31013-100C

CUSION ASSY

HLF30-5 #0778

1шт.

8-2

H31013-200

BACK ASSY

HLF20-5 #0001 - #0093

1шт.

8-2

H31013-200B

BACK ASSY

HLF20-5 #0094

1шт.

8-2

H31013-200

BACK ASSY

HLF25-5 #0001 - #1315

1шт.

8-2

H31013-200B

BACK ASSY

HLF25-5 #1316

1шт.

8-2

H31013-200

BACK ASSY

HLF30-5 #0001 - #0777

1шт.

8-2

H31013-200B

BACK ASSY

HLF30-5 #0778

1шт.

8-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

8-4

H31013-600

SLIDE TRACK ASSY

HLF20-5 #0001 - #0093

1шт.

8-4

H31013-600B

SLIDE TRACK ASSY

HLF20-5 #0094

1шт.

8-4

H31013-600

SLIDE TRACK ASSY

HLF25-5 #0001 - #1315

1шт.

8-4

H31013-600B

SLIDE TRACK ASSY

HLF25-5 #1316

1шт.

8-4

H31013-600

SLIDE TRACK ASSY

HLF30-5 #0001 - #0777

1шт.

8-4

H31013-600B

SLIDE TRACK ASSY

HLF30-5 #0778

1шт.

8-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

8-6

H31023-300

SUSPENSION ASSY

W/O SEAT SW,20 #0001 - #0093

1шт.

8-6

H31023-300G

SUSPENSION

W/O SEAT SW,20 #0094

1шт.

8-6

H31023-300

SUSPENSION ASSY

W/O SEAT SW,25 #0001 - #1315

1шт.

8-6

H31023-300G

SUSPENSION

W/O SEAT SW,25 #1316

1шт.

8-6

H31023-300

SUSPENSION ASSY

W/O SEAT SW,30 #0001 - #0777

1шт.

8-6

H31023-300G

SUSPENSION

W/O SEAT SW,30 #0778

1шт.

8-7

H31023-301

SUSPENSION

WITH SEAT SW,20 #0001 - #0093

1шт.

8-7

H31023-301G

SUSPENSION

WITH SEAT SW,20 #0094

1шт.

8-7

H31023-301

SUSPENSION

WITH SEAT SW,25 #0001 - #1315

1шт.

8-7

H31023-301G

SUSPENSION

WITH SEAT SW,25 #1316

1шт.

8-7

H31023-301

SUSPENSION

WITH SEAT SW,30 #0001 - #0777

1шт.

8-7

H31023-301G

SUSPENSION

WITH SEAT SW,30 #0778

1шт.

8-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

8-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

8-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

8-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

9

71FU-10060

SUB-BONNET

1шт.

10

FAC0700820-01

KNOB

2шт.

11

Q101888000

COVER-RUBBER

1шт.

12

71FU-10160

NUMBER PLATE WA

KOREA

1шт.

13

S035-082026

BOLT-W/WASHER

2шт.

14

S491-120352

PIN-CLEVIS

2шт.

15

S501-120002

PIN-SELF LOCKING

2шт.

16

71FG-10260

GAS SPRING

1шт.

17

S461-200156

PIN-SPLIT

2шт.

18

S403-082006

WASHER-PLAIN

6шт.

19

71FA-10091

LATCH ASSY

1шт.

19-1

71FA-10131

LATCH FRAME

1шт.

19-2

71FB-10140

LATCH LOCK PLATE

1шт.

19-3

71FA-10161

SPRING

1шт.

19-4

71FA-10151

RIVET

1шт.

20

71FB-10201

LATCH LEVER ASSY

1шт.

20-1

71FB-10211

FRAME-LEVER

1шт.

20-2

71FB-10220

LEVER

1шт.

20-3

71FB-10230

SPRING

1шт.

20-4

71FB-10240

BUSHING

1шт.

20-5

S017-120402

BOLT-HEX

1шт.

20-6

S403-122002

WASHER-PLAIN

2шт.

20-7

S411-120002

WASHER-SPRING

1шт.

20-8

S205-122002

NUT-HEX

1шт.

20-9

S015-080402

BOLT-HEX

1шт.

20-1

S205-082002

NUT-HEX

1шт.

20-11

S403-082002

WASHER-PLAIN

1шт.

21

71FG-10250

CABLE-LATCH

1шт.

22

S035-081526

BOLT-W/WASHER

1шт.

23

S035-061526

BOLT-W/WASHER

1шт.

24

S205-061006

NUT-HEX

1шт.

25

71FA-10100

SHIM(2.0T)

1шт.

26

S205-081006

NUT-HEX

4шт.

27

S411-080006

WASHER-SPRING

4шт.

28

S403-122006

WASHER-PLAIN

2шт.

33

FBC0900110-01

KNOB

KOREA

1шт.

34

FHC0904100

RUBBER-STAY

HLF20-5 W/O SW #0066

1шт.

34

FHC0904100

RUBBER-STAY

HLF25-5 W/O SW #0602

1шт.

34

FHC0904100

RUBBER-STAY

HLF30-5 W/O SW #0354

1шт.

35

S681-230800

GROMMET

HLF20-5 WITH SW #0066

1шт.

35

S681-230800

GROMMET

HLF25-5 WITH SW #0602

1шт.

35

S681-230800

GROMMET

HLF30-5 WITH SW #0354

1шт.
