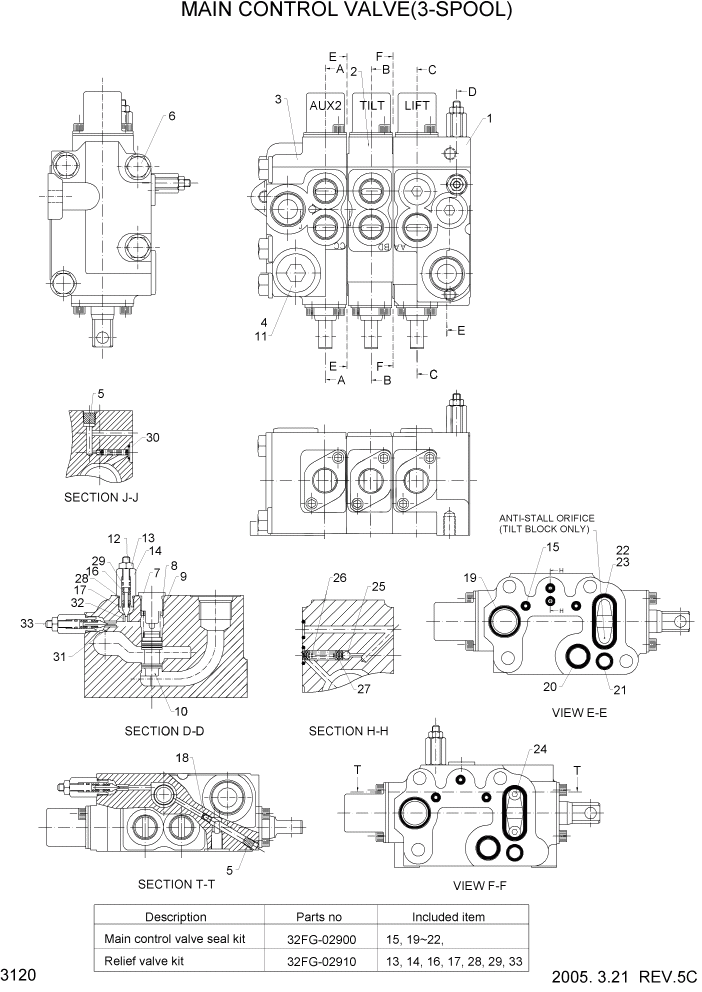

Запчасти Hyundai HLF20/HLF25/HLF30-5 PAGE 3120 MAIN CONTROL VALVE(3-SPOOL) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

32FG-02000

MAIN CONTROL VALVE

3-SPOOL,20-5 #0032

1шт.

*

32FG-02001

MAIN CONTROL VALVE

3-SPOOL,20-5 #0033

1шт.

*

32FG-02000

MAIN CONTROL VALVE

3-SPOOL,25-5 #0223

1шт.

*

32FG-02001

MAIN CONTROL VALVE

3-SPOOL,25-5 #0224

1шт.

*

32FG-02000

MAIN CONTROL VALVE

3-SPOOL,30-5 #0115

1шт.

*

32FG-02001

MAIN CONTROL VALVE

3-SPOOL,30-5 #0116

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HLF20-5 #0032

1шт.

1

XKBF-00475

LIFT BLOCK ASSY

HLF20-5 #0033

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HLF25-5 #0223

1шт.

1

XKBF-00475

LIFT BLOCK ASSY

HLF25-5 #0224

1шт.

1

32FG-02010

LIFT BLOCK ASSY

HLF30-5 #0115

1шт.

1

XKBF-00475

LIFT BLOCK ASSY

HLF30-5 #0116

1шт.

2

32FG-02020

TILT BLOCK ASSY

HLF20-5 #0032

1шт.

2

XKBF-00474

TILT BLOCK ASSY

HLF20-5 #0033

1шт.

2

32FG-02020

TILT BLOCK ASSY

HLF25-5 #0223

1шт.

2

XKBF-00474

TILT BLOCK ASSY

HLF25-5 #0224

1шт.

2

32FG-02020

TILT BLOCK ASSY

HLF30-5 #0115

1шт.

2

XKBF-00474

TILT BLOCK ASSY

HLF30-5 #0116

1шт.

3

32FG-02030

AUX BLOCK ASSY2

1шт.

4

32FG-02040

PLUG

1шт.

5

32FG-02050

PLUG-BLIND

2шт.

6

32FG-02060

BOLT-LONG

4шт.

7

32FG-02070

PLUG-HYDROSTAT

1шт.

8

32FG-02080

O-RING

1шт.

9

32FG-02090

SPRING-HYDROSTAT

1шт.

10

32FG-02100

SLEEVE-HYDROSTAT

1шт.

11

32FG-02110

O-RING

1шт.

12

32FG-02120

PISTON-RELIEF

2шт.

R13

32FG-02130

NUT

2шт.

R14

32FG-02140

PLUG-RELIEF

2шт.

K15

32FG-02150

O-RING

6шт.

R16

32FG-02160

SPRING-RELIEF

2шт.

R17

32FG-02170

PILOT-POPPET

2шт.

18

32FG-02180

BLIND PLUG-ORIFICE

HLF20-5 #0032

1шт.

18

XKBF-00470

BLIND PLUG-ORIFICE

HLF20-5 #0033

1шт.

18

32FG-02180

BLIND PLUG-ORIFICE

HLF25-5 #0223

1шт.

18

XKBF-00470

BLIND PLUG-ORIFICE

HLF25-5 #0224

1шт.

18

32FG-02180

BLIND PLUG-ORIFICE

HLF30-5 #0115

1шт.

18

XKBF-00470

BLIND PLUG-ORIFICE

HLF30-5 #0116

1шт.

K19

32FG-02190

O-RING

3шт.

K20

32FG-02200

O-RING

3шт.

K21

32FG-02210

O-RING

3шт.

K22

32FG-02220

O-RING

3шт.

23

32FG-02230

RETAINER

3шт.

24

32FG-02240

PLUG-BLIND

2шт.

25

32FG-02250

BALL-STEEL

3шт.

26

32FG-02260

SPRING

3шт.

27

32FG-02270

SPRING

3шт.

R28

32FG-02280

O-RING

2шт.

R29

32FG-02290

O-RING

2шт.

30

32FG-02300

PLATE-SIDE

1шт.

31

32FG-02310

SEAT

1шт.

32

32FG-02320

SEAT

1шт.

R33

32FG-02330

PISTON-RELIEF

2шт.

R

32FG-02910

RELIEF VALVE KIT

SEE ILLUST

1шт.

K

32FG-02900

SEAL KIT

SEE ILLUST

1шт.
