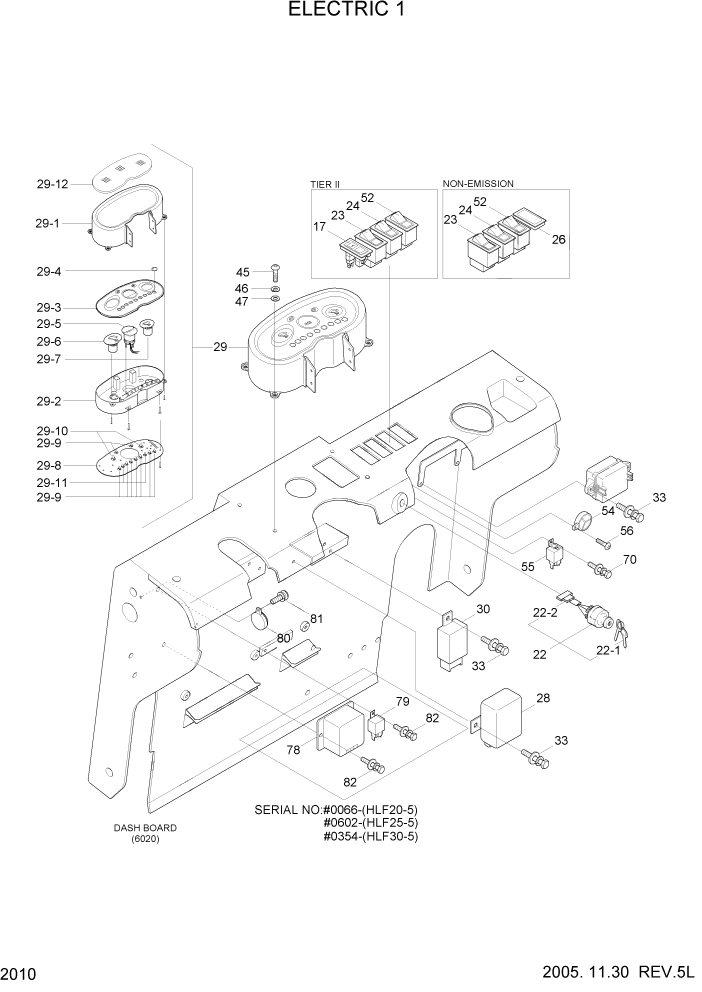

Запчасти Hyundai HLF20/HLF25/HLF30-5 PAGE 2010 ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

17

21FK-10510

LAMP-MIL

TIER II ONLY

1шт.

22

21FJ-10050

SWITCH-START

HLF20-5 #0047

1шт.

22

21FJ-10051

SWITCH-START

HLF20-5 #0048

1шт.

22

21FJ-10050

SWITCH-START

HLF25-5 #0393

1шт.

22

21FJ-10051

SWITCH-START

HLF25-5 #0394

1шт.

22

21FJ-10050

SWITCH-START

HLF30-5 #0241

1шт.

22

21FJ-10051

SWITCH-START

HLF30-5 #0242

1шт.

22-1

21F6-20070

KEY ASSY

HLF20-5 #0047

2шт.

22-1

21FJ-10151

KEY

HLF20-5 #0048

2шт.

22-1

21F6-20070

KEY ASSY

HLF25-5 #0393

2шт.

22-1

21FJ-10151

KEY

HLF20-5 #0394

2шт.

22-1

21F6-20070

KEY ASSY

HLF30-5 #0241

2шт.

22-1

21FJ-10151

KEY

HLF30-5 #0252

2шт.

22-2

21FJ-10060

HARNESS-START SW

1шт.

23

21M8-01120

SWITCH-W/LAMP(12V)

OPT

1шт.

24

21M5-25000

SWITCH-HAZARD

OPT

1шт.

26

21E6-10460

COVER

STD

3шт.

28

F21860011

RELAY-FLASHER

HLF20-5 #0045

1шт.

28

F21860012

RELAY-FLASHER

HLF20-5 #0046

1шт.

28

F21860011

RELAY-FLASHER

HLF25-5 #0361

1шт.

28

F21860012

RELAY-FLASHER

HLF25-5 #0362

1шт.

28

F21860011

RELAY-FLASHER

HLF30-5 #0221

1шт.

28

F21860012

RELAY-FLASHER

HLF30-5 #0222

1шт.

29

21FG-10610

PANEL-OPERATING(12V)

1шт.

N29-1

71FG-20050

COVER-OP PANEL

NOT

1шт.

N29-2

F12870040

CASE-REAR

NOT

1шт.

N29-3

21FG-10720

PANEL-RAISED

NOT

1шт.

N29-4

F12870060

LENS-INDICATOR

NOT

1шт.

N29-5

21FG-10700

METER-HOUR

NOT

1шт.

N29-6

F12870080

METER-WATER TEMP

NOT

1шт.

N29-7

21FG-10710

MOVEMENT-FUEL

NOT

1шт.

N29-8

F12870100

PCB-MAIN BOARD

NOT

1шт.

29-9

265055014

BULB-14V/1.4W

9шт.

29-1

265055034

BULB-14V/3.4W

2шт.

29-11

265055130

BULB-12V/3.0W

2шт.

29-12

F12870030

GLASS-WINDOW

1шт.

30

F12860010

DETECTOR

1шт.

33

S035-061526

BOLT-W/WASHER

5шт.

45

S161-040166

SCREW-RD HD

4шт.

46

S411-040006

WASHER-SPRING

4шт.

47

S403-042006

WASHER-PLAIN

4шт.

52

21M6-00400

SWITCH-BEACON

OPT

1шт.

54

320008040

WARNING BUZZER

OPT

1шт.

55

21E3-0011

RELAY

OPT

1шт.

56

S161-050206

SCREW-RD HD

OPT

1шт.

70

S035-061526

BOLT-W/WASHER

OPT

1шт.

78

21FU-10610

OPS UNIT

HLF20-5 #0066

1шт.

78

21FU-10610

OPS UNIT

HLF25-5 #0602

1шт.

78

21FU-10610

OPS UNIT

HLF30-5 #0354

1шт.

79

21E3-0025

RELAY

HLF20-5 #0066

1шт.

79

21E3-0025

RELAY

HLF25-5 #0602

1шт.

79

21E3-0025

RELAY

HLF30-5 #0354

1шт.

80

320008040

WARNING BUZZER

HLF20-5 #0066

1шт.

80

320008040

WARNING BUZZER

HLF25-5 #0602

1шт.

80

320008040

WARNING BUZZER

HLF30-5 #0354

1шт.

81

S161-050206

SCREW-RD HD

HLF20-5 #0066

1шт.

81

S161-050206

SCREW-RD HD

HLF25-5 #0602

1шт.

81

S161-050206

SCREW-RD HD

HLF30-5 #0354

1шт.

82

S035-061526

BOLT-W/WASHER

HLF20-5 #0066

3шт.

82

S035-061526

BOLT-W/WASHER

HLF25-5 #0602

3шт.

82

S035-061526

BOLT-W/WASHER

HLF30-5 #0354

3шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
