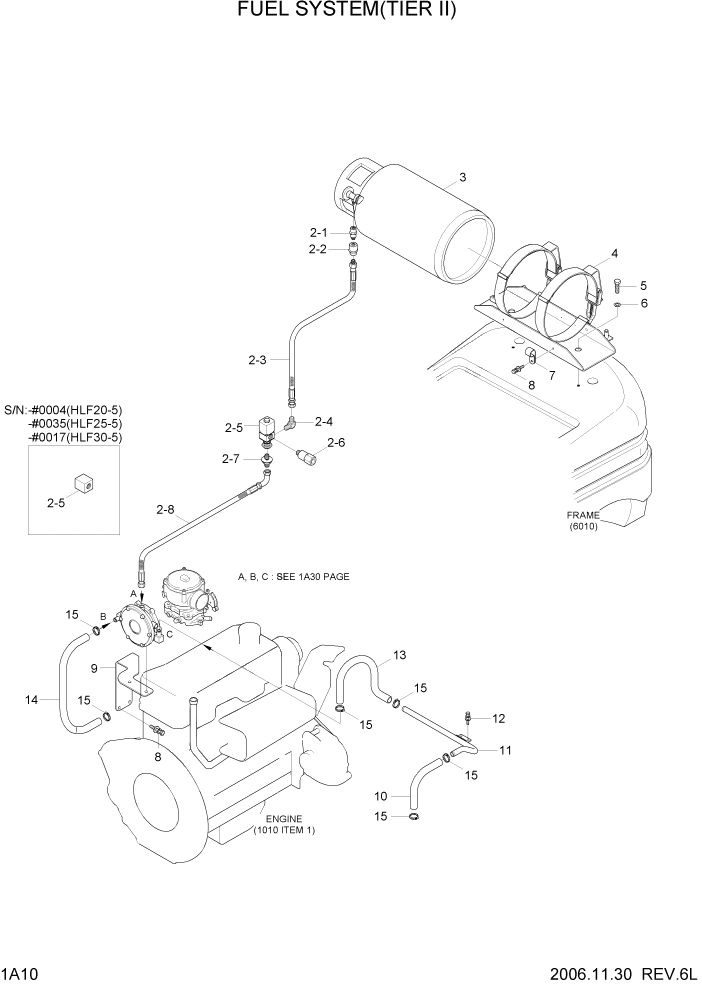

Запчасти Hyundai HLF20/HLF25/HLF30-5 PAGE 1A10 FUEL SYSTEM(TIER II) СИСТЕМА ДВИГАТЕЛЯ

2

11FW-50200

LPG COMMON KIT ASSY

HLF20-5 #0004

1шт.

2

11FW-50201

LPG COMMON KIT ASSY

HLF20-5 #0005 - #0040

1шт.

2

11FW-50202

LPG COMMON KIT ASSY

HLF20-5 #0041

1шт.

2

11FW-50200

LPG COMMON KIT ASSY

HLF25-5 #0035

1шт.

2

11FW-50201

LPG COMMON KIT ASSY

HLF25-5 #0036 - #0268

1шт.

2

11FW-50202

LPG COMMON KIT ASSY

HLF25-5 #0269

1шт.

2

11FW-50200

LPG COMMON KIT ASSY

HLF30-5 #0017

1шт.

2

11FW-50201

LPG COMMON KIT ASSY

HLF30-5 #0018 - #0146

1шт.

2

11FW-50202

LPG COMMON KIT ASSY

HLF30-5 #0147

1шт.

2-1

FBC0200900

COUPLING-MALE

1шт.

2-2

FBC0200600

COUPLING-FEMALE

1шт.

2-3

11FW-50090

HOSE ASSY

HLF20-5 #0040

1шт.

2-3

11FW-50091

HOSE ASSY

HLF20-5 #0041

1шт.

2-3

11FW-50090

HOSE ASSY

HLF25-5 #0268

1шт.

2-3

11FW-50091

HOSE ASSY

HLF25-5 #0269

1шт.

2-3

11FW-50090

HOSE ASSY

HLF30-5 #0146

1шт.

2-3

11FW-50091

HOSE ASSY

HLF30-5 #0147

1шт.

2-4

FBC0200300

ELBOW

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF20-5 #0001 - #0004

1шт.

2-5

11FW-50120

BULKHEAD-FILTER

HLF20-5 #0005

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF25-5 #0001 - #0035

1шт.

2-5

11FW-50120

BULKHEAD-FILTER

HLF25-5 #0036

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF30-5 #0001 - #0017

1шт.

2-5

11FW-50120

BULKHEAD-FILTER

HLF30-5 #0018

1шт.

2-6

FBC0200800

RELIEF VALVE

1шт.

2-7

FBC0200400

ADAPTOR

1шт.

2-8

11FW-50100

HOSE ASSY

HLF20-5 #0040

1шт.

2-8

11FW-50101

HOSE ASSY

HLF20-5 #0041

1шт.

2-8

11FW-50100

HOSE ASSY

HLF25-5 #0268

1шт.

2-8

11FW-50101

HOSE ASSY

HLF25-5 #0269

1шт.

2-8

11FW-50100

HOSE ASSY

HLF30-5 #0146

1шт.

2-8

11FW-50101

HOSE ASSY

HLF30-5 #0147

1шт.

3

FBC0200050-01

TANK-LPG

1шт.

4

11FW-50020

CLAMP ASS'Y

FIX,HLF20-5 #0041

1шт.

4

11FW-50020

CLAMP ASS'Y

FIX,HLF25-5 #0269

1шт.

4

11FW-50020

CLAMP ASS'Y

FIX,HLF30-5 #0147

1шт.

4

11FU-50301

CLAMP ASSY(SWING)

SEE 1041,20-5 #0041

1шт.

4

11FU-50301

CLAMP ASSY(SWING)

SEE 1041,25-5 #0269

1шт.

4

11FU-50301

CLAMP ASSY(SWING)

SEE 1041,30-5 #0147

1шт.

5

S017-240706

BOLT-HEX

2шт.

6

S441-240006

WASHER-HARDENED

2шт.

7

S543-260002

CLAMP-TUBE

2шт.

8

S035-082026

BOLT-W/WASHER

4шт.

9

11FU-50100

BRACKET-REGULATOR

1шт.

10

F23232100

HOSE-WATER

1шт.

11

F53230061

PIPE-WATER

1шт.

12

S035-062026

BOLT-W/WASHER

2шт.

13

11FN-51011

HOSE-WATER IN

1шт.

14

11FN-51021

HOSE-WATER OUT

1шт.

15

S520-027000

CLAMP-HOSE

6шт.
