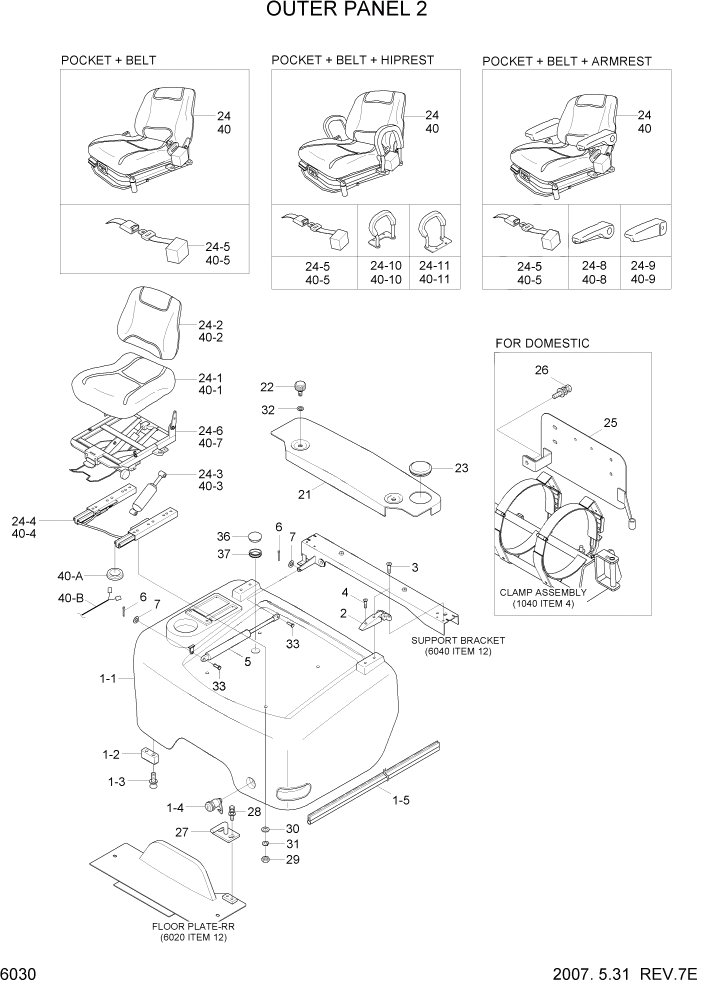

Запчасти Hyundai HLF15/HLF18C-5 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FN-10012

BONNET ASSY

HLF15C-5 #0216

1шт.

1

71FN-10013

BONNET ASSY

HLF15C-5 #0217

1шт.

1

71FN-10012

BONNET ASSY

HLF18C-5 #0070

1шт.

1

71FN-10013

BONNET ASSY

HLF18C-5 #0071

1шт.

1-1

71FN-10102

BONNET

1шт.

1-2

F12100190

CUSHION

2шт.

1-3

S132-061656

SCREW-W/WASHER

4шт.

1-4

FHC0705200

LATCH ASSY

1шт.

1-5

S772-031300

WEATHER STRIP

1шт.

2

ED13020001

HINGE

2шт.

3

S141-060302

SCREW-FLAT HD

6шт.

4

S141-060452

SCREW-FLAT HD

2шт.

5

71FG-10260

GAS SPRING

1шт.

6

S461-200152

PIN-SPLIT

2шт.

7

S403-082006

WASHER-PLAIN

6шт.

21

F31101690

SUB BONNET ASSY

HLF15C-5 #0179

1шт.

21

F31101691

SUB BONNET ASSY

HLF15C-5 #0180

1шт.

21

F31101690

SUB BONNET ASSY

HLF18C-5 #0068

1шт.

21

F31101691

SUB BONNET ASSY

HLF18C-5 #0069

1шт.

22

FBC0900110-01

KNOB

2шт.

23

Q101888000

COVER-RUBBER

1шт.

24

71FG-10520

SEAT ASSY(PKT)

HLF15C-5 #0340

1шт.

24

71FG-10521

SEAT ASSY(PKT)

HLF15C-5 #0341

1шт.

24

71FG-10520

SEAT ASSY(PKT)

HLF18C-5 #0108

1шт.

24

71FG-10521

SEAT ASSY(PKT)

HLF18C-5 #0109

1шт.

24

71FG-10530

SEAT ASSY(PKT+BT)

HLF15C-5 #0340

1шт.

24

71FG-10531

SEAT ASSY(PKT+BT)

HLF15C-5 #0341

1шт.

24

71FG-10530

SEAT ASSY(PKT+BT)

HLF18C-5 #0108

1шт.

24

71FG-10531

SEAT ASSY(PKT+BT)

HLF18C-5 #0109

1шт.

24

71FG-10540

SEAT ASSY(PKT+BT+AR)

HLF15C-5 #0340

1шт.

24

71FG-10541

SEAT ASSY(PKT+BT+AR)

HLF15C-5 #0341

1шт.

24

71FG-10540

SEAT ASSY(PKT+BT+AR)

HLF18C-5 #0108

1шт.

24

71FG-10541

SEAT ASSY(PKT+BT+AR)

HLF18C-5 #0109

1шт.

24

71FG-10550

SEAT ASSY(PKT+BT+HR)

HLF15C-5 #0340

1шт.

24

71FG-10551

SEAT ASSY(PKT+BT+HR)

HLF15C-5 #0341

1шт.

24

71FG-10550

SEAT ASSY(PKT+BT+HR)

HLF18C-5 #0108

1шт.

24

71FG-10551

SEAT ASSY(PKT+BT+HR)

HLF18C-5 #0109

1шт.

24-1

H31013-100

CUSION ASSY

HLF15C-5 #0001 - #0340

1шт.

24-1

H31013-100C

CUSION ASSY

HLF15C-5 #0341

1шт.

24-1

H31013-100

CUSION ASSY

HLF18C-5 #0001 - #0108

1шт.

24-1

H31013-100C

CUSION ASSY

HLF18C-5 #0109

1шт.

24-2

H31013-200

BACK ASSY

HLF15C-5 #0001 - #0340

1шт.

24-2

H31013-200B

BACK ASSY

HLF15C-5 #0341

1шт.

24-2

H31013-200

BACK ASSY

HLF18C-5 #0001 - #0108

1шт.

24-2

H31013-200B

BACK ASSY

HLF18C-5 #0109

1шт.

24-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

24-4

H31013-600

SLIDE TRACK ASSY

HLF15C-5 #0001 - #0340

1шт.

24-4

H31013-600B

SLIDE TRACK ASSY

HLF15C-5 #0341

1шт.

24-4

H31013-600

SLIDE TRACK ASSY

HLF18C-5 #0001 - #0108

1шт.

24-4

H31013-600B

SLIDE TRACK ASSY

HLF18C-5 #0109

1шт.

24-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

24-6

H31023-300

SUSPENSION ASSY

HLF15C-5 #0001 - #0340

1шт.

24-6

H31023-300G

SUSPENSION

HLF15C-5 #0341

1шт.

24-6

H31023-300

SUSPENSION ASSY

HLF18C-5 #0001 - #0108

1шт.

24-6

H31023-300G

SUSPENSION

HLF18C-5 #0109

1шт.

24-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

24-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

24-1

H31010-700

HIP RESTRAINT-LH

WIHT HIP-REST #0001

1шт.

24-11

H31015-700

HIP RESTRAINT-RH

WIHT HIP-REST #0001

1шт.

25

FCC0900200B-01

NUMBER PLATE

KOREA ONLY

1шт.

26

S035-081526

BOLT-W/WASHER

KOREA ONLY

1шт.

27

F12920031

BRACKET-LATCH

1шт.

28

S035-062026

BOLT-W/WASHER

2шт.

29

S205-081006

NUT-HEX

4шт.

30

S403-082006

WASHER-PLAIN

4шт.

31

S411-080006

WASHER-SPRING

4шт.

32

71FE-10170

WASHER-RUBBER

2шт.

33

S491-120352

PIN-CLEVIS

HLF15C-5 #0031

2шт.

33

S491-120352

PIN-CLEVIS

HLF18C-5 #0017

2шт.

36

FHC0904100

RUBBER-STAY

HLF15C-5,OPSS #0217

1шт.

36

FHC0904100

RUBBER-STAY

HLF18C-5,OPSS #0071

1шт.

37

S681-230800

GROMMET

HLF15C-5,OPSS #0217

1шт.

37

S681-230800

GROMMET

HLF18C-5,OPSS #0071

1шт.

40

71FH-10510

SEAT ASSY(PKT)

HLF15C-5,OPSS #0217 - #0340

1шт.

40

71FH-10511

SEAT ASSY(PKT)

HLF15C-5,OPSS #0341

1шт.

40

71FH-10510

SEAT ASSY(PKT)

HLF18C-5,OPSS #0071 - #0108

1шт.

40

71FH-10511

SEAT ASSY(PKT)

HLF18C-5,OPSS #0109

1шт.

40

71FH-10520

SEAT ASSY(PKT+BT)

HLF15C-5,OPSS #0217 - #0340

1шт.

40

71FH-10521

SEAT ASSY(PKT+BT)

HLF15C-5,OPSS #0341

1шт.

40

71FH-10520

SEAT ASSY(PKT+BT)

HLF18C-5,OPSS #0071 - #0108

1шт.

40

71FH-10521

SEAT ASSY(PKT+BT)

HLF18C-5,OPSS #0109

1шт.

40

71FH-10530

SEAT ASSY(PKT+BT+HR)

HLF15C-5,OPSS #0217 - #0340

1шт.

40

71FH-10531

SEAT ASSY(PKT+BT+HR)

HLF15C-5,OPSS #0341

1шт.

40

71FH-10530

SEAT ASSY(PKT+BT+HR)

HLF18C-5,OPSS #0071 - #0108

1шт.

40

71FH-10531

SEAT ASSY(PKT+BT+HR)

HLF18C-5,OPSS #0109

1шт.

40

71FH-10540

SEAT ASSY(PKT+BT+AR)

HLF15C-5,OPSS #0217 - #0340

1шт.

40

71FH-10541

SEAT ASSY(PKT+BT+AR)

HLF15C-5,OPSS #0341

1шт.

40

71FH-10540

SEAT ASSY(PKT+BT+AR)

HLF18C-5,OPSS #0071 - #0108

1шт.

40

71FH-10541

SEAT ASSY(PKT+BT+AR)

HLF18C-5,OPSS #0109

1шт.

40-A

310006540

SWITCH-SEAT

HLF15C-5,OPSS #0217

1шт.

40-A

310006540

SWITCH-SEAT

HLF18C-5,OPSS #0071

1шт.

40-B

B51800050

HARNESS-SEAT

HLF15C-5,OPSS #0217

1шт.

40-B

B51800050

HARNESS-SEAT

HLF18C-5,OPSS #0071

1шт.

40-1

H31013-100

CUSION ASSY

HLF15C-5 #0217 - #0340

1шт.

40-1

H31013-100C

CUSION ASSY

HLF15C-5 #0341

1шт.

40-1

H31013-100

CUSION ASSY

HLF18C-5 #0071 - #0108

1шт.

40-1

H31013-100C

CUSION ASSY

HLF18C-5 #0109

1шт.

40-2

H31013-200

BACK ASSY

HLF15C-5 #0217 - #0340

1шт.

40-2

H31013-200B

BACK ASSY

HLF15C-5 #0341

1шт.

40-2

H31013-200

BACK ASSY

HLF18C-5 #0071 - #0108

1шт.

40-2

H31013-200B

BACK ASSY

HLF18C-5 #0109

1шт.

40-3

H31013-360

SHOCK ABSORBER ASSY

HLF15C-5 #0217

1шт.

40-3

H31013-360

SHOCK ABSORBER ASSY

HLF18C-5 #0071

1шт.

40-4

H31013-600

SLIDE TRACK ASSY

HLF15C-5 #0217 - #0340

1шт.

40-4

H31013-600B

SLIDE TRACK ASSY

HLF15C-5 #0341

1шт.

40-4

H31013-600

SLIDE TRACK ASSY

HLF18C-5 #0071 - #0108

1шт.

40-4

H31013-600B

SLIDE TRACK ASSY

HLF18C-5 #0109

1шт.

40-5

89890-8A610

BELT-SEAT

HLF15C-5, BT #0217

1шт.

40-5

89890-8A610

BELT-SEAT

HLF18C-5, BT #0071

1шт.

40-7

H31023-301

SUSPENSION

HLF15C-5 #0217 - #0340

1шт.

40-7

H31023-301G

SUSPENSION

HLF15C-5 #0341

1шт.

40-7

H31023-301

SUSPENSION

HLF18C-5 #0071 - #0108

1шт.

40-7

H31023-301G

SUSPENSION

HLF18C-5 #0109

1шт.

40-8

H31010-500

ARM RESTRAINT-LH

HLF15C-5, AR #0217

1шт.

40-8

H31010-500

ARM RESTRAINT-LH

HLF18C-5, AR #0071

1шт.

40-9

H31015-500

ARM RESTRAINT-RH

HLF15C-5, AR #0217

1шт.

40-9

H31015-500

ARM RESTRAINT-RH

HLF18C-5, AR #0071

1шт.

40-1

H31010-700

HIP RESTRAINT-LH

HLF15C-5, HR #0217

1шт.

40-1

H31010-700

HIP RESTRAINT-LH

HLF18C-5, HR #0071

1шт.

40-11

H31015-700

HIP RESTRAINT-RH

HLF15C-5, HR #0217

1шт.

40-11

H31015-700

HIP RESTRAINT-RH

HLF18C-5, HR #0071

1шт.
