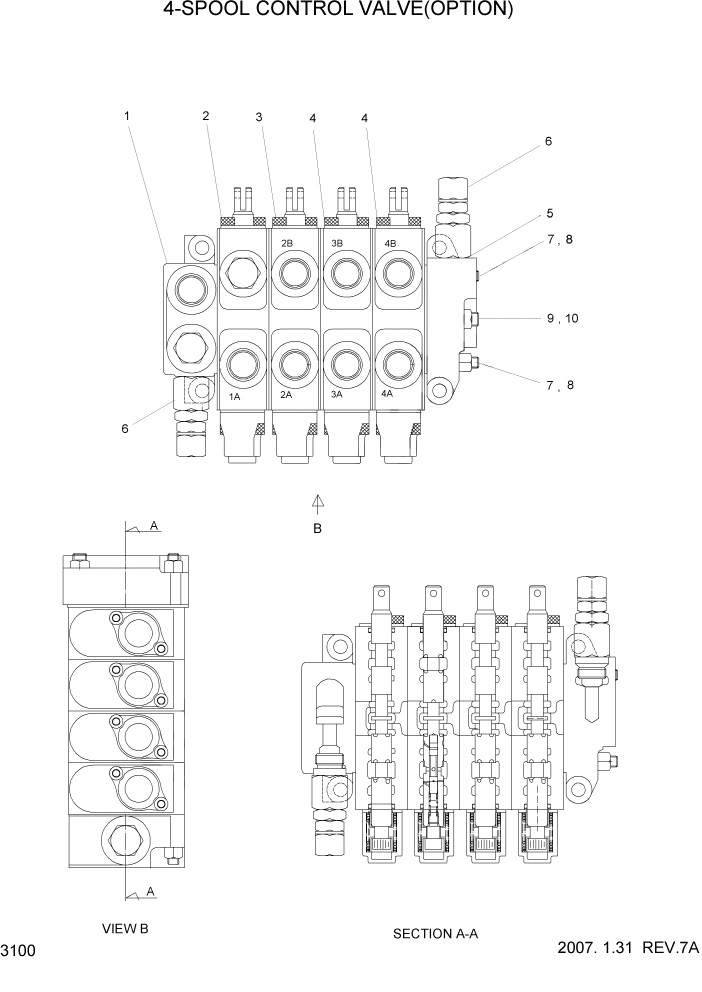

Запчасти Hyundai HLF15/HLF18C-5 PAGE 3100 4-SPOOL CONTROL VALVE(OPTION) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

33FJ-02000

CONTROL VALVE

HLF15C-5 #0012

1шт.

*

33FJ-02001

CONTROL VALVE

HLF15C-5 #0013

1шт.

*

33FJ-02000

CONTROL VALVE

HLF18C-5 #0009

1шт.

*

33FJ-02001

CONTROL VALVE

HLF18C-5 #0010

1шт.

1

XKBF-00240

VALVE INLET SECTION

SEE 3110,15C-5 #0012

1шт.

1

XKBF-00429

INLET SECTION-VALVE

SEE 3110,15C-5 #0013

1шт.

1

XKBF-00240

VALVE INLET SECTION

SEE 3110,18C-5 #0009

1шт.

1

XKBF-00429

INLET SECTION-VALVE

SEE 3110,18C-5 #0010

1шт.

2

XKBF-00241

VALVE LIFT SECTION

SEE 3120,15C-5 #0012

1шт.

2

XKBF-00430

LIFT SECTION-VALVE

SEE 3120,15C-5 #0013

1шт.

2

XKBF-00241

VALVE LIFT SECTION

SEE 3120,18C-5 #0009

1шт.

2

XKBF-00430

LIFT SECTION-VALVE

SEE 3120,18C-5 #0010

1шт.

3

XKBF-00242

VALVE TILT SECTION

SEE 3130,15C-5 #0012

1шт.

3

XKBF-00431

TILT SECTION-VALVE

SEE 3130,15C-5 #0013

1шт.

3

XKBF-00242

VALVE TILT SECTION

SEE 3130,18C-5 #0009

1шт.

3

XKBF-00431

TILT SECTION-VALVE

SEE 3130,18C-5 #0010

1шт.

4

XKBF-00243

VALVE OPTION 1 SECTION

SEE 3140,15C-5 #0012

1шт.

4

XKBF-00432

OPTION 1 SECTION-VALVE

SEE 3140,15C-5 #0013

1шт.

4

XKBF-00243

VALVE OPTION 1 SECTION

SEE 3140,18C-5 #0009

1шт.

4

XKBF-00432

OPTION 1 SECTION-VALVE

SEE 3140,18C-5 #0010

1шт.

4

XKBF-00251

VALVE OPTION 2 SECTION

SEE 3150,15C-5 #0012

1шт.

4

XKBF-00434

OPTION 2 SECTION-VALVE

SEE 3150,15C-5 #0013

1шт.

4

XKBF-00251

VALVE OPTION 2 SECTION

SEE 3150,18C-5 #0009

1шт.

4

XKBF-00434

OPTION 2 SECTION-VALVE

SEE 3150,18C-5 #0010

1шт.

5

XKBF-00244

VALVE OUTLET SECTION

SEE 3160,15C-5 #0012

1шт.

5

XKBF-00433

OUTLET SECTION-VALVE

SEE 3160,15C-5 #0013

1шт.

5

XKBF-00244

VALVE OUTLET SECTION

SEE 3160,18C-5 #0009

1шт.

5

XKBF-00433

OUTLET SECTION-VALVE

SEE 3160,18C-5 #0010

1шт.

6

@

VALVE ASSY-RELIEF

NOT

1шт.

6

@

VALVE ASSY-RELIEF

NOT

1шт.

7

XKBF-00252

ROD

HLF15C-5 #0334

2шт.

7

XKBF-01187

ROD

HLF15C-5 #0335

2шт.

7

XKBF-00252

ROD

HLF18C-5 #0108

2шт.

7

XKBF-01187

ROD

HLF18C-5 #0109

2шт.

8

XKBF-00248

NUT

HLF15C-5 #0012

2шт.

8

XKBF-00248

NUT

HLF15C-5 #0013 - #0334

4шт.

8

XKBF-00566

NUT

HLF15C-5 #0335

4шт.

8

XKBF-00248

NUT

HLF18C-5 #0009

2шт.

8

XKBF-00248

NUT

HLF18C-5 #0010 - #0108

4шт.

8

XKBF-00566

NUT

HLF18C-5 #0109

4шт.

9

XKBF-00253

ROD

HLF15C-5 #0334

1шт.

9

XKBF-01186

ROD

HLF15C-5 #0335

1шт.

9

XKBF-00253

ROD

HLF18C-5 #0108

1шт.

9

XKBF-01186

ROD

HLF18C-5 #0109

1шт.

10

XKBF-00250

NUT

HLF15C-5 #0012

1шт.

10

XKBF-00250

NUT

HLF15C-5 #0013 - #0334

2шт.

10

XKBF-00568

NUT

HLF15C-5 #0335

2шт.

10

XKBF-00250

NUT

HLF18C-5 #0009

1шт.

10

XKBF-00250

NUT

HLF18C-5 #0010 - #0108

2шт.

10

XKBF-00568

NUT

HLF18C-5 #0109

2шт.
