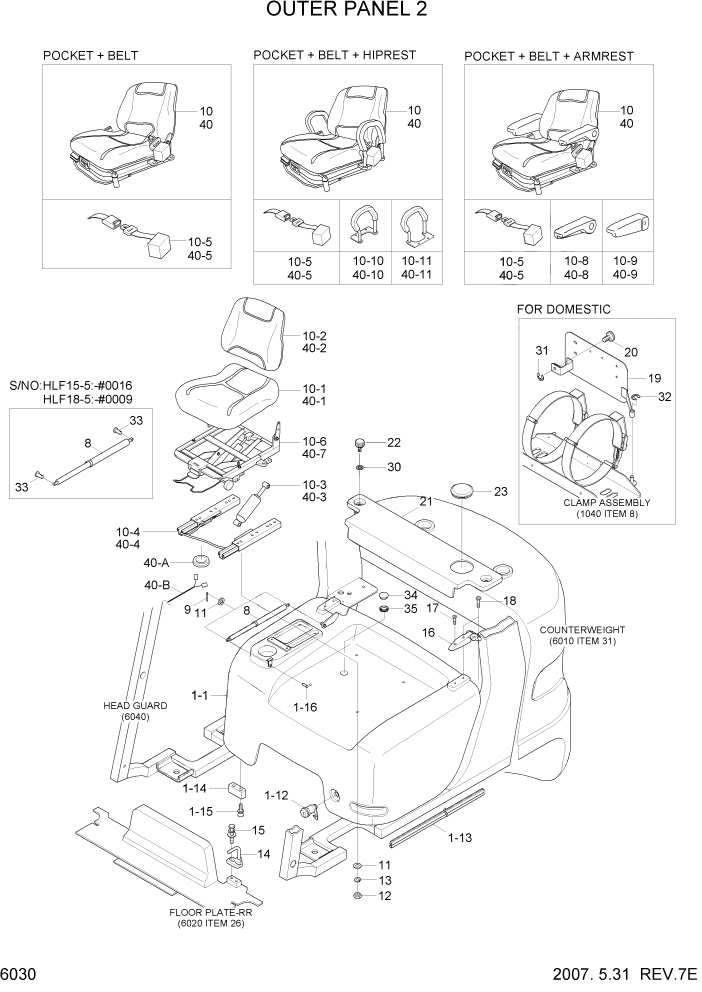

Запчасти Hyundai HLF15/HLF18-5 PAGE 6030 OUTER PANEL 2 СТРУКТУРА
№
Артикул
Название
Примечание
Количество
1
71FW-10012
BONNET ASSY
1шт.
1-1
71FJ-10102
BONNET
1шт.
1-12
FHC0705200
LATCH ASSY
1шт.
1-13
S771-049000
WEATHER STRIP
1шт.
1-14
F12100190
CUSHION
2шт.
1-15
S132-061656
SCREW-W/WASHER
4шт.
8
71FG-10070
GAS SPRING
HLF15-5 #0016
1шт.
8
71FE-10071
GAS SPRING
HLF15-5 #0017
1шт.
8
71FG-10070
GAS SPRING
HLF18-5 #0009
1шт.
8
71FE-10071
GAS SPRING
HLF18-5 #0010
1шт.
9
S461-200156
PIN-SPLIT
2шт.
10
71FG-10520
SEAT ASSY(PKT)
HLF15-5 #0290
1шт.
10
71FG-10521
SEAT ASSY(PKT)
HLF15-5 #0291
1шт.
10
71FG-10520
SEAT ASSY(PKT)
HLF18-5 #0284
1шт.
10
71FG-10521
SEAT ASSY(PKT)
HLF18-5 #0285
1шт.
10
71FG-10530
SEAT ASSY(PKT+BT)
HLF15-5 #0290
1шт.
10
71FG-10531
SEAT ASSY(PKT+BT)
HLF15-5 #0291
1шт.
10
71FG-10530
SEAT ASSY(PKT+BT)
HLF18-5 #0284
1шт.
10
71FG-10531
SEAT ASSY(PKT+BT)
HLF18-5 #0285
1шт.
10
71FG-10540
SEAT ASSY(PKT+BT+AR)
HLF15-5 #0290
1шт.
10
71FG-10541
SEAT ASSY(PKT+BT+AR)
HLF15-5 #0291
1шт.
10
71FG-10540
SEAT ASSY(PKT+BT+AR)
HLF18-5 #0284
1шт.
10
71FG-10541
SEAT ASSY(PKT+BT+AR)
HLF18-5 #0285
1шт.
10
71FG-10550
SEAT ASSY(PKT+BT+HR)
HLF15-5 #0290
1шт.
10
71FG-10551
SEAT ASSY(PKT+BT+HR)
HLF15-5 #0291
1шт.
10
71FG-10550
SEAT ASSY(PKT+BT+HR)
HLF18-5 #0284
1шт.
10
71FG-10551
SEAT ASSY(PKT+BT+HR)
HLF18-5 #0285
1шт.
10-1
H31013-100
CUSION ASSY
HLF15-5 #0001 - #0290
1шт.
10-1
H31013-100C
CUSION ASSY
HLF15-5 #0291
1шт.
10-1
H31013-100
CUSION ASSY
HLF18-5 #0001 - #0284
1шт.
10-1
H31013-100C
CUSION ASSY
HLF18-5 #0285
1шт.
10-2
H31013-200
BACK ASSY
HLF15-5 #0001 - #0290
1шт.
10-2
H31013-200B
BACK ASSY
HLF15-5 #0291
1шт.
10-2
H31013-200
BACK ASSY
HLF18-5 #0001 - #0284
1шт.
10-2
H31013-200B
BACK ASSY
HLF18-5 #0285
1шт.
10-3
H31013-360
SHOCK ABSORBER ASSY
#0001
1шт.
10-4
H31013-600
SLIDE TRACK ASSY
HLF15-5 #0001 - #0290
1шт.
10-4
H31013-600B
SLIDE TRACK ASSY
HLF15-5 #0291
1шт.
10-4
H31013-600
SLIDE TRACK ASSY
HLF18-5 #0001 - #0284
1шт.
10-4
H31013-600B
SLIDE TRACK ASSY
HLF18-5 #0285
1шт.
10-5
89890-8A610
BELT-SEAT
WITH BELT #0001
1шт.
10-6
H31023-300
SUSPENSION ASSY
HLF15-5 #0001 - #0290
1шт.
10-6
H31023-300G
SUSPENSION
HLF15-5 #0291
1шт.
10-6
H31023-300
SUSPENSION ASSY
HLF18-5 #0001 - #0284
1шт.
10-6
H31023-300G
SUSPENSION
HLF18-5 #0285
1шт.
10-8
H31010-500
ARM RESTRAINT-LH
WITH ARM-REST #0001
1шт.
10-9
H31015-500
ARM RESTRAINT-RH
WITH ARM-REST #0001
1шт.
10-1
H31010-700
HIP RESTRAINT-LH
WITH HIP-REST #0001
1шт.
10-11
H31015-700
HIP RESTRAINT-RH
WITH HIP-REST #0001
1шт.
11
S403-082006
WASHER-PLAIN
6шт.
12
S205-081006
NUT-HEX
4шт.
13
S411-080006
WASHER-SPRING
4шт.
14
F12920031
BRACKET-LATCH
1шт.
16
ED13020001
HINGE
2шт.
17
S141-060302
SCREW-FLAT HD
6шт.
18
S141-060452
SCREW-FLAT HD
2шт.
19
71FU-10160
NUMBER PLATE WA
KOREA ONLY
1шт.
20
FBC0900110-01
KNOB
KOREA ONLY
1шт.
21
71FW-10072
SUB BONNET ASSY
HLF15-5 #0098
1шт.
21
71FW-10073
SUB BONNET ASSY
HLF15-5 #0099
1шт.
21
71FW-10072
SUB BONNET ASSY
HLF18-5 #0096
1шт.
21
71FW-10073
SUB BONNET ASSY
HLF18-5 #0097
1шт.
22
FAC0700820-01
KNOB
2шт.
23
Q101888000
COVER-RUBBER
1шт.
30
71FE-10170
WASHER-RUBBER
2шт.
31
P560-070006
RETAINING RING-E TYPE
1шт.
32
P560-120006
RETAINING RING-E TYPE
1шт.
33
S491-120352
PIN-CLEVIS
HLF15-5 #0016
2шт.
33
S491-120352
PIN-CLEVIS
HLF18-5 #0009
2шт.
34
FHC0904100
RUBBER-STAY
HLF15-5,OPSS #0145
1шт.
34
FHC0904100
RUBBER-STAY
HLF18-5,OPSS #0136
1шт.
35
S681-230800
GROMMET
HLF15-5,OPSS #0145
1шт.
35
S681-230800
GROMMET
HLF18-5,OPSS #0136
1шт.
40
71FH-10510
SEAT ASSY(PKT)
HLF15-5,OPSS #0145 - #0290
1шт.
40
71FH-10511
SEAT ASSY(PKT)
HLF15-5,OPSS #0291
1шт.
40
71FH-10510
SEAT ASSY(PKT)
HLF18-5,OPSS #0136 - #0284
1шт.
40
71FH-10511
SEAT ASSY(PKT)
HLF18-5,OPSS #0285
1шт.
40
71FH-10520
SEAT ASSY(PKT+BT)
HLF15-5,OPSS #0145 - #0290
1шт.
40
71FH-10521
SEAT ASSY(PKT+BT)
HLF15-5,OPSS #0291
1шт.
40
71FH-10520
SEAT ASSY(PKT+BT)
HLF18-5,OPSS #0136 - #0284
1шт.
40
71FH-10521
SEAT ASSY(PKT+BT)
HLF18-5,OPSS #0285
1шт.
40
71FH-10530
SEAT ASSY(PKT+BT+HR)
HLF15-5,OPSS #0145 - #0290
1шт.
40
71FH-10531
SEAT ASSY(PKT+BT+HR)
HLF15-5,OPSS #0291
1шт.
40
71FH-10530
SEAT ASSY(PKT+BT+HR)
HLF18-5,OPSS #0136 - #0284
1шт.
40
71FH-10531
SEAT ASSY(PKT+BT+HR)
HLF18-5,OPSS #0285
1шт.
40
71FH-10540
SEAT ASSY(PKT+BT+AR)
HLF15-5,OPSS #0145 - #0290
1шт.
40
71FH-10541
SEAT ASSY(PKT+BT+AR)
HLF15-5,OPSS #0291
1шт.
40
71FH-10540
SEAT ASSY(PKT+BT+AR)
HLF18-5,OPSS #0136 - #0284
1шт.
40
71FH-10541
SEAT ASSY(PKT+BT+AR)
HLF18-5,OPSS #0285
1шт.
40-A
310006540
SWITCH-SEAT
OPSS #0145
1шт.
40-A
310006540
SWITCH-SEAT
OPSS #0136
1шт.
40-B
B51800050
HARNESS-SEAT
#0145
1шт.
40-B
B51800050
HARNESS-SEAT
#0136
1шт.
40-1
H31013-100
CUSION ASSY
HLF15-5 #0145 - #0290
1шт.
40-1
H31013-100C
CUSION ASSY
HLF15-5 #0291
1шт.
40-1
H31013-100
CUSION ASSY
HLF18-5 #0136 - #0284
1шт.
40-1
H31013-100C
CUSION ASSY
HLF18-5 #0285
1шт.
40-2
H31013-200
BACK ASSY
HLF15-5 #0145 - #0290
1шт.
40-2
H31013-200B
BACK ASSY
HLF15-5 #0291
1шт.
40-2
H31013-200
BACK ASSY
HLF18-5 #0136 - #0284
1шт.
40-2
H31013-200B
BACK ASSY
HLF18-5 #0285
1шт.
40-3
H31013-360
SHOCK ABSORBER ASSY
HLF15-5 #0145
1шт.
40-3
H31013-360
SHOCK ABSORBER ASSY
HLF18-5 #0136
1шт.
40-4
H31013-600
SLIDE TRACK ASSY
HLF15-5 #0145 - #0290
1шт.
40-4
H31013-600B
SLIDE TRACK ASSY
HLF15-5 #0291
1шт.
40-4
H31013-600
SLIDE TRACK ASSY
HLF18-5 #0136 - #0284
1шт.
40-4
H31013-600B
SLIDE TRACK ASSY
HLF18-5 #0285
1шт.
40-5
89890-8A610
BELT-SEAT
HLF15-5, BT #0145
1шт.
40-5
89890-8A610
BELT-SEAT
HLF18-5, BT #0136
1шт.
40-7
H31023-301
SUSPENSION
HLF15-5 #0145 - #0290
1шт.
40-7
H31023-301G
SUSPENSION
HLF15-5 #0291
1шт.
40-7
H31023-301
SUSPENSION
HLF18-5 #0136 - #0284
1шт.
40-7
H31023-301G
SUSPENSION
HLF18-5 #0285
1шт.
40-8
H31010-500
ARM RESTRAINT-LH
HLF15-5, AR #0145
1шт.
40-8
H31010-500
ARM RESTRAINT-LH
HLF18-5, AR #0136
1шт.
40-9
H31015-500
ARM RESTRAINT-RH
HLF15-5, AR #0145
1шт.
40-9
H31015-500
ARM RESTRAINT-RH
HLF18-5, AR #0136
1шт.
40-1
H31010-700
HIP RESTRAINT-LH
HLF15-5, HR #0145
1шт.
40-1
H31010-700
HIP RESTRAINT-LH
HLF18-5, HR #0136
1шт.
40-11
H31015-700
HIP RESTRAINT-RH
HLF15-5, HR #0145
1шт.
40-11
H31015-700
HIP RESTRAINT-RH
HLF18-5, HR #0136
1шт.
Выбрано товаров: 124
