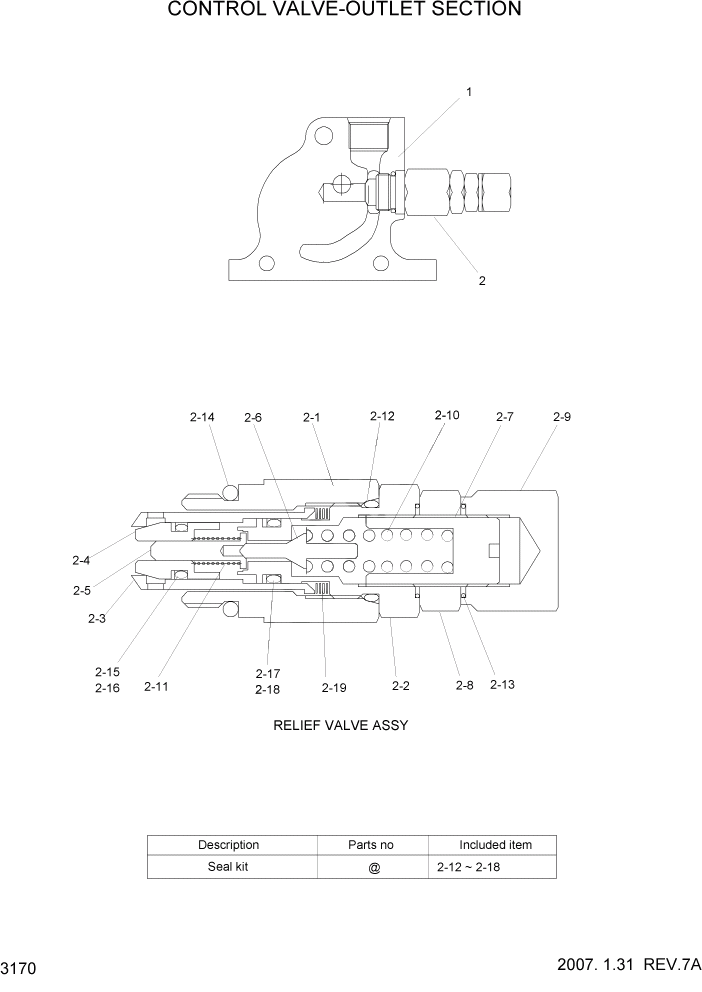

Запчасти Hyundai HLF15/HLF18-5 PAGE 3170 CONTROL VALVE-OUTLET SECTION ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

OUTLET SECTION-VALVE

NOT

1шт.

1

XKBF-00438

OUTLET HOUSING

#0001

1шт.

2

XKBF-00440

RELIEF VALVE ASS'Y

AUX RELIEF,15 #0001 - #0257

1шт.

2

XKBF-00865

RELIEF VALVE ASSY

AUX RELIEF,15 #0258

1шт.

2

XKBF-00440

RELIEF VALVE ASS'Y

AUX RELIEF,18 #0001 - #0257

1шт.

2

XKBF-00865

RELIEF VALVE ASSY

AUX RELIEF,18 #0258

1шт.

2-1

XKBF-00255

HOUSING

1шт.

2-2

XKBF-00256

BODY

1шт.

2-3

XKBF-00257

SOCKET

1шт.

2-4

XKBF-00258

MAIN POPPET

1шт.

2-5

XKBF-00315

PLUNGER

#0001

1шт.

2-6

XKBF-00260

PILOT POPPET

1шт.

2-7

XKBF-00261

ADJUST SCREW

1шт.

2-8

XKBF-00262

NUT

1шт.

2-9

XKBF-00263

CAP NUT

1шт.

2-1

XKBF-00264

PILOT SPRING

1шт.

2-11

XKBF-00265

MAIN SPRING

1шт.

K2-12

XKBF-00266

O-RING

1шт.

K2-13

XKBF-00267

O-RING SEAL

2шт.

K2-14

XKBF-00268

O-RING SEAL

1шт.

K2-15

XKBF-00269

O-RING

1шт.

K2-16

XKBF-00270

BACK UP RING

1шт.

K2-17

XKBF-00271

O-RING SEAL

1шт.

K2-18

XKBF-00272

BACK UP RING

1шт.

2-19

XKBF-00273

WAVE WASHER

1шт.

K

@

SEAL KIT

NOT #0001

1шт.
