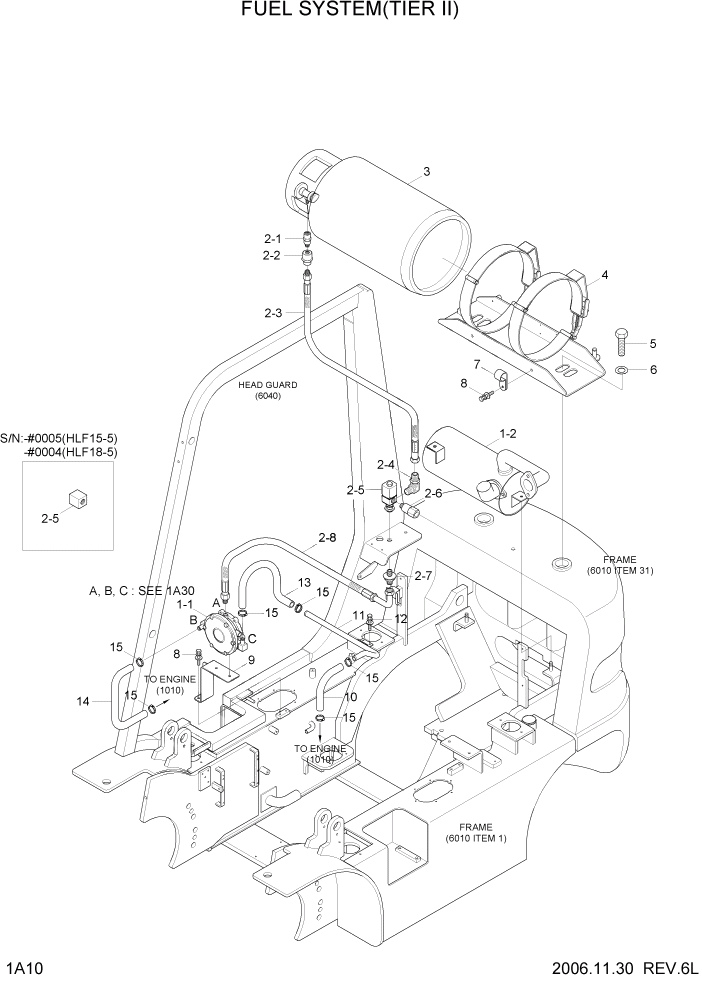

Запчасти Hyundai HLF15/HLF18-5 PAGE 1A10 FUEL SYSTEM(TIER II) СИСТЕМА ДВИГАТЕЛЯ

1

11FW-60000

FUEL KITS & MUFFLER

1шт.

1-1

@

LPG KIT ASSY

NOT

1шт.

1-2

@

MUFFLER WA

NOT

1шт.

2

11FW-50200

LPG COMMON KIT ASSY

HLF15-5 #0005

1шт.

2

11FW-50201

LPG COMMON KIT ASSY

HLF15-5 #0006 - #0076

1шт.

2

11FW-50202

LPG COMMON KIT ASSY

HLF15-5 #0077

1шт.

2

11FW-50200

LPG COMMON KIT ASSY

HLF18-5 #0004

1шт.

2

11FW-50201

LPG COMMON KIT ASSY

HLF18-5 #0005 - #0062

1шт.

2

11FW-50202

LPG COMMON KIT ASSY

HLF18-5 #0063

1шт.

2-1

FBC0200900

COUPLING-MALE

1шт.

2-2

FBC0200600

COUPLING-FEMALE

1шт.

2-3

11FW-50090

HOSE ASSY

HLF15-5 #0076

1шт.

2-3

11FW-50091

HOSE ASSY

HLF15-5 #0077

1шт.

2-3

11FW-50090

HOSE ASSY

HLF18-5 #0062

1шт.

2-3

11FW-50091

HOSE ASSY

HLF18-5 #0063

1шт.

2-4

FBC0200300

ELBOW

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF15-5 #0001 - #0005

1шт.

2-5

11FW-50120

BULKHEAD-FILTER

HLF15-5 #0006

1шт.

2-5

11FW-50110

BULKHEAD-FILTER

HLF18-5 #0001 - #0004

1шт.

2-5

11FW-50120

BULKHEAD-FILTER

HLF18-5 #0005

1шт.

2-6

FBC0200800

RELIEF VALVE

1шт.

2-7

FBC0200400

ADAPTOR

1шт.

2-8

11FW-50100

HOSE ASSY

HLF15-5 #0076

1шт.

2-8

11FW-50101

HOSE ASSY

HLF15-5 #0077

1шт.

2-8

11FW-50100

HOSE ASSY

HLF18-5 #0062

1шт.

2-8

11FW-50101

HOSE ASSY

HLF18-5 #0063

1шт.

3

FBC0200050-01

TANK-LPG

1шт.

4

11FW-50020

CLAMP ASS'Y

FIX,HLF15-5 #0077

1шт.

4

11FW-50020

CLAMP ASS'Y

FIX,HLF18-5 #0063

1шт.

4

11FU-50301

CLAMP ASSY(SWING)

SEE 1041,15-5 #0077

1шт.

4

11FU-50301

CLAMP ASSY(SWING)

SEE 1041,18-5 #0063

1шт.

5

S017-240706

BOLT-HEX

2шт.

6

S441-240006

WASHER-HARDENED

2шт.

7

S543-260002

CLAMP-TUBE

2шт.

8

S035-082026

BOLT-W/WASHER

4шт.

9

11FW-50081

BRKT-REGULATOR

1шт.

10

F23232100

HOSE-WATER

1шт.

11

F53230061

PIPE-WATER

1шт.

12

S035-061526

BOLT-W/WASHER

2шт.

13

11FN-51011

HOSE-WATER IN

1шт.

14

11FN-51021

HOSE-WATER OUT

1шт.

15

S520-027000

CLAMP-HOSE

6шт.
