Запчасти Hyundai 20/25/30LC-7 PAGE 6020 OUTER PANEL 1 СТРУКТУРА

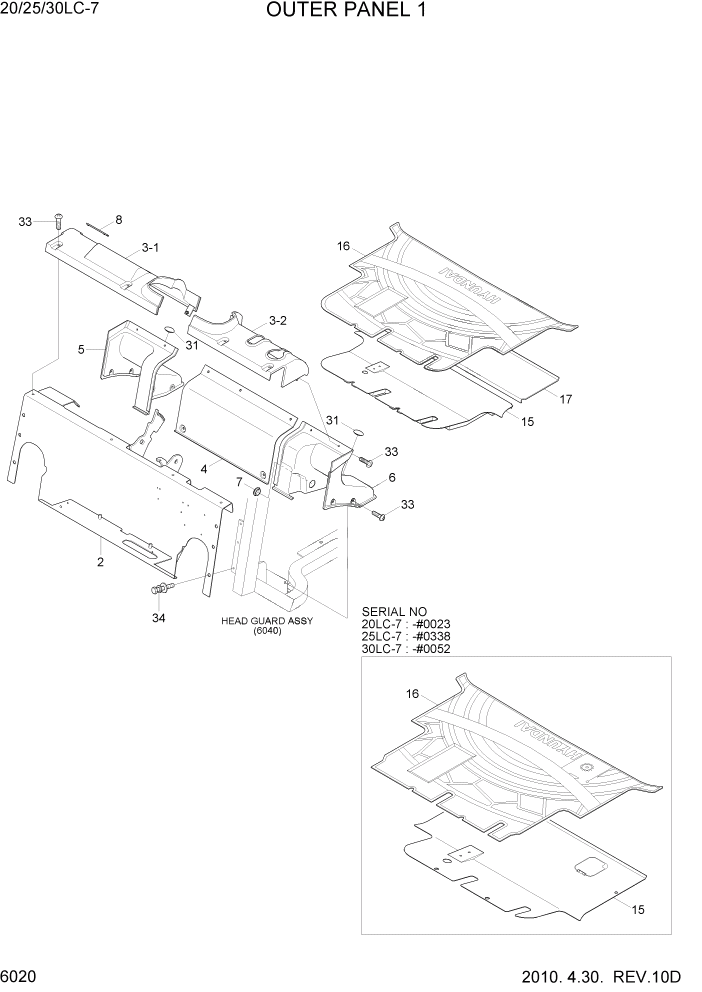

Схема запчастей Hyundai 20/25/30LC-7 - PAGE 6020 OUTER PANEL 1 СТРУКТУРА

Артикул

Название

Примечание

Количество

2

71HA-10202

DASH BOARD WA

20LC #0013

1шт.

2

71HM-10201

DASH BOARD WA

20LC #0014

1шт.

2

71HA-10202

DASH BOARD WA

25LC #0189

1шт.

2

71HM-10201

DASH BOARD WA

25LC #0190

1шт.

2

71HA-10202

DASH BOARD WA

30LC #0018

1шт.

2

71HM-10201

DASH BOARD WA

30LC #0019

1шт.

3

71HA-10412

COVER-DASH BOARD

20LC #0013

1шт.

3

71HA-10413

COVER-DASH BOARD

20LC #0014

1шт.

3

71HA-10412

COVER-DASH BOARD

25LC #0189

1шт.

3

71HA-10413

COVER-DASH BOARD

25LC #0190

1шт.

3

71HA-10412

COVER-DASH BOARD

30LC #0018

1шт.

3

71HA-10413

COVER-DASH BOARD

30LC #0019

1шт.

3-1

71HA-10470

COVER-RH

20LC #0013

1шт.

3-1

71HA-10471

COVER-RH

20LC #0014

1шт.

3-1

71HA-10470

COVER-RH

25LC #0189

1шт.

3-1

71HA-10471

COVER-RH

25LC #0190

1шт.

3-1

71HA-10470

COVER-RH

30LC #0018

1шт.

3-1

71HA-10471

COVER-RH

30LC #0019

1шт.

3-2

71HA-10480

COVER-LH

20LC #0013

1шт.

3-2

71HA-10481

COVER-LH

20LC #0014

1шт.

3-2

71HA-10480

COVER-LH

25LC #0189

1шт.

3-2

71HA-10481

COVER-LH

25LC #0190

1шт.

3-2

71HA-10480

COVER-LH

30LC #0018

1шт.

3-2

71HA-10481

COVER-LH

30LC #0019

1шт.

4

71HA-10422

COVER

1шт.

5

71HC-10431

TILT COVER-RH

1шт.

6

71HC-10441

TILT COVER-LH

1шт.

7

S661-120300

CAP-RUBBER

2шт.

8

71HA-10462

COVER-FUSE BOX

1шт.

15

71HC-11011

FLOOR PLATE ASSY

20LC #0017

1шт.

15

75HC-11100

FLOOR ASSY-FR

20LC #0018 - #0023

1шт.

15

75HH-11100

FLOOR ASSY-FR

20LC #0024

1шт.

15

71HC-11011

FLOOR PLATE ASSY

25LC #0322

1шт.

15

75HC-11100

FLOOR ASSY-FR

25LC #0323 - #0338

1шт.

15

75HC-11100

FLOOR ASSY-FR

25LC #0339

1шт.

15

71HC-11011

FLOOR PLATE ASSY

30LC #0049

1шт.

15

75HC-11100

FLOOR ASSY-FR

30LC #0050 - #0052

1шт.

15

75HC-11100

FLOOR ASSY-FR

30LC #0053

1шт.

16

71HC-11021

MAT-FLOOR

20LC #0023

1шт.

16

75HH-11400

MAT-FLOOR

20LC #0024

1шт.

16

71HC-11021

MAT-FLOOR

25LC #0338

1шт.

16

75HH-11400

MAT-FLOOR

25LC #0339

1шт.

16

71HC-11021

MAT-FLOOR

30LC #0052

1шт.

16

75HH-11400

MAT-FLOOR

30LC #0053

1шт.

17

75HC-11300

FLOOR ASSY-RR

20LC #0018 - #0023

1шт.

17

75HC-11300

FLOOR ASSY-RR

20LC #0024

1шт.

17

75HC-11300

FLOOR ASSY-RR

25LC #0323 - #0338

1шт.

17

75HC-11300

FLOOR ASSY-RR

25LC #0339

1шт.

17

75HC-11300

FLOOR ASSY-RR

30LC #0050 - #0052

1шт.

17

75HC-11300

FLOOR ASSY-RR

30LC #0053

1шт.

31

FHC0904100

RUBBER-STAY

2шт.

33

S132-061526

SCREW-W/WASHER

16шт.

34

S035-102526

BOLT-W/WASHER

6шт.

44

75HC-11300

FLOOR ASSY-RR

20LC #0018

1шт.

44

75HC-11300

FLOOR ASSY-RR

25LC #0323

1шт.

44

75HC-11300

FLOOR ASSY-RR

30LC #0050

1шт.

Выбрано товаров: 56
