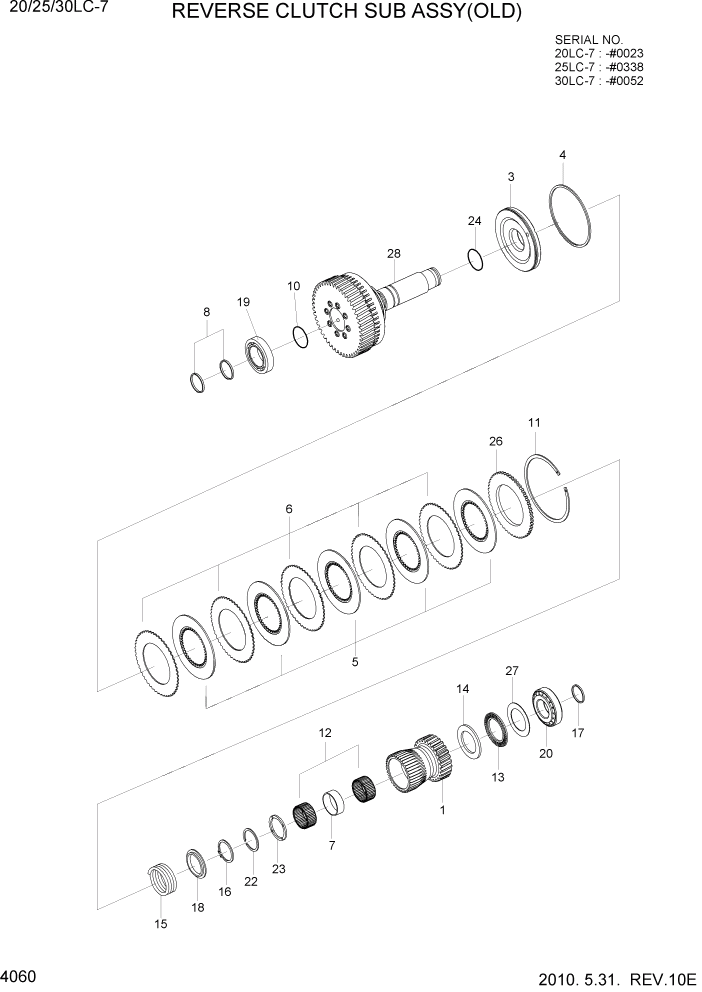

Запчасти Hyundai 20/25/30LC-7 PAGE 4060 REVERSE CLUTCH SUB ASSY(OLD) СИЛОВАЯ СИСТЕМА

*

@

TRANSMISSION ASSY

NOT

1шт.

1

XKCF-00085

REVERSE C/L GEAR

20LC #0010

1шт.

1

XKCF-00352

REVERSE C/L GEAR

20LC #0011 - #0016

1шт.

1

XKCF-00085

REVERSE C/L GEAR

20LC #0017

1шт.

1

XKCF-00085

REVERSE C/L GEAR

25LC #0139

1шт.

1

XKCF-00352

REVERSE C/L GEAR

25LC #0140 - #0269

1шт.

1

XKCF-00085

REVERSE C/L GEAR

25LC #0270

1шт.

1

XKCF-00085

REVERSE C/L GEAR

30LC #0014

1шт.

1

XKCF-00352

REVERSE C/L GEAR

30LC #0015 - #0038

1шт.

1

XKCF-00085

REVERSE C/L GEAR

30LC #0039

1шт.

2

XKCF-00086

REVERSE SHAFT

1шт.

3

XKCF-00058

PISTON

20LC #0014

1шт.

3

XKCF-00371

PISTON

20LC #0015 - #0016

1шт.

3

XKCF-00380

PISTON

20LC #0017

1шт.

3

XKCF-00058

PISTON

25LC #0251

1шт.

3

XKCF-00371

PISTON

25LC #0252 - #0265

1шт.

3

XKCF-00380

PISTON

25LC #0266

1шт.

3

XKCF-00058

PISTON

30LC #0025

1шт.

3

XKCF-00371

PISTON

30LC #0026 - #0036

1шт.

3

XKCF-00380

PISTON

30LC #0037

1шт.

4

XKCF-00059

PISTON RING

20LC #0014

1шт.

4

XKCF-00372

RING-PISTON

20LC #0015

1шт.

4

XKCF-00059

PISTON RING

25LC #0251

1шт.

4

XKCF-00372

RING-PISTON

25LC #0252

1шт.

4

XKCF-00059

PISTON RING

30LC #0025

1шт.

4

XKCF-00372

RING-PISTON

30LC #0026

1шт.

5

XKCF-00060

PLATE-FRICTION

5шт.

6

XKCF-00061

PLATE

5шт.

7

XKCF-00062

SPACER

1шт.

8

XKCF-00087

RING-SEAL

2шт.

9

XKCF-00088

RIVET

8шт.

10

XKCF-00089

O-RING

1шт.

11

XKCF-00064

RING-SNAP

1шт.

12

XKCF-00065

BEARING-NEEDLE

2шт.

13

XKCF-00066

THRUST-NEEDLE BEARING

1шт.

14

XKCF-00067

THRUST WASHER

1шт.

15

XKCF-00068

SPRING-C/L

20LC #0016

1шт.

15

XKCF-00379

SPRING-C/L

20LC #0017

1шт.

15

XKCF-00068

SPRING-C/L

25LC #0265

1шт.

15

XKCF-00379

SPRING-C/L

25LC #0266

1шт.

15

XKCF-00068

SPRING-C/L

30LC #0035

1шт.

15

XKCF-00379

SPRING-C/L

30LC #0037

1шт.

16

XKCF-00069

SNAP RING-SPRING C/L

1шт.

17

XKCF-00070

SEAL RING-SMALL

1шт.

18

XKCF-00071

COVER-SPRING C/L

1шт.

19

XKCF-00090

BEARING-TAPER ROLLER

1шт.

20

XKCF-00072

BEARING-TAPER ROLLER

1шт.

21

XKCF-00091

REVERSE DRUM GEAR

1шт.

22

XKCF-00612

RING-SNAP

#0001

1шт.

23

XKCF-00078

WASHER-THRUST

1шт.

24

XKCF-00079

O-RING

1шт.

25

XKCF-00082

AV-SEAL

1шт.

26

XKCF-00083

PLATE-SIDE

1шт.

27

XKCF-00351

WASHER-THRUST

20LC #0011

1шт.

27

XKCF-00351

WASHER-THRUST

25LC #0140

1шт.

27

XKCF-00351

WASHER-THRUST

30LC #0015

1шт.

28

XKCF-00373

DRUM SUB ASSY-REVERSE

1шт.
