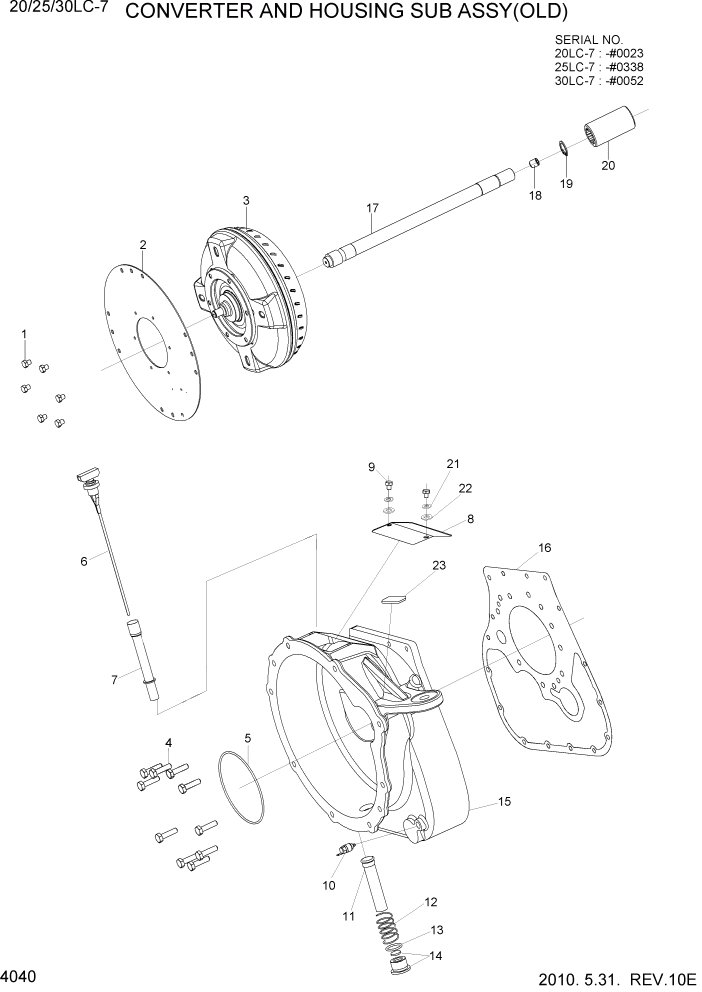

Запчасти Hyundai 20/25/30LC-7 PAGE 4040 CONVERTER & HOUSING SUB ASSY(OLD) СИЛОВАЯ СИСТЕМА

*

@

TRANSMISSION ASSY

NOT

1шт.

1

XKCF-00041

BOLT-HEX

6шт.

2

XKCF-00042

PLATE-FLEXIBLE

1шт.

3

XKCF-00043

R/PLATE

1шт.

3

XKCF-00044

T/CONVERTER ASSY

20LC #0010

1шт.

3

XKCF-00344

T/CONVERTER ASSY

20LC #0011 - #0016

1шт.

3

XKCF-00359

T/CONVERTER ASSY

20LC #0017

1шт.

3

XKCF-00044

T/CONVERTER ASSY

25LC #0139

1шт.

3

XKCF-00344

T/CONVERTER ASSY

25LC #0140 - #0269

1шт.

3

XKCF-00359

T/CONVERTER ASSY

25LC #0270

1шт.

3

XKCF-00044

T/CONVERTER ASSY

30LC #0014

1шт.

3

XKCF-00344

T/CONVERTER ASSY

30LC #0015 - #0038

1шт.

3

XKCF-00359

T/CONVERTER ASSY

30LC #0039

1шт.

4

XKCF-00045

BOLT-HEX,S/W

11шт.

5

XKCF-00046

O-RING

1шт.

6

XKCF-00047

OIL LEVEL GAUGE

1шт.

7

XKCF-00048

GUIDE-OIL LEVEL GAUGE

1шт.

8

XKCF-00049

COVER-T/C

1шт.

9

XKCF-00050

BOLT-HEX

2шт.

10

XKCF-00200

TEMP-SENSOR

1шт.

11

XKCF-00051

INNER OIL STRAINER

1шт.

12

XKCF-00052

OIL STRAINER SPRING

1шт.

13

XKCF-00053

O-RING

1шт.

14

XKCF-00054

OIL STRAINER PLUG

1шт.

15

XKCF-00055

HOUSING-T/C

1шт.

16

XKCF-00199

GASKET-T/C HOUSING

20LC #0007

1шт.

16

XKCF-00199

GASKET-T/C HOUSING

25LC #0081

1шт.

16

XKCF-00199

GASKET-T/C HOUSING

30LC #0011

1шт.

17

XKCF-00345

SHAFT-PTO

20LC #0011

1шт.

17

XKCF-00345

SHAFT-PTO

25LC #0140

1шт.

17

XKCF-00345

SHAFT-PTO

30LC #0015

1шт.

18

XKCF-00346

PLUG

20LC #0011

1шт.

18

XKCF-00346

PLUG

25LC #0140

1шт.

18

XKCF-00346

PLUG

30LC #0015

1шт.

19

S602-016004

RING-RETAINING

20LC #0011

1шт.

19

S602-016004

RING-RETAINING

25LC #0140

1шт.

19

S602-016004

RING-RETAINING

30LC #0015

1шт.

20

XKCF-00348

SOCKET GEAR

20LC #0011

1шт.

20

XKCF-00348

SOCKET GEAR

25LC #0140

1шт.

20

XKCF-00348

SOCKET GEAR

30LC #0015

1шт.

21

S411-080002

WASHER-SPRING

20LC #0011

2шт.

21

S411-080002

WASHER-SPRING

25LC #0140

2шт.

21

S411-080002

WASHER-SPRING

30LC #0015

2шт.

22

S403-081002

WASHER-PLAIN

20LC #0011

2шт.

22

S403-081002

WASHER-PLAIN

25LC #0140

2шт.

22

S403-081002

WASHER-PLAIN

30LC #0015

2шт.

23

XKCF-00349

NAME PLATE

20LC #0011

1шт.

23

XKCF-00349

NAME PLATE

25LC #0140

1шт.

23

XKCF-00349

NAME PLATE

30LC #0015

1шт.
