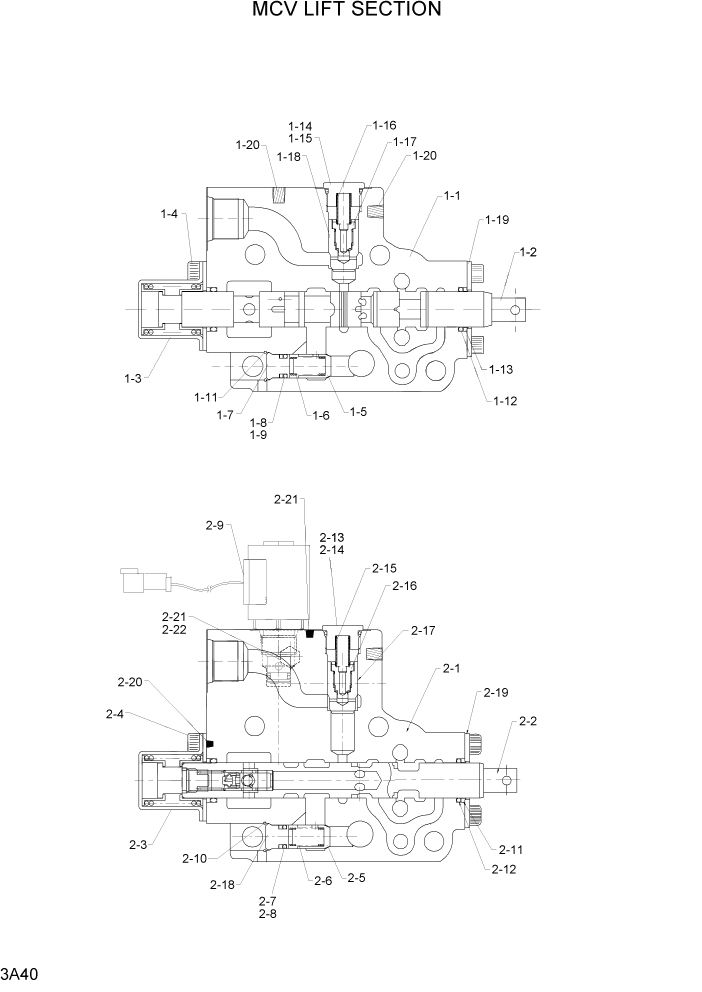

Запчасти Hyundai 20/25/30LC-7 PAGE 3A40 MCV LIFT SECTION ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

XKBF-01034

LIFT BLOCK ASSY

SEE 3A20-3A30

1шт.

1-1

XKBF-01020

WORK BLOCK-LIFT

1шт.

1-2

XKBF-01035

SPOOL ASSY-LIFT

SEE ILLUST

1шт.

1-3

XKBF-01011

RETURN CAP

1шт.

1-4

XKBF-00694

WRENCH BOLT

4шт.

1-5

XKBF-01012

POPPET-LOAD C/V

1шт.

1-6

XKBF-01013

SPRING-LOAD CHECK

1шт.

1-7

XKBF-01017

PLUG-ADJUST

1шт.

1-8

XKBF-01015

O-RING

1шт.

1-9

XKBF-01016

BACK UP RING

1шт.

1-11

XKBF-01018

C-RING

1шт.

K1-12

XKBF-01004

O-RING

SEE 3A20-3A30

1шт.

K1-13

XKBF-01005

WIPER-DUST

SEE 3A20-3A30

1шт.

1-14

XKBF-01022

PLUG-CHECK V/V

1шт.

1-15

XKBF-00604

O-RING

1шт.

1-16

XKBF-00906

SPRING

1шт.

1-17

XKBF-01023

RESTRICTOR HOLDING

1шт.

1-18

XKBF-01024

POPPET-CHECK

1шт.

1-19

XKBF-01019

PLATE-SEAL

1шт.

1-2

XKBF-00728

PLUG

2шт.

2

XKBF-01039

LIFT BLOCK ASSY

SEE 3A20-3A30

1шт.

2-1

XKBF-01038

HOUSING-P1

1шт.

2-2

XKBF-01035

SPOOL ASSY-LIFT

SEE ILLUST

1шт.

2-3

XKBF-01011

RETURN CAP

1шт.

2-4

XKBF-00694

WRENCH BOLT

4шт.

2-5

XKBF-01012

POPPET-LOAD C/V

1шт.

2-6

XKBF-01013

SPRING-LOAD CHECK

1шт.

2-7

XKBF-01015

O-RING

1шт.

2-8

XKBF-01016

BACK UP RING

1шт.

2-9

XKBF-01194

SOLENOID V/V

1шт.

2-1

XKBF-01018

C-RING

1шт.

K2-11

XKBF-01004

O-RING

SEE 3A20-3A30

1шт.

K2-12

XKBF-01005

WIPER-DUST

SEE 3A20-3A30

1шт.

2-13

XKBF-01022

PLUG-CHECK V/V

1шт.

2-14

XKBF-00604

O-RING

1шт.

2-15

XKBF-00906

SPRING

1шт.

2-16

XKBF-01023

RESTRICTOR HOLDING

1шт.

2-17

XKBF-01195

POPPET-CHECK

1шт.

2-18

XKBF-01017

PLUG-ADJUST

1шт.

2-19

XKBF-01019

PLATE-SEAL

1шт.

2-2

XKBF-00728

PLUG

2шт.

2-21

XKBF-01040

PLUG-EMERGENCY

1шт.

2-22

XKBF-01041

O-RING

1шт.
