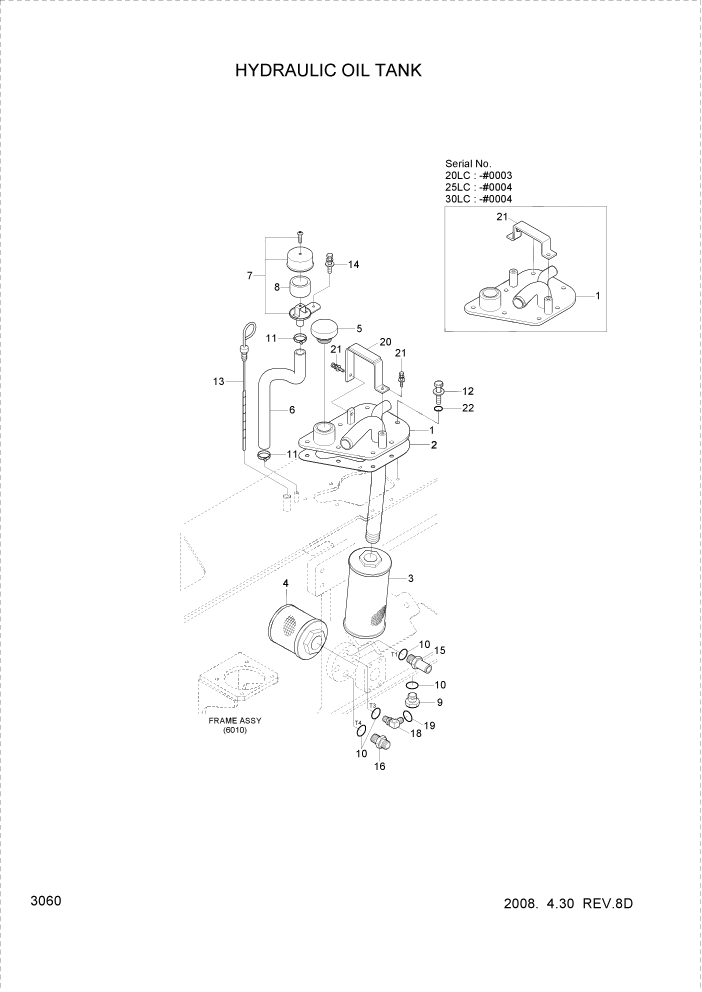

Запчасти Hyundai 20/25/30LC-7 PAGE 3060 HYDRAULIC OIL TANK ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31HC-30015

FLANGE WA-HYD TANK

20LC-7 #0003

1шт.

1

31HC-30016

FLANGE WA-HYD TANK

20LC-7 #0004

1шт.

1

31HC-30015

FLANGE WA-HYD TANK

25LC-7 #0004

1шт.

1

31HC-30016

FLANGE WA-HYD TANK

25LC-7 #0005

1шт.

1

31HC-30015

FLANGE WA-HYD TANK

30LC-7 #0004

1шт.

1

31HC-30016

FLANGE WA-HYD TANK

30LC-7 #0005

1шт.

2

31HA-30020

GASKET-HYD TANK

1шт.

3

F42650010

FILTER-RETURN

1шт.

4

FHC1007100

STRAINER-SUCTION

1шт.

5

31HA-30050

CAP-HYD OIL

20LC-7 #0010

1шт.

5

31HA-30051

CAP-HYD TANK

20LC-7 #0011

1шт.

5

31HA-30050

CAP-HYD OIL

25LC-7 #0139

1шт.

5

31HA-30051

CAP-HYD TANK

25LC-7 #0140

1шт.

5

31HA-30050

CAP-HYD OIL

30LC-7 #0014

1шт.

5

31HA-30051

CAP-HYD TANK

30LC-7 #0015

1шт.

6

31HC-30030

HOSE-A/BREATHER

1шт.

7

31FV-30031

CAP-AIR BREATHER

1шт.

8

F23650200

FILTER-AIR BREATHER

1шт.

9

31FA-30430

PLUG-MAGNETIC

20LC-7 #0004

1шт.

9

31HM-30020

PLUG-MAGNETIC

20LC-7 #0005

1шт.

9

31FA-30430

PLUG-MAGNETIC

25LC-7 #0021

1шт.

9

31HM-30020

PLUG-MAGNETIC

25LC-7 #0022

1шт.

9

31FA-30430

PLUG-MAGNETIC

30LC-7 #0004

1шт.

9

31HM-30020

PLUG-MAGNETIC

30LC-7 #0005

1шт.

10

S631-014004

O-RING

5шт.

11

S520-027000

CLAMP-HOSE

2шт.

12

31HA-30041

BOLT-HEX,FLANGE

7шт.

13

31HA-30060

DIPSTICK-HYD TANK

1шт.

14

S035-061526

BOLT-W/WASHER

1шт.

15

31HA-20160

CONNECTOR-BULK HOSE

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

1шт.

18

X520-110012

ELBOW-90,ORFS

1шт.

19

S621-012001

O-RING(SEAL LOCK TYPE)

1шт.

20

31HC-30020

CLAMP-BATTERY

20LC-7 #0003

1шт.

20

31HC-30021

CLAMP-BATTERY

20LC-7 #0004

1шт.

20

31HC-30020

CLAMP-BATTERY

25LC-7 #0004

1шт.

20

31HC-30021

CLAMP-BATTERY

25LC-7 #0005

1шт.

20

31HC-30020

CLAMP-BATTERY

30LC-7 #0004

1шт.

20

31HC-30021

CLAMP-BATTERY

30LC-7 #0005

1шт.

21

S035-082026

BOLT-W/WASHER

3шт.

22

S631-008004

O-RING

7шт.
