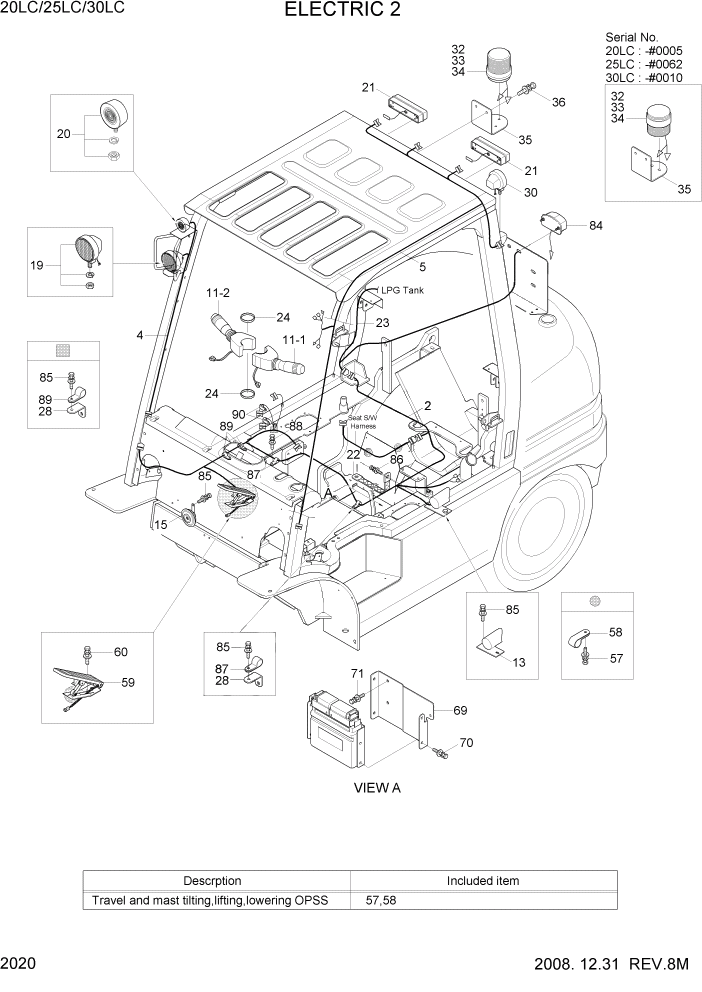

Запчасти Hyundai 20/25/30LC-7 PAGE 2020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21HF-40010

HARNESS-FRAME

20LC-7,SEE 2050 #0005

1шт.

2

21HF-40011

HARNESS-FRAME

20LC-7,SEE 2050 #0006

1шт.

2

21HF-40010

HARNESS-FRAME

25LC-7,SEE 2050 #0062

1шт.

2

21HF-40011

HARNESS-FRAME

25LC-7,SEE 2050 #0063

1шт.

2

21HF-40010

HARNESS-FRAME

30LC-7,SEE 2050 #0010

1шт.

2

21HF-40011

HARNESS-FRAME

30LC-7,SEE 2050 #0011

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

20LC-7,SEE 6040 #0001

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

25LC-7,SEE 6040 #0001

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

30LC-7,SEE 6040 #0003

1шт.

5

21HA-10041

HARNESS-HEADGUARD

20LC-7,SEE 6040 #0001

1шт.

5

21HA-10041

HARNESS-HEADGUARD

25LC-7,SEE 6040 #0001

1шт.

5

21HA-10041

HARNESS-HEADGUARD

30LC-7,SEE 6040 #0003

1шт.

11

21HA-10330

STEERING COLUMN SW

1шт.

11-1

21HA-10350

SELECTOR-GEAR

1шт.

11-2

21HA-10360

SWITCH-COMBINATION

1шт.

13

21HA-10610

BACKUP ALARM

20LC-7 #0014

1шт.

13

21HA-10611

BUZZER-BACK

20LC-7 #0015

1шт.

13

21HA-10610

BACKUP ALARM

25LC-7 #0251

1шт.

13

21HA-10611

BUZZER-BACK

25LC-7 #0252

1шт.

13

21HA-10610

BACKUP ALARM

30LC-7 #0025

1шт.

13

21HA-10611

BUZZER-BACK

30LC-7 #0026

1шт.

15

21M8-00070

HORN-HIGH

1шт.

19

F12840010

LAMP SUB ASSY-WORK

20LC-7,SEE 6040 #0001

2шт.

19

F12840010

LAMP SUB ASSY-WORK

25LC-7,SEE 6040 #0001

2шт.

19

F12840010

LAMP SUB ASSY-WORK

30LC-7,SEE 6040 #0003

2шт.

20

F12840020

LAMP-FLASHER

20LC-7,SEE 6040 #0001

2шт.

20

F12840020

LAMP-FLASHER

25LC-7,SEE 6040 #0001

2шт.

20

F12840020

LAMP-FLASHER

30LC-7,SEE 6040 #0003

2шт.

21

21FH-77020

LAMP-COMBINATION

20LC-7,SEE 6040 #0001

2шт.

21

21FH-77020

LAMP-COMBINATION

25LC-7,SEE 6040 #0001

2шт.

21

21FH-77020

LAMP-COMBINATION

30LC-7,SEE 6040 #0003

2шт.

22

21L8-30720

STRAP-EARTH

1шт.

23

21FW-10080

HARNESS-FUEL

1шт.

24

F12140020

GROMMET

2шт.

28

21HG-10131

PLATE

2шт.

30

F12840010

LAMP SUB ASSY-WORK

OPT

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,20LC,STD #0005

1шт.

32

21HA-20310

LAMP-BEACON, AMBER

AMBER,20LC,STD #0006

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,25LC,STD #0062

1шт.

32

21HA-20310

LAMP-BEACON, AMBER

AMBER,25LC,STD #0063

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,30LC,STD #0010

1шт.

32

21HA-20310

LAMP-BEACON, AMBER

AMBER,30LC,STD #0011

1шт.

32-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,20LC #0006

1шт.

32-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,25LC #0063

1шт.

32-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,30LC #0011

1шт.

32-2

21HA-21140

XENON LAMP

NOT SHOWN,20LC #0006

1шт.

32-2

21HA-21140

XENON LAMP

NOT SHOWN,25LC #0063

1шт.

32-2

21HA-21140

XENON LAMP

NOT SHOWN,30LC #0011

1шт.

33

F23842010

STROBE LAMP-RED

RED,20LC-7 #0005

1шт.

33

21HA-20320

LAMP-BEACON, RED

RED,20LC-7 #0006

1шт.

33

F23842010

STROBE LAMP-RED

RED,25LC-7 #0062

1шт.

33

21HA-20320

LAMP-BEACON, RED

RED,25LC-7 #0063

1шт.

33

F23842010

STROBE LAMP-RED

RED,30LC-7 #0010

1шт.

33

21HA-20320

LAMP-BEACON, RED

RED,30LC-7 #0011

1шт.

33-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,20LC #0006

1шт.

33-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,25LC #0063

1шт.

33-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,30LC #0011

1шт.

33-2

21HA-21140

XENON LAMP

NOT SHOWN,20LC #0006

1шт.

33-2

21HA-21140

XENON LAMP

NOT SHOWN,25LC #0063

1шт.

33-2

21HA-21140

XENON LAMP

NOT SHOWN,30LC #0011

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,20LC-7 #0005

1шт.

34

21HA-20330

LAMP-BEACON, BLUE

BLUE,20LC-7 #0006

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,25LC-7 #0062

1шт.

34

21HA-20330

LAMP-BEACON, BLUE

BLUE,25LC-7 #0063

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,30LC-7 #0010

1шт.

34

21HA-20330

LAMP-BEACON, BLUE

BLUE,30LC-7 #0011

1шт.

34-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,20LC #0006

1шт.

34-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,25LC #0063

1шт.

34-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,30LC #0011

1шт.

34-2

21HA-21140

XENON LAMP

NOT SHOWN,20LC #0006

1шт.

34-2

21HA-21140

XENON LAMP

NOT SHOWN,25LC #0063

1шт.

34-2

21HA-21140

XENON LAMP

NOT SHOWN,30LC #0011

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,20LC-7 #0005

1шт.

35

21HA-20210

PLATE

B/LAMP,20LC-7 #0006

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,25LC-7 #0062

1шт.

35

21HA-20210

PLATE

B/LAMP,25LC-7 #0063

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,30LC-7 #0010

1шт.

35

21HA-20210

PLATE

B/LAMP,30LC-7 #0011

1шт.

36

S037-102026

BOLT-W/WASHER

OPT

2шт.

57

S035-061526

BOLT-W/WASHER

SEE ILLUST

2шт.

58

S541-080002

CLAMP-TUBE

SEE ILLUST

2шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER3,20LC #0016

1шт.

59

21FK-10501

PEDAL-ACCELERATOR

20LC #0017

1шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER3,25LC #0265

1шт.

59

21FK-10501

PEDAL-ACCELERATOR

25LC #0266

1шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER3,30LC #0037

1шт.

59

21FK-10501

PEDAL-ACCELERATOR

30LC #0038

1шт.

60

S035-082026

BOLT-W/WASHER

TIER 3

2шт.

69

21HF-40110

ECU HOLDER

NON EMISSION

1шт.

70

S035-061526

BOLT-W/WASHER

NON EMISSION

5шт.

71

S035-081526

BOLT-W/WASHER

NON EMISSION

2шт.

84

21FG-10040

LAMP-LICENSE(12V)

OPT

1шт.

84-1

S860-000300

BULB

NOT SHOWN

2шт.

85

S035-081526

BOLT-W/WASHER

6шт.

86

S037-102026

BOLT-W/WASHER

1шт.

87

31L6-02460

CLAMP-TUBE

2шт.

88

S035-061526

BOLT-W/WASHER

2шт.

89

S543-200002

CLAMP-TUBE

4шт.

90

S543-100002

CLAMP-TUBE

3шт.
