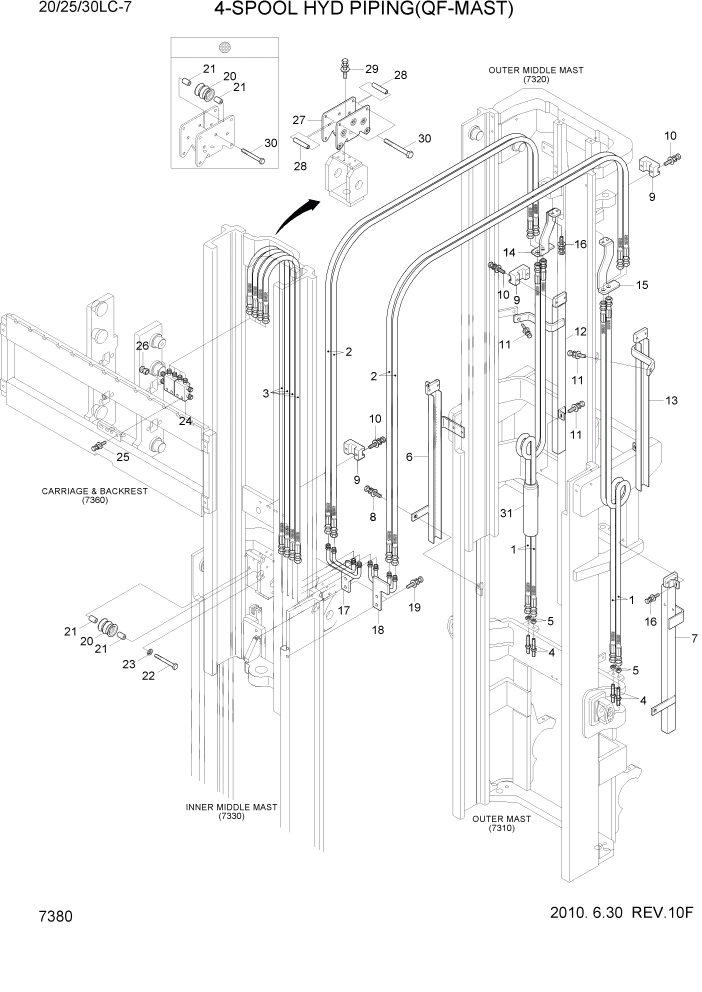

Запчасти Hyundai 20/25/30LC-7 PAGE 7380 4-SPOOL HYD PIPING(QF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064051

HOSE ASSY-ORFS 0X0

QF610

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

QF660

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

QF700

4шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

QF745

4шт.

1

P910-064063

HOSE ASSY-ORFS 0X0

QF790

4шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

20LC,QF610

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

25LC,QF610 #0315

4шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

25LC,QF610 #0316

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

30LC,QF610 #0049

4шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

30LC,QF610 #0050

4шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

20LC,QF660

4шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

25LC,QF660 #0315

4шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

25LC,QF660 #0316

4шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

30LC,QF660 #0049

4шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

30LC,QF660 #0050

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

20LC,QF700

4шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

25LC,QF700 #0315

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

25LC,QF700 #0316

4шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

30LC,QF700 #0049

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

30LC,QF700 #0050

4шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

QF745

4шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

QF790

4шт.

3

P910-064047

HOSE ASSY-ORFS 0X0

20LC,QF610

4шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

25LC,QF610 #0315

4шт.

3

P910-064047

HOSE ASSY-ORFS 0X0

25LC,QF610 #0316

4шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

30LC,QF610 #0049

4шт.

3

P910-064047

HOSE ASSY-ORFS 0X0

30LC,QF610 #0050

4шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

20LC,QF610

4шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

25LC,QF610 #0315

4шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

25LC,QF610 #0316

4шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

30LC,QF610 #0049

4шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

30LC,QF610 #0050

4шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

20LC,QF610

4шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

25LC,QF610 #0315

4шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

25LC,QF610 #0316

4шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

30LC,QF610 #0049

4шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

30LC,QF610 #0050

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

20LC,QF610

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

25LC,QF610 #0315

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

25LC,QF610 #0316

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

30LC,QF610 #0049

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

30LC,QF610 #0050

4шт.

4

31FG-80210

CONNECTOR

8шт.

5

31FG-80430

NUT-HEX

8шт.

6

3DHN-90301

GUARD WA-OUTER

QF610

1шт.

6

3DHN-90311

GUARD WA-OUTER

QF660

1шт.

6

3DHN-90321

GUARD WA-OUTER

QF700

1шт.

6

3DHN-90331

GUARD WA-OUTER

QF745

1шт.

6

3DHN-90341

GUARD WA-OUTER

QF790

1шт.

7

3DHN-91401

GUARD WA-OUTER

QF610

1шт.

7

3DHN-91411

GUARD WA-OUTER

QF660

1шт.

7

3DHN-91421

GUARD WA-OUTER

QF700

1шт.

7

3DHN-91431

GUARD WA-OUTER

QF745

1шт.

7

3DHN-91441

GUARD WA-OUTER

QF790

1шт.

8

S035-081626

BOLT-W/WASHER

2шт.

9

34FG-90260

CLAMP-HOSE

10шт.

10

S035-063526

BOLT-W/WASHER

20шт.

11

S035-082026

BOLT-W/WASHER

4шт.

12

3DHN-90200

GUARD WA-OUTER MIDDLE

QF610

1шт.

12

3DHN-90210

GUARD WA-OUTER MIDDLE

QF660

1шт.

12

3DHN-90220

GUARD WA-OUTER MIDDLE

QF700

1шт.

12

3DHN-90230

GUARD WA-OUTER MIDDLE

QF745

1шт.

12

3DHN-90240

GUARD WA-OUTER MIDDLE

QF790

1шт.

13

3DHN-91300

GUARD WA-OUTER MIDDLE

QF610

1шт.

13

3DHN-91310

GUARD WA-OUTER MIDDLE

QF660

1шт.

13

3DHN-91320

GUARD WA-OUTER MIDDLE

QF700

1шт.

13

3DHN-91330

GUARD WA-OUTER MIDDLE

QF745

1шт.

13

3DHN-91340

GUARD WA-OUTER MIDDLE

QF790

1шт.

14

3DHN-90400

BRACKET WA

1шт.

15

3DHN-90440

BRACKET WA

1шт.

16

S035-082526

BOLT-W/WASHER

6шт.

17

3DHN-90501

PIPE WA

1шт.

18

3DHN-90531

PIPE WA

1шт.

19

S037-102526

BOLT-W/WASHER

4шт.

20

34FY-90110

ROLLER-HOSE

20шт.

21

S731-007010

BUSHING-DU

40шт.

22

S109-060806

BOLT-SOCKET

10шт.

23

S411-060006

WASHER-SPRING

10шт.

24

34FK-90401

BLOCK WA

2шт.

25

S037-104026

BOLT-W/WASHER

4шт.

26

X710-100103

CAP-HYD,ORFS

4шт.

27

3DHN-90600

PLATE

2шт.

28

34FY-90130

SPACER

4шт.

29

S035-081526

BOLT-W/WASHER

4шт.

30

S035-066526

BOLT-W/WASHER

14шт.

31

P753-120004

PROTECTOR COVER-HOSE

20LC #0001

4шт.

31

P753-120004

PROTECTOR COVER-HOSE

25LC #0316

4шт.

31

P753-120004

PROTECTOR COVER-HOSE

30LC #0050

4шт.
