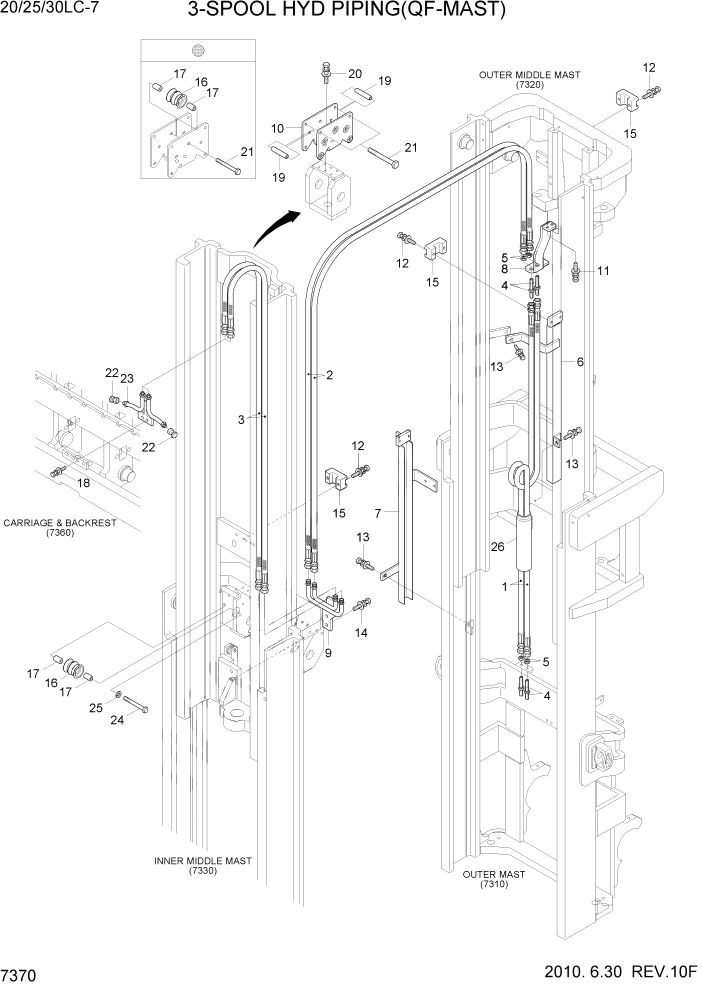

Запчасти Hyundai 20/25/30LC-7 PAGE 7370 3-SPOOL HYD PIPING(QF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064051

HOSE ASSY-ORFS 0X0

QF610

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

QF660

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

QF700

2шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

QF745

2шт.

1

P910-064063

HOSE ASSY-ORFS 0X0

QF790

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

20LC,QF610

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

25LC,QF610 #0315

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

25LC,QF610 #0316

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

30LC,QF610 #0049

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

30LC,QF610 #0050

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

20LC,QF660

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

25LC,QF660 #0315

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

25LC,QF660 #0316

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

30LC,QF660 #0049

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

30LC,QF660 #0050

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

20LC,QF700

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

25LC,QF700 #0315

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

25LC,QF700 #0316

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

30LC,QF700 #0049

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

30LC,QF700 #0050

2шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

20/25/30,QF745

2шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

20/25/30,QF790

2шт.

3

P910-064044

HOSE ASSY-ORFS 0X0

20/25/30,QF610

2шт.

3

P910-064047

HOSE ASSY-ORFS 0X0

20LC,QF660

2шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

25LC,QF660 #0315

2шт.

3

P910-064047

HOSE ASSY-ORFS 0X0

25LC,QF660 #0316

2шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

30LC,QF660 #0049

2шт.

3

P910-064047

HOSE ASSY-ORFS 0X0

30LC,QF660 #0050

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

20LC,QF700

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

25LC,QF700 #0315

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

25LC,QF700 #0316

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

30LC,QF700 #0049

2шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

30LC.QF700 #0050

2шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

20LC,QF745

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

25LC,QF745 #0315

2шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

25LC,QF745 #0316

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

30LC,QF745 #0049

2шт.

3

P910-064055

HOSE ASSY-ORFS 0X0

30LC,QF745 #0050

2шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

20LC,QF790

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

25LC,QF790 #0315

2шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

25LC,QF790 #0316

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

30LC,QF790 #0049

2шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

30LC,QF790 #0050

2шт.

4

31FG-80210

CONNECTOR

4шт.

5

31FG-80430

NUT-HEX

4шт.

6

3DHN-90200

GUARD WA-OUTER MIDDLE

QF610

1шт.

6

3DHN-90210

GUARD WA-OUTER MIDDLE

QF660

1шт.

6

3DHN-90220

GUARD WA-OUTER MIDDLE

QF700

1шт.

6

3DHN-90230

GUARD WA-OUTER MIDDLE

QF745

1шт.

6

3DHN-90240

GUARD WA-OUTER MIDDLE

QF790

1шт.

7

3DHN-90301

GUARD WA-OUTER

QF610

1шт.

7

3DHN-90311

GUARD WA-OUTER

QF660

1шт.

7

3DHN-90321

GUARD WA-OUTER

QF700

1шт.

7

3DHN-90331

GUARD WA-OUTER

QF745

1шт.

7

3DHN-90341

GUARD WA-OUTER

QF790

1шт.

8

3DHN-90400

BRACKET WA

1шт.

9

3DHN-90501

PIPE WA

1шт.

10

3DHN-90600

PLATE

1шт.

11

S035-082526

BOLT-W/WASHER

3шт.

12

S035-063526

BOLT-W/WASHER

10шт.

13

S035-082026

BOLT-W/WASHER

3шт.

14

S037-102526

BOLT-W/WASHER

2шт.

15

34FG-90260

CLAMP-HOSE

5шт.

16

34FY-90110

ROLLER-HOSE

10шт.

17

S731-007010

BUSHING-DU

20шт.

18

S037-104026

BOLT-W/WASHER

2шт.

19

34FY-90130

SPACER

2шт.

20

S035-081526

BOLT-W/WASHER

2шт.

21

S035-066526

BOLT-W/WASHER

7шт.

22

X710-100103

CAP-HYD,ORFS

2шт.

23

33HA-90401

PIPE WA

1шт.

24

S109-060806

BOLT-SOCKET

5шт.

25

S411-060006

WASHER-SPRING

5шт.

26

P753-120004

PROTECTOR COVER-HOSE

20LC #0001

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

25LC #0316

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

30LC #0050

1шт.
