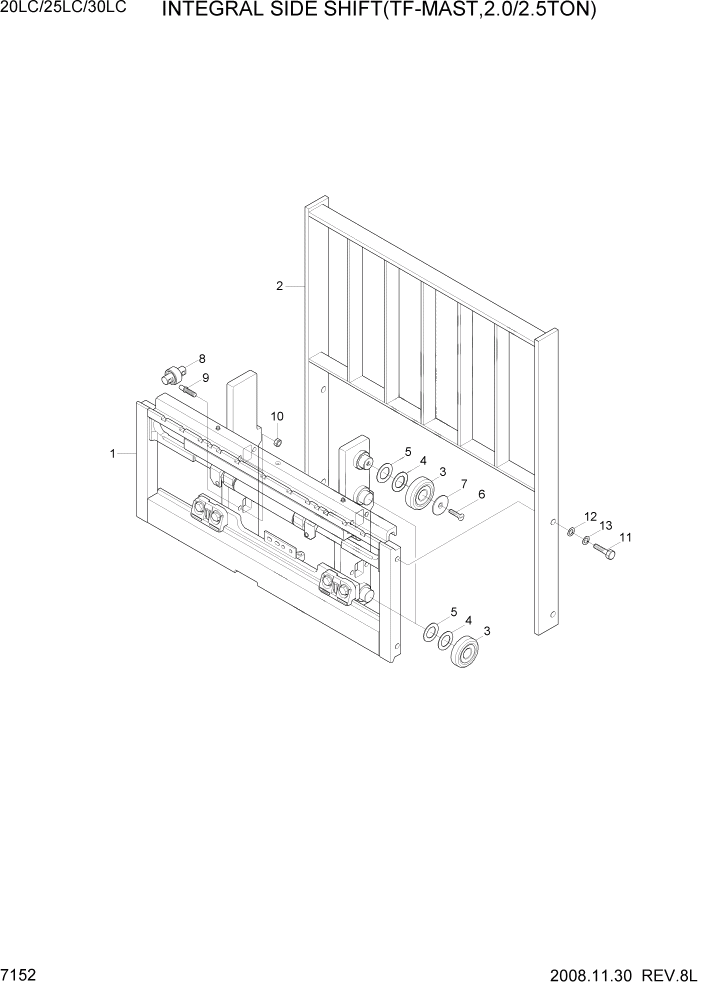

Запчасти Hyundai 20/25/30LC-7 PAGE 7152 INTEGRAL SIDE SHIFT(TF-MAST,2.0/2.5TON) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

69HC-00110

INTEGRAL SIDE SHIFT ASSY

SEE 7154

1шт.

2

61FK-23430

BACKREST WA

1шт.

3

6600181100-01

BEARING-ROLLER

6шт.

3

6600181100-01

BEARING-ROLLER

20LC #0014

6шт.

3

63HK-18100

LOAD R/BRG ASSY

20LC,STD #0015

6шт.

3

63HK-18110

LOAD R/BRG ASSY(117.2)

20LC,UNDERSIZE #0015

6шт.

3

63HK-18120

LOAD R/BRG ASSY(117.8)

20LC,OVERSIZE #0015

6шт.

3

63HK-18130

LOAD R/BRG ASSY(116.9)

20LC,SMALLSIZE #0015

6шт.

4

6600187900

SHIM(0.5T)

6шт.

3

6600181100-01

BEARING-ROLLER

25LC #0234

6шт.

3

63HK-18100

LOAD R/BRG ASSY

25LC,STD #0235

6шт.

3

63HK-18110

LOAD R/BRG ASSY(117.2)

25LC,UNDERSIZE #0235

6шт.

3

63HK-18120

LOAD R/BRG ASSY(117.8)

25LC,OVERSIZE #0235

6шт.

3

63HK-18130

LOAD R/BRG ASSY(116.9)

25LC,SMALLSIZE #0235

6шт.

4

6600187900

SHIM(0.5T)

6шт.

5

6600188000

SHIM(1.0T)

6шт.

6

61F7-28010

BOLT-FLAT HD

2шт.

7

61F7-28020

WASHER-RETAINING

2шт.

8

61F7-28100

SIDE ROLLER ASSY

4шт.

9

61F4-28040

ADJUSTABLE SCREW

8шт.

10

S205-161006

NUT-HEX

8шт.

11

S017-16035D

BOLT-HEX

4шт.

12

S403-161006

WASHER-PLAIN

4шт.

13

S411-160006

WASHER-SPRING

4шт.
