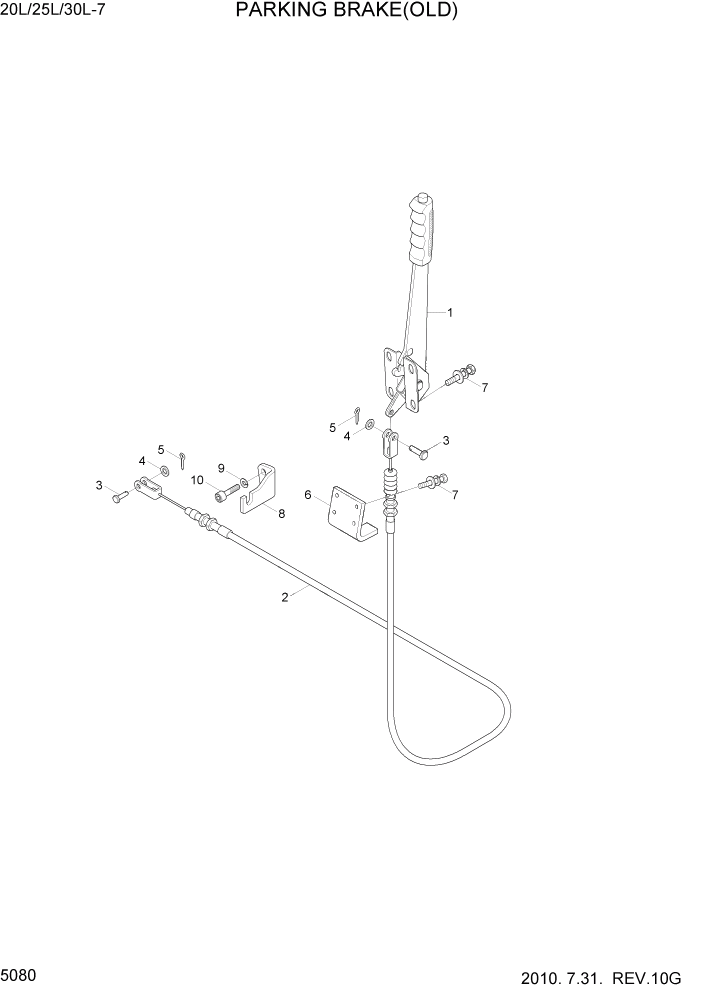

Запчасти Hyundai 20/25/30L-7 PAGE 5080 PARKING BRAKE(OLD) СИСТЕМА УПРАВЛЕНИЯ

*

@

PARKING BRAKE GROUP

NOT #0072

1шт.

*

@

PARKING BRAKE GROUP

NOT #1243

1шт.

*

@

PARKING BRAKE GROUP

NOT #0739

1шт.

1

81FH-40050

PARKING LEVER ASSY

1шт.

2

81HF-70012

CABLE-PARKING

1шт.

3

S491-080202

PIN-CLEVIS

2шт.

4

S403-082002

WASHER-PLAIN

2шт.

5

S461-200202

PIN-SPLIT

2шт.

6

81HA-70021

BRACKET

1шт.

7

S035-082026

BOLT-W/WASHER

8шт.

8

81HH-70022

BRACKET

20L,SEE 4010 #0017

1шт.

8

81HH-70022

BRACKET

25L,SEE 4010 #0579

1шт.

8

81HH-70022

BRACKET

30L,SEE 4010 #0403

1шт.

9

S441-100006

WASHER-HARDENED

20L,SEE 4010 #0001 - #0017

2шт.

9

S441-100006

WASHER-HARDENED

25L,SEE 4010 #0005 - #0579

2шт.

9

S441-100006

WASHER-HARDENED

30L,SEE 4010 #0012 - #0403

2шт.

10

S109-100256

BOLT-SOCKET

20L,SEE 4010 #0001 - #0017

2шт.

10

S037-102056

BOLT-W/WASHER

25L,SEE 4010 #0004

2шт.

10

S109-100256

BOLT-SOCKET

25L,SEE 4010 #0005 - #0579

2шт.

10

S037-102056

BOLT-W/WASHER

30L,SEE 4010 #0011

2шт.

10

S109-100256

BOLT-SOCKET

30L,SEE 4010 #0012 - #0403

2шт.
