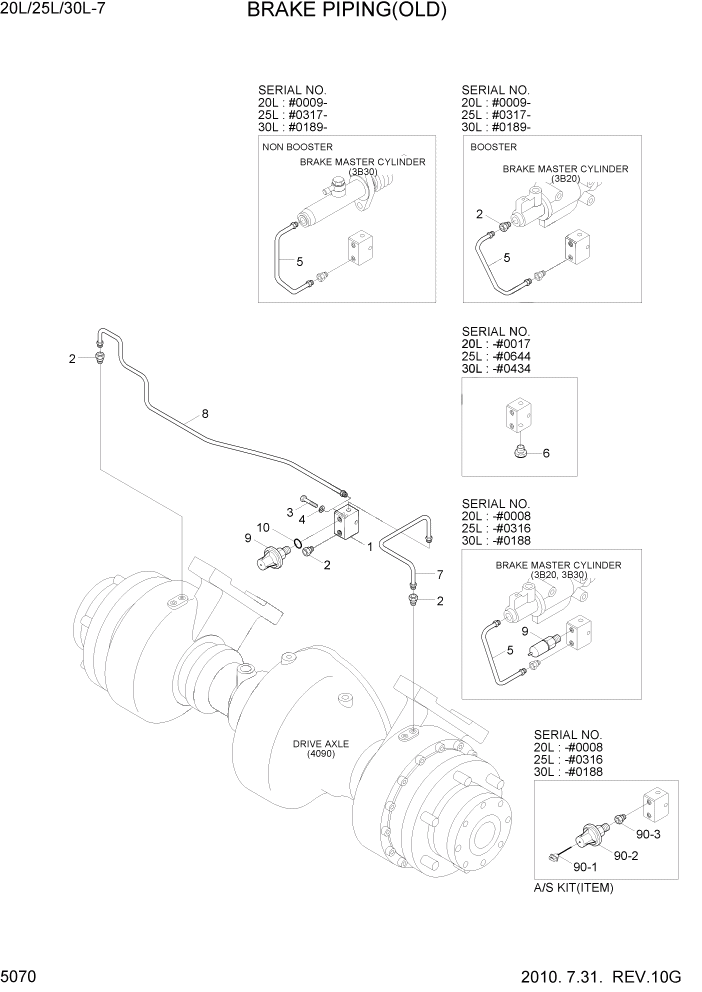

Запчасти Hyundai 20/25/30L-7 PAGE 5070 BRAKE PIPING(OLD) СИСТЕМА УПРАВЛЕНИЯ

*

@

BRAKE PIPING

NOT #0072

1шт.

*

@

BRAKE PIPING

NOT #1243

1шт.

*

@

BRAKE PIPING

NOT #0739

1шт.

1

81HA-60060

BLOCK-4WAY

20L #0008

1шт.

1

81HA-60070

BLOCK-4WAY

20L #0009 - #0017

1шт.

1

81HA-60071

BLOCK-3WAY

20L #0018 - #0022

1шт.

1

81HA-60072

BLOCK-3WAY

20L #0023

1шт.

1

81HA-60060

BLOCK-4WAY

25L #0316

1шт.

1

81HA-60070

BLOCK-4WAY

25L #0317 - #0644

1шт.

1

81HA-60071

BLOCK-3WAY

25L #0645 - #0983

1шт.

1

81HA-60072

BLOCK-3WAY

25L #0984

1шт.

1

81HA-60060

BLOCK-4WAY

30L #0188

1шт.

1

81HA-60070

BLOCK-4WAY

30L #0189 - #0434

1шт.

1

81HA-60071

BLOCK-3WAY

30L #0435 - #0639

1шт.

1

81HA-60072

BLOCK-3WAY

30L #0640

1шт.

2

81HF-60010

FITTING

BOOSTER

3шт.

2

81HF-60010

FITTING

NON BOOSTER

2шт.

3

S015-080452

BOLT-HEX

1шт.

4

S411-080002

WASHER-SPRING

1шт.

5

81HA-60042

PIPE ASSY

BOOSTER,20L #0008

1шт.

5

81HA-60043

PIPE ASSY

BOOSTER,20L #0009

1шт.

5

81HA-60042

PIPE ASSY

BOOSTER,25L #0316

1шт.

5

81HA-60043

PIPE ASSY

BOOSTER,25L #0317

1шт.

5

81HA-60042

PIPE ASSY

BOOSTER,30L #0188

1шт.

5

81HA-60043

PIPE ASSY

BOOSTER,30L #0189

1шт.

5

81HF-60022

PIPE ASSY

NON BOOSTER,20L #0008

1шт.

5

81HF-60023

PIPE ASSY

NON BOOSTER,20L #0009 - #0021

1шт.

5

81HF-60710

PIPE ASSY

NON BOOSTER,20L #0022

1шт.

5

81HF-60022

PIPE ASSY

NON BOOSTER,25L #0316

1шт.

5

81HF-60023

PIPE ASSY

NON BOOSTER,25L #0317 - #0905

1шт.

5

81HF-60710

PIPE ASSY

NON BOOSTER,25L #0906

1шт.

5

81HF-60022

PIPE ASSY

NON BOOSTER,30L #0188

1шт.

5

81HF-60023

PIPE ASSY

NON BOOSTER,30L #0189 - #0607

1шт.

5

81HF-60710

PIPE ASSY

NON BOOSTER,30L #0608

1шт.

6

81FA-60301

PLUG

20L #0017

1шт.

6

81FA-60301

PLUG

25L #0644

1шт.

6

81FA-60301

PLUG

30L #0434

1шт.

7

81HF-60032

PIPE ASSY-LH

1шт.

8

81HA-60052

PIPE ASSY-RH

1шт.

9

31L7-41030

SWITCH-PRESSURE

20L #0008

1шт.

9

81FH-47120

SWITCH-PRESSURE

20L #0009 - #0022

1шт.

9

81FQ-47120

SWITCH-PRESSURE

20L #0023

1шт.

9

31L7-41030

SWITCH-PRESSURE

25L #0316

1шт.

9

81FH-47120

SWITCH-PRESSURE

25L #0317 - #0983

1шт.

9

81FQ-47120

SWITCH-PRESSURE

25L #0984

1шт.

9

31L7-41030

SWITCH-PRESSURE

30L #0188

1шт.

9

81FH-47120

SWITCH-PRESSURE

30L #0189 - #0639

1шт.

9

81FQ-47120

SWITCH-PRESSURE

30L #0640

1шт.

10

S611-011001

O-RING

20L #0023

1шт.

10

S611-011001

O-RING

25L #0984

1шт.

10

S611-011001

O-RING

30L #0640

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

20L,FOR A/S #0008

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

25L,FOR A/S #0316

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

30L,FOR A/S #0188

1шт.

90-1

27FQ-19010

HARNESS-EXTENSION

1шт.

90-2

81FH-47120

SWITCH-PRESSURE

1шт.

90-3

81HA-60080

FITTING

1шт.
