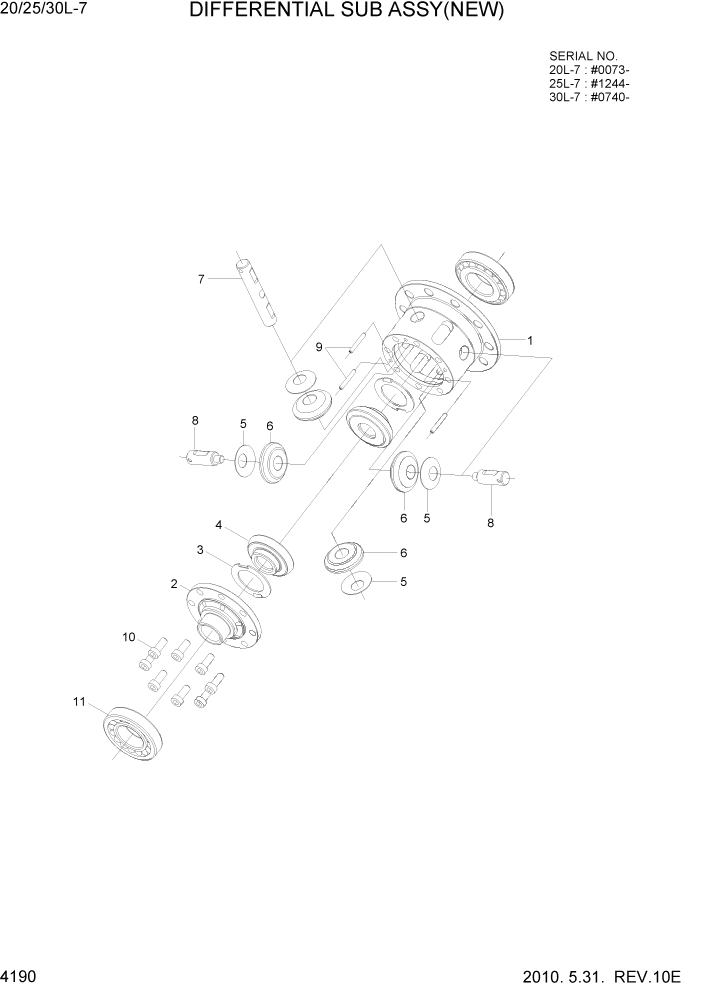

Запчасти Hyundai 20/25/30L-7 PAGE 4190 DIFFERENTIAL ASSY(NEW) СИЛОВАЯ СИСТЕМА

*

@

DRIVE AXLE ASSY

NOT

1шт.

*-1

XKCF-00606

DIFFERENTIAL SUB ASSY

1шт.

1

XKCF-00544

CASE-DIFF, RH

1шт.

2

XKCF-00545

CASE-DIFF, LH

1шт.

3

XKCF-00609

THRUST WASHER

2шт.

4

XKCF-00547

GEAR-DIFFERENTIAL, SIDE

4шт.

5

XKCF-00548

WASHER-THRUST

4шт.

6

XKCF-00549

GEAR-DIFFERENTIAL, PINION

2шт.

7

XKCF-00610

SPIDER-DIFFERENTIAL

1шт.

8

XKCF-00611

SPIDER-DIFFERENTIAL, HALF

2шт.

9

S471-600324

PIN-SPRING

3шт.

10

S109-080206

BOLT-SOCKET

8шт.

11

XKCF-00072

BEARING-TAPER ROLLER

2шт.
