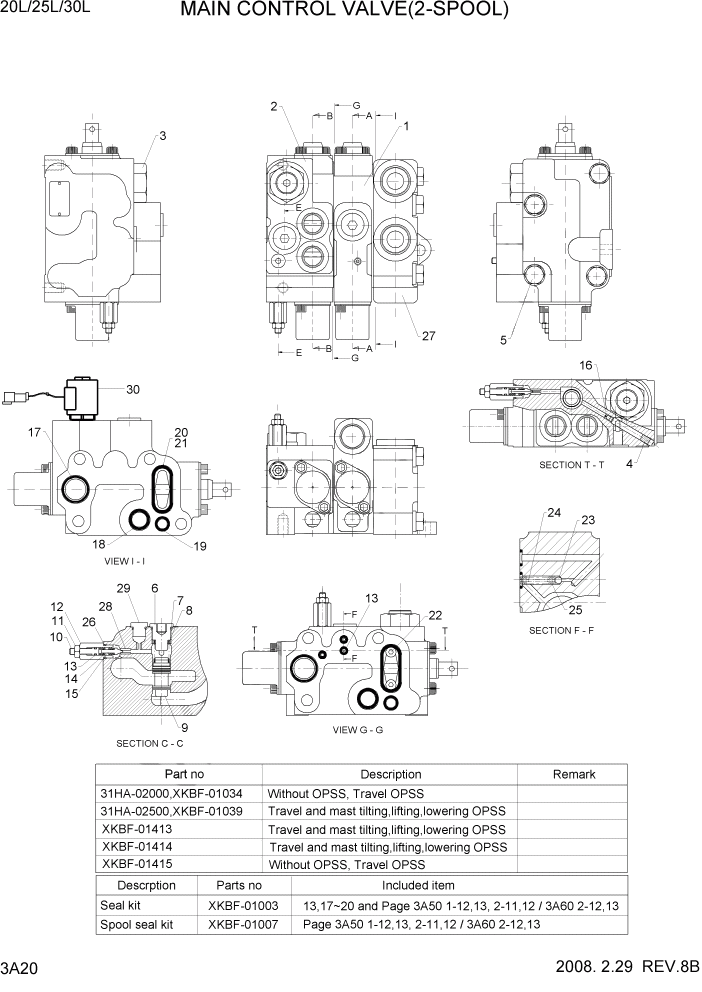

Запчасти Hyundai 20/25/30L-7 PAGE 3A20 MAIN CONTROL VALVE(2-SPOOL) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31HA-02000

MCV-2SP(NO/TR OPSS)

SEE ILLUST

1шт.

*

31HA-02500

MCV-2SP(TR-MA OPSS)

SEE ILLUST

1шт.

1

XKBF-01034

LIFT BLOCK ASSY

SEE ILLUST

1шт.

1

XKBF-01039

LIFT BLOCK ASSY

SEE ILLUST

1шт.

2

XKBF-00977

TILT BLOCK ASSY

SEE 3A60

1шт.

3

XKBF-00978

GAUGE PLUG ASSY

1шт.

4

XKBF-00931

PLUG

1шт.

K5

XKBF-00979

BOLT-LONG

4шт.

6

XKBF-00980

PLUG-HYDROSTAT

1шт.

K7

XKBF-00604

O-RING

1шт.

8

XKBF-00981

SPRING-HYDROSTAT

1шт.

9

XKBF-00982

SLEEVE-HYDROSTAT

1шт.

K10

XKBF-00983

PISTON-RELIEF

1шт.

K11

XKBF-00984

NUT

1шт.

K12

XKBF-00985

PLUG-RELIEF

1шт.

K13

XKBF-01025

O-RING

4шт.

K14

XKBF-00986

SPRING-RELIEF

1шт.

K15

XKBF-00987

POPPET-PILOT

1шт.

16

XKBF-00988

BLIND PLUG-ORIFICE

1шт.

K17

XKBF-00989

O-RING

2шт.

K18

XKBF-00990

O-RING

2шт.

K19

XKBF-00991

O-RING

2шт.

K20

XKBF-00992

O-RING

2шт.

21

XKBF-00993

RETAINER O-RING

2шт.

22

XKBF-00994

PLUG-BLIND

2шт.

23

XKBF-00995

BALL-STEEL

1шт.

24

XKBF-00996

SPRING-LOAD SEN

1шт.

25

XKBF-00997

SPRING-LOAD SEN

1шт.

26

XKBF-00998

O-RING

2шт.

27

XKBF-01414

T COVER FOR OPSS

SEE ILLUST

1шт.

XKBF-01415

T COVER FOR STD

SEE ILLUST

1шт.

28

XKBF-01000

SEAT-SYSTEM RELIEF

1шт.

29

XKBF-01033

PLUG

1шт.

30

XKBF-01037

SOL. V/V(1024000050)

SEE ILLUST,20L #0003

1шт.

30

XKBF-01413

SOLENOID V/V

SEE ILLUST

1шт.

30

XKBF-01037

SOL. V/V(1024000050)

SEE ILLUST,25L #0135

1шт.

30

XKBF-01413

SOLENOID V/V

SEE ILLUST,25L #0136

1шт.

30

XKBF-01037

SOL. V/V(1024000050)

SEE ILLUST,30L #0084

1шт.

30

XKBF-01413

SOLENOID V/V

SEE ILLUST,30L #0085

1шт.

K

XKBF-01002

TIE STUD-2 KIT

INCL 5

1шт.

K

XKBF-01003

SEAL KIT

SEE ILLUST

1шт.

K

XKBF-01006

RELIEF VALVE KIT

INCL 7,10-15

1шт.

K

XKBF-01007

SEAL SPOOL KIT

SEE ILLUST

1шт.

K

XKBF-01008

SEAL SECTION KIT

INCL 13,17-20

1шт.
