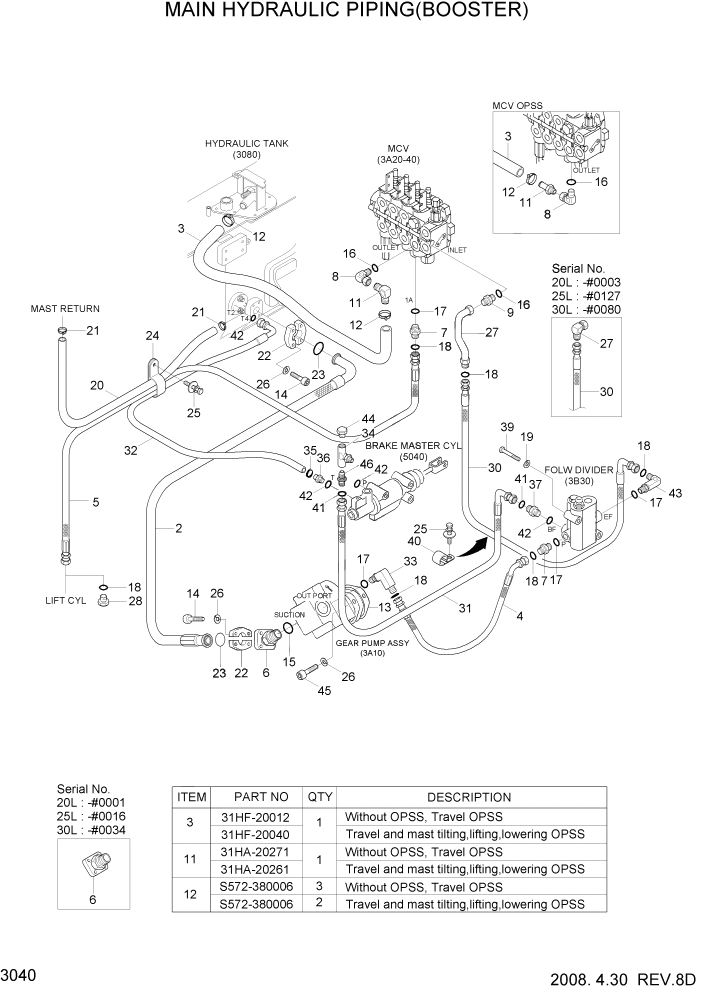

Запчасти Hyundai 20/25/30L-7 PAGE 3040 MAIN HYDRAULIC PIPING(BOOSTER) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

2

31HF-20052

HOSE ASSY 0X90

2.0/2.5TON

1шт.

3

31HF-20012

HOSE-RETURN

SEE ILLUST

1шт.

3

31HF-20040

HOSE-RETURN

SEE ILLUST

1шт.

4

31HC-20030

HOSE ASSY-ORFS 0X45D

1шт.

5

P913-104029

HOSE ASSY-ORFS 0X0

1шт.

6

31HA-20200

CONNECTOR-FLANGE

2.0TON #0001

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

2.0TON #0002

1шт.

6

31HA-20200

CONNECTOR-FLANGE

2.5TON #0016

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

2.5TON #0017

1шт.

6

31HA-20200

CONNECTOR-FLANGE

3.0TON #0034

1шт.

6

31HA-20201

ELBOW-25D,FLANGE

3.0TON #0035

1шт.

7

31HA-20061

CONNECTOR

2шт.

8

31HH-20140

ELBOW-90D,SWIVEL

1шт.

9

31FT-70131

CONNECTOR

2.0/2.5TON

1шт.

10

31HA-20091

TEE-WITH TEST PORT

1шт.

11

31HA-20271

ELBOW-90D,ORFS

SEE ILLUST

1шт.

11

31HA-20261

CONNECTOR

SEE ILLUST

1шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST

3шт.

12

S572-380006

CLAMP-HOSE WIRE TYPE

SEE ILLUST

2шт.

13

31FJ-20070

GASKET

1шт.

14

S109-100356

BOLT-SOCKET

8шт.

15

S611-030001

O-RING

1шт.

16

S611-023001

O-RING

2шт.

17

S611-019001

O-RING(INCH)

3шт.

18

S621-016001

O-RING

5шт.

19

S411-080006

WASHER-SPRING

2шт.

20

31FA-10660

HOSE

1шт.

21

S572-240006

CLAMP-HOSE,WIRE TYPE

2шт.

22

P173-160104

FLANGE-HYD,SPLIT

4шт.

23

Y171-024004

O-RING

2шт.

24

31HA-20240

CLAMP-HOSE

1шт.

25

S035-082026

BOLT-W/WASHER

2.0TON #0002

3шт.

25

S035-082036

BOLT-W/WASHER

2.0TON #0003

3шт.

25

S035-082026

BOLT-W/WASHER

2.5TON #0055

3шт.

25

S035-082036

BOLT-W/WASHER

2.5TON #0056

3шт.

25

S035-082026

BOLT-W/WASHER

3.0TON #0048

3шт.

25

S035-082036

BOLT-W/WASHER

3.0TON #0049

3шт.

26

S411-100006

WASHER-SPRING

10шт.

27

31HA-20011

ELBOW-90D,SWIVEL

2.0TON #0003

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

2.0TON #0004

1шт.

27

31HA-20011

ELBOW-90D,SWIVEL

2.5TON #0127

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

2.5TON #0128

1шт.

27

31HA-20011

ELBOW-90D,SWIVEL

3.0TON #0080

1шт.

27

31HA-20290

TUBE ASSY,(O15.88)

3.0TON #0081

1шт.

28

31HF-20030

PLUG-ORFS

1шт.

30

P933-104026

HOSE ASSY-ORFS 0X90

2.0TON #0003

1шт.

30

P933-104023

HOSE ASSY-ORFS 0X90

2.0TON #0004

1шт.

30

P933-104026

HOSE ASSY-ORFS 0X90

2.5TON #0127

1шт.

30

P933-104023

HOSE ASSY-ORFS 0X90

2.5TON #0128

1шт.

30

P933-104026

HOSE ASSY-ORFS 0X90

3.0TON #0080

1шт.

30

P933-104023

HOSE ASSY-ORFS 0X90

3.0TON #0081

1шт.

31

P930-064018

HOSE ASSY-ORFS 0X90

1шт.

32

P760-013115

HOSE-RUBBER

1шт.

33

31HA-20041

ELBOW-90

1шт.

34

31HA-20110

TEE,WITH TEST PORT

1шт.

34

31HA-20112

TEE,WITH TEST PORT

1шт.

34

31HA-20111

TEE,WITH TEST PORT

#0133

1шт.

34

31HA-20112

TEE,WITH TEST PORT

#0134

1шт.

34

31HA-20111

TEE,WITH TEST PORT

#0083

1шт.

34

31HA-20112

TEE,WITH TEST PORT

#0084

1шт.

35

S520-170000

CLAMP-HOSE

3шт.

36

31HA-10170

CONNECTOR-BULK HOSE

1шт.

37

X500-310002

CONNECTOR-ORFS

1шт.

38

31HF-20090

COUPLING-SCREW

1шт.

39

S015-080606

BOLT-HEX

2.0TON #0002

2шт.

39

S017-100606

BOLT-HEX

2.0TON #0003

2шт.

39

S015-080606

BOLT-HEX

2.5TON #0055

2шт.

39

S017-100606

BOLT-HEX

2.5TON #0056

2шт.

39

S015-080606

BOLT-HEX

3.0TON #0048

2шт.

39

S017-100606

BOLT-HEX

3.0TON #0049

2шт.

40

31HA-20281

CLAMP-HOSE

2.0TON #0008

1шт.

40

31HA-20281

CLAMP-HOSE

2.0TON #0009

2шт.

40

31HA-20281

CLAMP-HOSE

2.5TON #0316

1шт.

40

31HA-20281

CLAMP-HOSE

2.5TON #0317

2шт.

40

31HA-20281

CLAMP-HOSE

3.0TON #0188

1шт.

40

31HA-20281

CLAMP-HOSE

3.0TON #0189

2шт.

41

S621-012001

O-RING(SEAL LOCK TYPE)

3шт.

42

S611-012001

O-RING

5шт.

43

31HA-20150

ELBOW-90D,ORFS

1шт.

44

P220-310102

PLUG

1шт.

45

S109-100306

BOLT-SOCKET

2шт.

46

31HA-05000

CHECK VALVE ASSY-ORFS

1шт.
