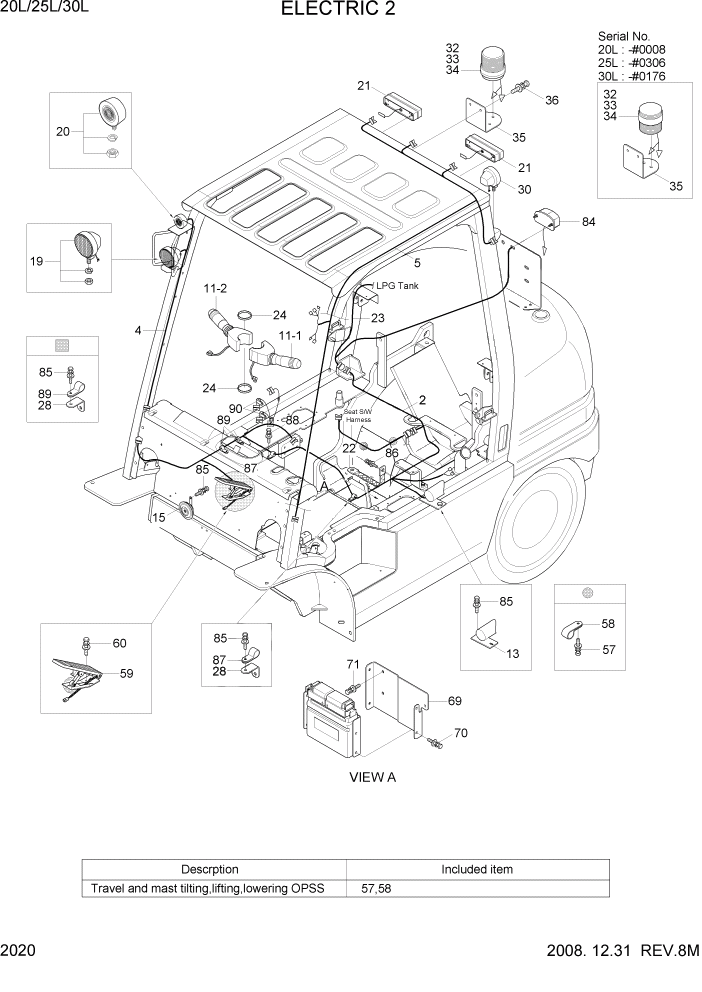

Запчасти Hyundai 20/25/30L-7 PAGE 2020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21HF-40010

HARNESS-FRAME

20L,SEE 2050 #0008

1шт.

2

21HF-40011

HARNESS-FRAME

20L,SEE 2050 #0009

1шт.

2

21HF-40010

HARNESS-FRAME

25L,SEE 2050 #0306

1шт.

2

21HF-40011

HARNESS-FRAME

25L,SEE 2050 #0307

1шт.

2

21HF-40010

HARNESS-FRAME

30L,SEE 2050 #0176

1шт.

2

21HF-40011

HARNESS-FRAME

30L,SEE 2050 #0177

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

20L,SEE 6041 #0002

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

25L,SEE 6041 #0036

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

30L,SEE 6041 #0033

1шт.

5

21HA-10041

HARNESS-HEADGUARD

20L,SEE 6041 #0002

1шт.

5

21HA-10041

HARNESS-HEADGUARD

25L,SEE 6041 #0036

1шт.

5

21HA-10041

HARNESS-HEADGUARD

30L,SEE 6041 #0033

1шт.

11

21HA-10330

STEERING COLUMN SW

1шт.

11-1

21HA-10350

SELECTOR-GEAR

1шт.

11-2

21HA-10360

SWITCH-COMBINATION

1шт.

13

21HA-10610

BACKUP ALARM

20L #0017

1шт.

13

21HA-10611

BUZZER-BACK

20L #0018

1шт.

13

21HA-10610

BACKUP ALARM

25L #0802

1шт.

13

21HA-10611

BUZZER-BACK

25L #0803

1шт.

13

21HA-10610

BACKUP ALARM

30L #0520

1шт.

13

21HA-10611

BUZZER-BACK

30L #0521

1шт.

15

21M8-00070

HORN-HIGH

1шт.

19

F12840010

LAMP SUB ASSY-WORK

20L,SEE 6041 #0002

2шт.

19

F12840010

LAMP SUB ASSY-WORK

25L,SEE 6041 #0036

2шт.

19

F12840010

LAMP SUB ASSY-WORK

30L,SEE 6041 #0033

2шт.

20

F12840020

LAMP-FLASHER

20L,SEE 6041 #0002

2шт.

20

F12840020

LAMP-FLASHER

25L,SEE 6041 #0036

2шт.

20

F12840020

LAMP-FLASHER

30L,SEE 6041 #0033

2шт.

21

21FH-77020

LAMP-COMBINATION

20L,SEE 6041 #0002

2шт.

21

21FH-77020

LAMP-COMBINATION

25L,SEE 6041 #0036

2шт.

21

21FH-77020

LAMP-COMBINATION

30L,SEE 6041 #0033

2шт.

22

21L8-30720

STRAP-EARTH

1шт.

23

21FW-10080

HARNESS-FUEL

1шт.

24

F12140020

GROMMET

2шт.

28

21HG-10131

PLATE

2шт.

30

F12840010

LAMP SUB ASSY-WORK

OPT

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,20L,STD #0008

1шт.

32

21HA-20310

LAMP-BEACON, AMBER

AMBER,20L,STD #0009

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,25L,STD #0306

1шт.

32

21HA-20310

LAMP-BEACON, AMBER

AMBER,25L,STD #0307

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,30L,STD #0176

1шт.

32

21HA-20310

LAMP-BEACON, AMBER

AMBER,30L,STD #0177

1шт.

32-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,20L #0009

1шт.

32-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,25L #0307

1шт.

32-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,30L #0177

1шт.

32-2

21HA-21140

XENON LAMP

NOT SHOWN,20L #0009

1шт.

32-2

21HA-21140

XENON LAMP

NOT SHOWN,25L #0307

1шт.

32-2

21HA-21140

XENON LAMP

NOT SHOWN,30L #0177

1шт.

33

F23842010

STROBE LAMP-RED

RED,20L #0008

1шт.

33

21HA-20320

LAMP-BEACON, RED

RED,20L #0009

1шт.

33

F23842010

STROBE LAMP-RED

RED,25L #0306

1шт.

33

21HA-20320

LAMP-BEACON, RED

RED,25L #0307

1шт.

33

F23842010

STROBE LAMP-RED

RED,30L #0176

1шт.

33

21HA-20320

LAMP-BEACON, RED

RED,30L #0177

1шт.

33-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,20L #0009

1шт.

33-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,25L #0307

1шт.

33-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,30L #0177

1шт.

33-2

21HA-21140

XENON LAMP

NOT SHOWN,20L #0009

1шт.

33-2

21HA-21140

XENON LAMP

NOT SHOWN,25L #0307

1шт.

33-2

21HA-21140

XENON LAMP

NOT SHOWN,30L #0177

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,20L #0008

1шт.

34

21HA-20330

LAMP-BEACON, BLUE

BLUE,20L #0009

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,25L #0306

1шт.

34

21HA-20330

LAMP-BEACON, BLUE

BLUE,25L #0307

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,30L #0176

1шт.

34

21HA-20330

LAMP-BEACON, BLUE

BLUE,30L #0177

1шт.

34-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,20L #0009

1шт.

34-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,25L #0307

1шт.

34-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,30L #0177

1шт.

34-2

21HA-21140

XENON LAMP

NOT SHOWN,20L #0009

1шт.

34-2

21HA-21140

XENON LAMP

NOT SHOWN,25L #0307

1шт.

34-2

21HA-21140

XENON LAMP

NOT SHOWN,30L #0177

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,20L #0008

1шт.

35

21HA-20210

PLATE

B/LAMP,20L #0009

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,25L #0306

1шт.

35

21HA-20210

PLATE

B/LAMP,25L #0307

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,30L #0176

1шт.

35

21HA-20210

PLATE

B/LAMP,30L #0177

1шт.

36

S037-102026

BOLT-W/WASHER

OPT

2шт.

57

S035-061526

BOLT-W/WASHER

SEE ILLUST

2шт.

58

S541-080002

CLAMP-TUBE

SEE ILLUST

2шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER3,20L #0023

1шт.

59

21FK-10501

PEDAL-ACCELERATOR

TIER3,20L #0024

1шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER3,25L #0910

1шт.

59

21FK-10501

PEDAL-ACCELERATOR

TIER3,25L #0911

1шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER3,30L #0609

1шт.

59

21FK-10501

PEDAL-ACCELERATOR

TIER3,30L #0610

1шт.

60

S035-082026

BOLT-W/WASHER

TIER 3

2шт.

69

21HF-40110

ECU HOLDER

NON EMISSION

1шт.

70

S035-061526

BOLT-W/WASHER

NON EMISSION

5шт.

71

S035-081526

BOLT-W/WASHER

NON EMISSION

2шт.

84

21FG-10040

LAMP-LICENSE(12V)

OPT

1шт.

84-1

S860-000300

BULB

NOT SHOWN

2шт.

85

S035-081526

BOLT-W/WASHER

6шт.

86

S037-102026

BOLT-W/WASHER

1шт.

87

31L6-02460

CLAMP-TUBE

2шт.

88

S035-061526

BOLT-W/WASHER

2шт.

89

S543-200002

CLAMP-TUBE

4шт.

90

S543-100002

CLAMP-TUBE

3шт.
