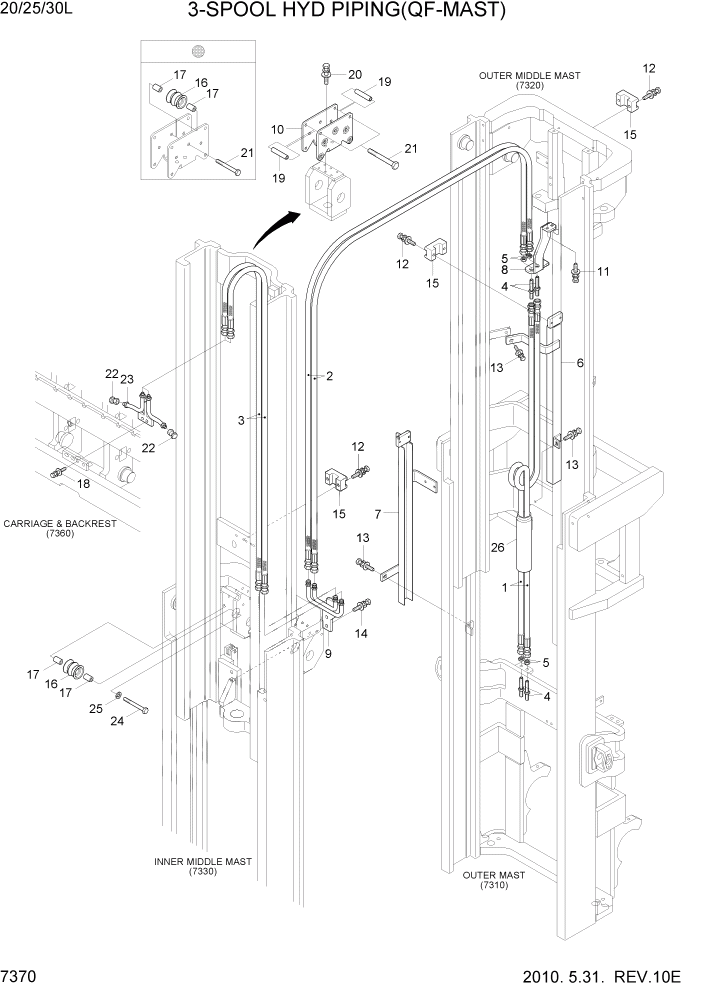

Запчасти Hyundai 20/25/30L-7 PAGE 7370 3-SPOOL HYD PIPING(QF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064063

HOSE ASSY-ORFS 0X0

20/25/30L,QF790

2шт.

1

P910-064060

HOSE ASSY-ORFS 0X0

20/25/30L,QF745

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

20/25/30L,QF700

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

20/25/30L,QF660

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

20/25/30L,QF610

2шт.

2

P910-064056

HOSE ASSY-ORFS 0X0

20/25/30L,QF790

2шт.

2

P910-064053

HOSE ASSY-ORFS 0X0

20/25/30L,QF745

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

20L,QF700 #0026

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

20L,QF700 #0027

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

25L,QF700 #1058

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

25L,QF700 #1059

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

30L,QF700 #0689

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

30L,QF700 #0690

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

20L,QF660 #0026

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

20L,QF660 #0027

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

25L,QF660 #1058

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

25L,QF660 #1059

2шт.

2

P910-064049

HOSE ASSY-ORFS 0X0

30L,QF660 #0689

2шт.

2

P910-064048

HOSE ASSY-ORFS 0X0

30L,QF660 #0690

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

20L,QF610 #0026

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

20L,QF610 #0027

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

25L,QF610 #1058

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

25L,QF610 #1059

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

30L,QF610 #0689

2шт.

2

P910-064044

HOSE ASSY-ORFS 0X0

30L,QF610 #0690

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

20L,QF790 #0026

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

20L,QF790 #0027

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

25L,QF790 #1058

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

25L,QF790 #1059

2шт.

3

P910-064063

HOSE ASSY-ORFS 0X0

30L,QF790 #0689

2шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

30L,QF790 #0690

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

20L,QF745 #0026

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

20L,QF745 #0027

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

25L,QF745 #1058

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

25L,QF745 #1059

2шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

30L,QF745 #0689

2шт.

3

P910-064056

HOSE ASSY-ORFS 0X0

30L,QF745 #0690

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

20L,QF700 #0026

2шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

20L,QF700 #0027

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

25L,QF700 #1058

4шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

25L,QF700 #1059

1шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

30L,QF700 #0689

1шт.

3

P910-064050

HOSE ASSY-ORFS 0X0

30L,QF700 #0690

1шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

20L,QF660 #0026

1шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

20L,QF660 #0027

1шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

25L,QF660 #1058

1шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

25L,QF660 #1059

1шт.

3

P910-064049

HOSE ASSY-ORFS 0X0

30L,QF660 #0689

1шт.

3

P910-064048

HOSE ASSY-ORFS 0X0

30L,QF660 #0690

1шт.

3

P910-064045

HOSE ASSY-ORFS 0X0

20/25/30L,QF610

1шт.

4

31FG-80210

CONNECTOR

1шт.

5

31FG-80430

NUT-HEX

1шт.

6

3DHN-90240

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90230

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90220

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90210

GUARD WA-OUTER MIDDLE

1шт.

6

3DHN-90200

GUARD WA-OUTER MIDDLE

1шт.

7

3DHN-90341

GUARD WA-OUTER

1шт.

7

3DHN-90331

GUARD WA-OUTER

1шт.

7

3DHN-90321

GUARD WA-OUTER

1шт.

7

3DHN-90311

GUARD WA-OUTER

1шт.

7

3DHN-90301

GUARD WA-OUTER

1шт.

8

3DHN-90400

BRACKET WA

1шт.

9

3DHN-90501

PIPE WA

1шт.

10

3DHN-90600

PLATE

1шт.

11

S035-082526

BOLT-W/WASHER

3шт.

12

S035-063526

BOLT-W/WASHER

10шт.

13

S035-082026

BOLT-W/WASHER

3шт.

14

S037-102526

BOLT-W/WASHER

2шт.

15

34FG-90260

CLAMP-HOSE

5шт.

16

34FY-90110

ROLLER-HOSE

10шт.

17

S731-007010

BUSHING-DU

20шт.

18

S037-104026

BOLT-W/WASHER

2шт.

19

34FY-90130

SPACER

2шт.

20

S035-081526

BOLT-W/WASHER

2шт.

21

S035-066526

BOLT-W/WASHER

7шт.

22

X710-100103

CAP-HYD,ORFS

2шт.

23

33HA-90401

PIPE WA

1шт.

24

S109-060806

BOLT-SOCKET

5шт.

25

S411-060006

WASHER-SPRING

5шт.

26

P753-120004

PROTECTOR COVER-HOSE

20L #0027

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

25L #1059

1шт.

26

P753-120004

PROTECTOR COVER-HOSE

30L #0690

1шт.
