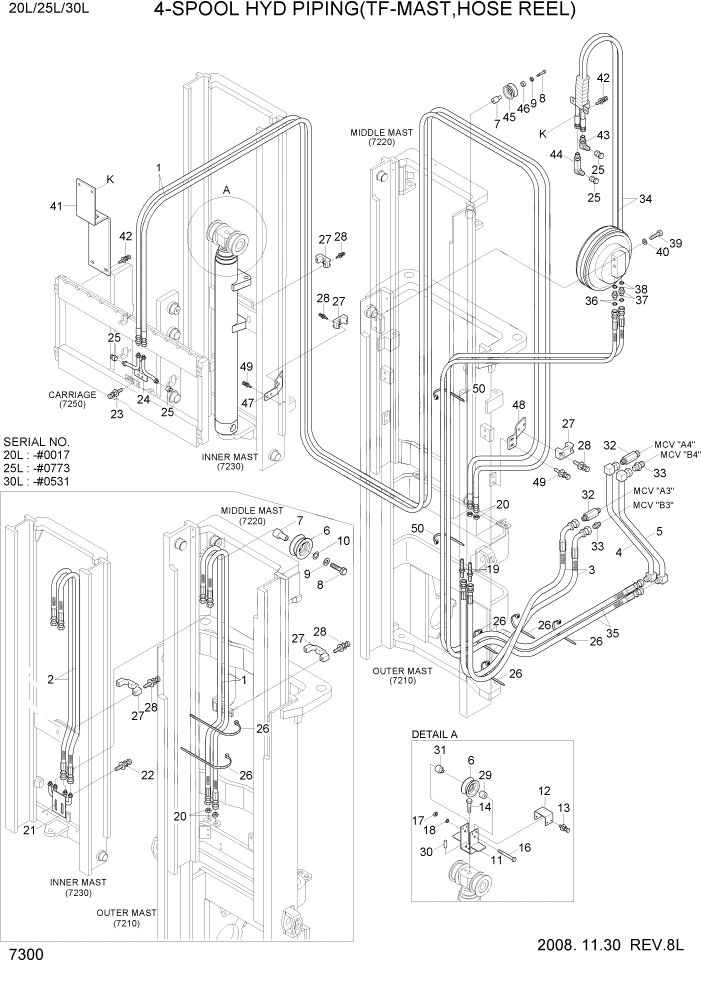

Запчасти Hyundai 20/25/30L-7 PAGE 7300 4-SPOOL HYD PIPING(TF-MAST,HOSE REEL) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

4

33HA-90500

PIPE WA

1шт.

5

33HA-90600

PIPE WA

1шт.

6

34FG-90201

PULLEY-HOSE

2шт.

7

31FV-90130

PIN-H/PULLEY

1шт.

8

S017-120606

BOLT-HEX

1шт.

9

S411-120006

WASHER-SPRING

1шт.

10

S441-120006

WASHER-HARDENED

1шт.

11

33HA-90700

BRACKET WA

1шт.

12

33HA-90750

COVER

1шт.

13

S035-081526

BOLT-W/WASHER

4шт.

14

S017-120456

BOLT-HEX

1шт.

15

S411-120006

WASHER-SPRING

1шт.

16

S017-101006

BOLT-HEX

1шт.

17

S275-100006

NUT-SELF LOCKING

1шт.

18

S403-10200B

WASHER-PLAIN

1шт.

19

31FG-80210

CONNECTOR

2шт.

20

31FG-80430

NUT-HEX

2шт.

21

34FG-90210

PIPE WA

1шт.

22

S037-102026

BOLT-W/WASHER

2шт.

23

S037-104026

BOLT-W/WASHER

2шт.

24

33HA-90401

PIPE WA

1шт.

25

X710-100103

CAP-DUST

4шт.

26

S552-102370

CLAMP-BAND

3шт.

27

34FG-90260

CLAMP-HOSE

2шт.

28

S035-063526

BOLT-W/WASHER

4шт.

29

34FG-90360

SPACER

1шт.

30

S471-800162

PIN-SPRING

1шт.

31

34FG-90250

PIN-HOSE PULLEY

1шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,20L #0017

2шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,20L #0018

2шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,25L #0773

2шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,25L #0774

2шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,30L #0531

2шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,30L #0532

2шт.

35

P910-064041

HOSE ASSY-ORFS 0X0

TF430

2шт.

35

P910-064043

HOSE ASSY-ORFS 0X0

TF450

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,20L #0017

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,20L #0018

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,25L #0773

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,25L #0774

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,30L #0531

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,30L #0532

2шт.

36

S621-012001

O-RING

2шт.

37

X500-310002

CONNECTOR-ORFS

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,20L #0017

2шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,20L #0018

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,25L #0773

2шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,25L #0774

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,30L #0531

2шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,30L #0532

2шт.

44

33FJ-80180

ELBOW-90,LONG

1шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,20L #0017

2шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,20L #0018

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,25L #0773

2шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,25L #0774

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,30L #0531

2шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,30L #0532

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,20L #0017

2шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,20L #0018

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,25L #0773

2шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,25L #0774

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,30L #0531

2шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,30L #0532

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,20L #0017

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,20L #0018

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,25L #0773

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,25L #0774

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,30L #0531

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,30L #0532

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,20L #0017

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,20L #0018

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,25L #0773

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,25L #0774

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,30L #0531

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,30L #0532

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,20L #0017

2шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,20L #0018

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,25L #0773

2шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,25L #0774

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,30L #0531

2шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,30L #0532

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,20L #0017

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,25L #0773

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,30L #0531

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,20L #0017

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,25L #0773

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,30L #0531

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,20L #0017

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,25L #0773

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,30L #0531

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,20L #0017

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,25L #0773

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,30L #0531

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,20L #0017

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,25L #0773

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,30L #0531

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,20L #0017

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,25L #0773

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,30L #0531

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,20L #0017

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,25L #0773

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,30L #0531

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,20L #0017

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,25L #0773

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,30L #0531

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,20L #0017

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,25L #0773

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,30L #0531

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,20L #0017

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,25L #0773

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,30L #0531

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,20L #0017

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,25L #0773

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,30L #0531

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,20L #0017

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,25L #0773

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,30L #0531

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

20L #0017

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

20L #0018

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

25L #0763

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

25L #0764

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

30L #0515

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

30L #0516

2шт.

4

33HA-90500

PIPE WA

1шт.

5

33HA-90600

PIPE WA

1шт.

6

34FG-90201

PULLEY-HOSE

20L #0017

2шт.

6

34FG-90201

PULLEY-HOSE

20L #0018

1шт.

6

34FG-90201

PULLEY-HOSE

25L #0773

2шт.

6

34FG-90201

PULLEY-HOSE

25L #0774

1шт.

6

34FG-90201

PULLEY-HOSE

30L #0531

2шт.

6

34FG-90201

PULLEY-HOSE

30L #0532

1шт.

7

31FV-90130

PIN-HOSE PULLEY

1шт.

8

S017-120606

BOLT-HEX

20L #0017

1шт.

8

S017-120756

BOLT-HEX

20L #0018

1шт.

8

S017-120606

BOLT-HEX

25L #0773

1шт.

8

S017-120756

BOLT-HEX

25L #0774

1шт.

8

S017-120606

BOLT-HEX

30L #0531

1шт.

8

S017-120756

BOLT-HEX

30L #0532

1шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-120006

WASHER-HARDENED

20L #0017

1шт.

10

S441-120006

WASHER-HARDENED

25L #0773

1шт.

10

S441-120006

WASHER-HARDENED

30L #0531

1шт.

11

33HA-90701

BRACKET WA-PULLEY

20L #0001

1шт.

11

33HA-90700

BRACKET WA

25L #0011

1шт.

11

33HA-90701

BRACKET WA-PULLEY

25L #0012

1шт.

11

33HA-90700

BRACKET WA

30L #0017

1шт.

11

33HA-90701

BRACKET WA-PULLEY

30L #0018

1шт.

12

33HA-90751

COVER

20L #0001

1шт.

12

33HA-90750

COVER

25L #0011

1шт.

12

33HA-90751

COVER

25L #0012

1шт.

12

33HA-90750

COVER

30L #0017

1шт.

12

33HA-90751

COVER

30L #0018

1шт.

13

S035-081526

BOLT-W/WASHER

4шт.

14

S017-120506

BOLT-HEX

1шт.

16

S017-101006

BOLT-HEX

1шт.

17

S275-100006

NUT-SELF LOCKING

1шт.

18

S403-102006

WASHER-PLAIN

1шт.

19

31FG-80210

CONNECTOR

2шт.

20

31FG-80430

NUT-HEX

4шт.

21

34FG-90210

PIPE WA

20L #0017

1шт.

21

34FG-90210

PIPE WA

25L #0773

1шт.

21

34FG-90210

PIPE WA

30L #0531

1шт.

22

S037-102026

BOLT-W/WASHER

20L #0017

2шт.

22

S037-102026

BOLT-W/WASHER

25L #0773

2шт.

22

S037-102026

BOLT-W/WASHER

30L #0531

2шт.

23

S037-103026

BOLT-W/WASHER

2шт.

24

33HA-90401

PIPE WA

1шт.

25

X710-100103

CAP

4шт.

26

S552-102370

CLAMP-BAND

3шт.

27

34FG-90260

CLAMP-HOSE

20L #0017

2шт.

27

34FG-90260

CLAMP-HOSE

20L #0018

3шт.

27

34FG-90260

CLAMP-HOSE

25L #0773

2шт.

27

34FG-90260

CLAMP-HOSE

25L #0774

3шт.

27

34FG-90260

CLAMP-HOSE

30L #0531

2шт.

27

34FG-90260

CLAMP-HOSE

30L #0532

3шт.

28

S035-063526

BOLT-W/WASHER

20L #0017

4шт.

28

S035-063526

BOLT-W/WASHER

20L #0018

6шт.

28

S035-063526

BOLT-W/WASHER

25L #0773

4шт.

28

S035-063526

BOLT-W/WASHER

25L #0774

6шт.

28

S035-063526

BOLT-W/WASHER

30L #0531

4шт.

28

S035-063526

BOLT-W/WASHER

30L #0532

6шт.

29

34FG-90330

SPACER

20L #0001

1шт.

29

34FG-90360

SPACER

25L #0011

1шт.

29

34FG-90330

SPACER

25L #0012

1шт.

29

34FG-90360

SPACER

30L #0017

1шт.

29

34FG-90330

SPACER

30L #0018

1шт.

30

S471-800162

PIN-SPRING

1шт.

31

34FG-90370

PIN-HOSE PULLEY

20L #0001

1шт.

31

34FG-90250

PIN-HOSE PULLEY

25L #0011

1шт.

31

34FG-90370

PIN-HOSE PULLEY

25L #0012

1шт.

31

34FG-90250

PIN-HOSE PULLEY

30L #0017

1шт.

31

34FG-90370

PIN-HOSE PULLEY

30L #0018

1шт.

32

31FQ-10070

CONNECTOR

2шт.

33

31N5-30050

CONNECTOR

2шт.

34

6600363600

HOSE REEL-RH

TF370-TF470

1шт.

34

6600363800

HOSE REEL-LH

TF500-TF700

1шт.

35

P910-064037

HOSE ASSY-ORFS 0X0

TF370,20L #0017

2шт.

35

P910-064038

HOSE ASSY-ORFS 0X0

TF370,20L #0018

2шт.

35

P910-064037

HOSE ASSY-ORFS 0X0

TF370,25L #0773

2шт.

35

P910-064038

HOSE ASSY-ORFS 0X0

TF370,25L #0774

2шт.

35

P910-064037

HOSE ASSY-ORFS 0X0

TF370,30L #0531

2шт.

35

P910-064038

HOSE ASSY-ORFS 0X0

TF370,30L #0532

2шт.

35

P910-064039

HOSE ASSY-ORFS 0X0

TF400,20L #0017

2шт.

35

P910-064040

HOSE ASSY-ORFS 0X0

TF400,20L #0018

2шт.

35

P910-064039

HOSE ASSY-ORFS 0X0

TF400,25L #0773

2шт.

35

P910-064040

HOSE ASSY-ORFS 0X0

TF400,25L #0774

2шт.

35

P910-064039

HOSE ASSY-ORFS 0X0

TF400,30L #0531

2шт.

35

P910-064040

HOSE ASSY-ORFS 0X0

TF400,30L #0532

2шт.

35

P910-064041

HOSE ASSY-ORFS 0X0

TF430,20L #0017

2шт.

35

P910-064042

HOSE ASSY-ORFS 0X0

TF430,20L #0018

2шт.

35

P910-064041

HOSE ASSY-ORFS 0X0

TF430,25L #0773

2шт.

35

P910-064042

HOSE ASSY-ORFS 0X0

TF430,25L #0774

2шт.

35

P910-064041

HOSE ASSY-ORFS 0X0

TF430,30L #0531

2шт.

35

P910-064042

HOSE ASSY-ORFS 0X0

TF430,30L #0532

2шт.

35

P910-064043

HOSE ASSY-ORFS 0X0

TF450,20L #0017

2шт.

35

P910-064044

HOSE ASSY-ORFS 0X0

TF450,20L #0018

2шт.

35

P910-064043

HOSE ASSY-ORFS 0X0

TF450,25L #0773

2шт.

35

P910-064044

HOSE ASSY-ORFS 0X0

TF450,25L #0774

2шт.

35

P910-064043

HOSE ASSY-ORFS 0X0

TF450,30L #0531

2шт.

35

P910-064044

HOSE ASSY-ORFS 0X0

TF450,30L #0532

2шт.

35

P910-064044

HOSE ASSY-ORFS 0X0

TF470,20L #0017

2шт.

35

P910-064045

HOSE ASSY-ORFS 0X0

TF470,20L #0018

2шт.

35

P910-064044

HOSE ASSY-ORFS 0X0

TF470,25L #0773

2шт.

35

P910-064045

HOSE ASSY-ORFS 0X0

TF470,25L #0774

2шт.

35

P910-064044

HOSE ASSY-ORFS 0X0

TF470,30L #0531

2шт.

35

P910-064045

HOSE ASSY-ORFS 0X0

TF470,30L #0532

2шт.

35

P910-064046

HOSE ASSY-ORFS 0X0

TF500,20L #0017

2шт.

35

P910-064047

HOSE ASSY-ORFS 0X0

TF500,20L #0018

2шт.

35

P910-064046

HOSE ASSY-ORFS 0X0

TF500,25L #0773

2шт.

35

P910-064047

HOSE ASSY-ORFS 0X0

TF500,25L #0774

2шт.

35

P910-064046

HOSE ASSY-ORFS 0X0

TF500,30L #0531

2шт.

35

P910-064047

HOSE ASSY-ORFS 0X0

TF500,30L #0532

2шт.

35

P910-064050

HOSE ASSY-ORFS 0X0

TF550,20L #0017

2шт.

35

P910-064051

HOSE ASSY-ORFS 0X0

TF550,20L #0018

2шт.

35

P910-064050

HOSE ASSY-ORFS 0X0

TF550,25L #0773

2шт.

35

P910-064051

HOSE ASSY-ORFS 0X0

TF550,25L #0774

2шт.

35

P910-064050

HOSE ASSY-ORFS 0X0

TF550,30L #0531

2шт.

35

P910-064051

HOSE ASSY-ORFS 0X0

TF550,30L #0532

2шт.

35

P910-064054

HOSE ASSY-ORFS 0X0

TF600,20L #0017

2шт.

35

P910-064055

HOSE ASSY-ORFS 0X0

TF600,20L #0018

2шт.

35

P910-064054

HOSE ASSY-ORFS 0X0

TF600,25L #0773

2шт.

35

P910-064055

HOSE ASSY-ORFS 0X0

TF600,25L #0774

2шт.

35

P910-064054

HOSE ASSY-ORFS 0X0

TF600,30L #0531

2шт.

35

P910-064055

HOSE ASSY-ORFS 0X0

TF600,30L #0532

2шт.

35

P910-064058

HOSE ASSY-ORFS 0X0

TF650,20L #0017

2шт.

35

P910-064058

HOSE ASSY-ORFS 0X0

TF650,25L #0773

2шт.

35

P910-064058

HOSE ASSY-ORFS 0X0

TF650,30L #0531

2шт.

35

P910-064062

HOSE ASSY-ORFS 0X0

TF700,20L #0017

2шт.

35

P910-064062

HOSE ASSY-ORFS 0X0

TF700,25L #0773

2шт.

35

P910-064062

HOSE ASSY-ORFS 0X0

TF700,30L #0531

2шт.

36

S621-012001

O-RING

2шт.

37

X500-310002

CONNECTOR-ORFS

2шт.

38

S611-012001

O-RING

2шт.

39

S017-120806

BOLT-HEX

2шт.

40

S441-120006

WASHER-HARDENED

2шт.

41

33FG-90310

BRACKET

1шт.

42

S037-102556

BOLT-W/WASHER

2шт.

43

33FJ-80170

ELBOW-90

1шт.

44

33FJ-80180

ELBOW-90,LONG

1шт.

45

33HN-80100

PULLEY ASSY-HOSE

20L #0018

1шт.

45

33HN-80100

PULLEY ASSY-HOSE

25L #0774

1шт.

45

33HN-80100

PULLEY ASSY-HOSE

30L #0532

1шт.

46

33HN-90600

SPACER

20L #0018

1шт.

46

33HN-90600

SPACER

25L #0774

1шт.

46

33HN-90600

SPACER

30L #0532

1шт.

47

33HN-90901

BRACKET

20L #0018

1шт.

47

33HN-90901

BRACKET

25L #0774

1шт.

47

33HN-90901

BRACKET

30L #0532

1шт.

48

33HN-90700

BRACKET

20L #0018

1шт.

48

33HN-90700

BRACKET

25L #0774

1шт.

48

33HN-90700

BRACKET

30L #0532

1шт.

49

S035-082516

BOLT-W/WASHER

20L #0018

4шт.

49

S035-082516

BOLT-W/WASHER

25L #0774

4шт.

49

S035-082516

BOLT-W/WASHER

30L #0532

4шт.

50

S552-050203

CLAMP-BAND

20L #0018

2шт.

50

S552-050203

CLAMP-BAND

25L #0774

2шт.

50

S552-050203

CLAMP-BAND

30L #0532

2шт.
