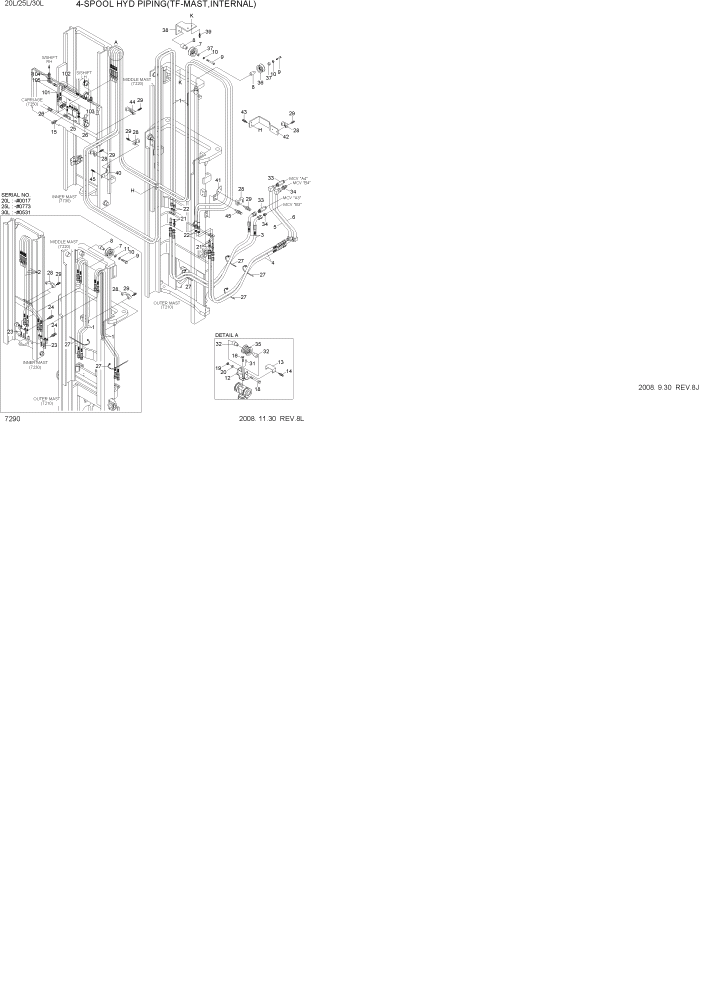

Запчасти Hyundai 20/25/30L-7 PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700

4шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

2шт.

5

33HA-90500

PIPE WA

1шт.

6

33HA-90600

PIPE WA

1шт.

7

34FG-90201

PULLEY-HOSE

2шт.

8

31FV-90130

PIN-HOSE PULLEY

2шт.

9

S017-120606

BOLT-HEX

2шт.

10

S411-120006

WASHER-SPRING

2шт.

11

S441-120006

WASHER-HARDENED

2шт.

12

33HA-90801

BRACKET WA

20L #0001

1шт.

12

33HA-90800

BRACKET WA

25L #0011

1шт.

12

33HA-90801

BRACKET WA

25L #0012

1шт.

12

33HA-90800

BRACKET WA

30L #0017

1шт.

12

33HA-90801

BRACKET WA

30L #0018

1шт.

13

34FG-90270

COVER

1шт.

14

S035-081526

BOLT-W/WASHER

4шт.

15

S037-102526

BOLT-W/WASHER

4шт.

16

S017-120456

BOLT-HEX

1шт.

17

S411-120006

WASHER-SPRING

1шт.

18

S017-101406

BOLT-HEX

1шт.

19

S275-100006

NUT-SELF LOCKING

1шт.

20

S403-102006

WASHER-PLAIN

1шт.

21

31FG-80210

CONNECTOR

4шт.

22

31FG-80430

NUT-HEX

4шт.

23

34FG-90210

PIPE WA

2шт.

24

S037-102026

BOLT-W/WASHER

4шт.

25

34FK-90401

BLOCK WA

2шт.

26

X710-100103

CAP-HYD,ORFS

4шт.

27

S552-102370

CLAMP-BAND

6шт.

28

34FG-90260

CLAMP-HOSE

4шт.

29

S035-063526

BOLT-W/WASHER

8шт.

31

S471-800162

PIN-SPRING

1шт.

32

34FG-90351

SPACER

2шт.

33

31FQ-10070

CONNECTOR

2шт.

34

31N5-30050

CONNECTOR-ORFS

2шт.

35

33HD-90370

PULLEY-HOSE

1шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

2.0/2.5TON,S/S

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

3.0TON,S/SHIFT

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

1шт.

104

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

SIDE SHIFT

1шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,20L #0017

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,20L #0018

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,25L #0773

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,25L #0774

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,30L #0531

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,30L #0532

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,20L #0017

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,20L #0018

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,25L #0773

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,25L #0774

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,30L #0531

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,30L #0532

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,20L #0017

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,20L #0018

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,25L #0773

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,25L #0774

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,30L #0531

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,30L #0532

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,20L #0017

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,20L #0018

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,25L #0773

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,25L #0774

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,30L #0531

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,30L #0532

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,20L #0017

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,20L #0018

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,25L #0773

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,25L #0774

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,30L #0531

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,30L #0532

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,20L #0017

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,20L #0018

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,25L #0773

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,25L #0774

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,30L #0531

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,30L #0532

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,20L #0017

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,20L #0018

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,25L #0773

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,25L #0774

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,30L #0531

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,30L #0532

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,20L #0017

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,20L #0018

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,25L #0773

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,25L #0774

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,30L #0531

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,30L #0532

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,20L #0017

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,25L #0773

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,30L #0531

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,20L #0017

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,25L #0773

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,30L #0531

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,20L #0017

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,25L #0773

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,30L #0531

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,20L #0017

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,25L #0773

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,30L #0531

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,20L #0017

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,25L #0773

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,30L #0531

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,20L #0017

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,25L #0773

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,30L #0531

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,20L #0017

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,25L #0773

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,30L #0531

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,20L #0017

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,25L #0773

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,30L #0531

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,20L #0017

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,25L #0773

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,30L #0531

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,20L #0017

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,25L #0773

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,30L #0531

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,20L #0017

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,25L #0773

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,30L #0531

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,20L #0017

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,25L #0773

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,30L #0531

4шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

20L #0017

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

20L #0018

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

25L #0763

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

25L #0764

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

30L #0515

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

30L #0516

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

20L #0017

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

20L #0018

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

25L #0763

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

25L #0764

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

30L #0515

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X0

30L #0516

2шт.

5

33HA-90500

PIPE WA

1шт.

6

33HA-90600

PIPE WA

1шт.

7

34FG-90201

PULLEY-HOSE

20L #0017

2шт.

7

34FG-90201

PULLEY-HOSE

20L #0018

1шт.

7

34FG-90201

PULLEY-HOSE

25L #0773

2шт.

7

34FG-90201

PULLEY-HOSE

25L #0774

1шт.

7

34FG-90201

PULLEY-HOSE

30L #0531

2шт.

7

34FG-90201

PULLEY-HOSE

30L #0532

1шт.

8

31FV-90130

PIN-HOSE PULLEY

2шт.

9

S017-120606

BOLT-HEX

20L #0017

2шт.

9

S017-120756

BOLT-HEX

20L #0018

2шт.

9

S017-120606

BOLT-HEX

25L #0773

2шт.

9

S017-120756

BOLT-HEX

25L #0774

2шт.

9

S017-120606

BOLT-HEX

30L #0531

2шт.

9

S017-120756

BOLT-HEX

30L #0532

2шт.

10

S411-120006

WASHER-SPRING

3шт.

11

S441-120006

WASHER-HARDENED

20L #0017

1шт.

11

S441-120006

WASHER-HARDENED

25L #0773

1шт.

11

S441-120006

WASHER-HARDENED

30L #0531

1шт.

12

33HA-90801

BRACKET WA-PULLEY

20L #0001

1шт.

12

33HA-90800

BRACKET WA

25L #0011

1шт.

12

33HA-90801

BRACKET WA-PULLEY

25L #0012

1шт.

12

33HA-90800

BRACKET WA

30L #0017

1шт.

12

33HA-90801

BRACKET WA-PULLEY

30L #0018

1шт.

13

34FG-90270

COVER

1шт.

14

S035-081526

BOLT-W/WASHER

4шт.

15

S037-102526

BOLT-W/WASHER

4шт.

16

S017-120506

BOLT-HEX

1шт.

18

S017-101406

BOLT-HEX

1шт.

19

S275-100006

NUT-SELF LOCKING

1шт.

20

S403-102006

WASHER-PLAIN

1шт.

21

31FG-80210

CONNECTOR

4шт.

22

31FG-80430

NUT-HEX

4шт.

23

34FG-90210

PIPE WA

20L #0017

2шт.

23

34FG-90210

PIPE WA

25L #0773

2шт.

23

34FG-90210

PIPE WA

30L #0531

2шт.

24

S037-102026

BOLT-W/WASHER

20L #0017

4шт.

24

S037-102026

BOLT-W/WASHER

25L #0773

4шт.

24

S037-102026

BOLT-W/WASHER

30L #0531

4шт.

25

34FK-90401

BLOCK WA

2шт.

26

X710-100103

CAP

4шт.

27

S552-102370

CLAMP-BAND

6шт.

28

34FG-90260

CLAMP-HOSE

4шт.

29

S035-063526

BOLT-W/WASHER

20L #0017

8шт.

29

S035-063526

BOLT-W/WASHER

20L #0018

10шт.

29

S035-063526

BOLT-W/WASHER

25L #0773

8шт.

29

S035-063526

BOLT-W/WASHER

25L #0774

10шт.

29

S035-063526

BOLT-W/WASHER

30L #0531

8шт.

29

S035-063526

BOLT-W/WASHER

30L #0532

10шт.

31

S471-800162

PIN-SPRING

1шт.

32

34FG-90351

PIN-HOSE PULLEY

2шт.

33

31FQ-10070

CONNECTOR

2шт.

34

31N5-30050

CONNECTOR

2шт.

35

33HD-90370

PULLEY-HOSE

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

20L #0018

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

25L #0774

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

30L #0532

1шт.

37

33HN-90600

SPACER

20L #0018

2шт.

37

33HN-90600

SPACER

25L #0774

2шт.

37

33HN-90600

SPACER

30L #0532

2шт.

38

33HN-90311

BRACKET-PULLEY

20L #0018

1шт.

38

33HN-90311

BRACKET-PULLEY

25L #0774

1шт.

38

33HN-90311

BRACKET-PULLEY

30L #0532

1шт.

39

S035-083536

BOLT-W/WASHER

20L #0018

2шт.

39

S035-083536

BOLT-W/WASHER

25L #0774

2шт.

39

S035-083536

BOLT-W/WASHER

30L #0532

2шт.

40

33HN-90901

BRACKET

20L #0018

1шт.

40

33HN-90901

BRACKET

25L #0774

1шт.

40

33HN-90901

BRACKET

30L #0532

1шт.

41

33HN-90700

BRACKET

20L #0018

1шт.

41

33HN-90700

BRACKET

25L #0774

1шт.

41

33HN-90700

BRACKET

30L #0532

1шт.

42

33HN-90811

BRACKET

20L #0018

1шт.

42

33HN-90811

BRACKET

25L #0774

1шт.

42

33HN-90811

BRACKET

30L #0532

1шт.

43

S035-083036

BOLT-W/WASHER

20L #0018

2шт.

43

S035-083036

BOLT-W/WASHER

25L #0774

2шт.

43

S035-083036

BOLT-W/WASHER

30L #0532

2шт.

44

34FG-90460

CLAMP-HOSE

20L #0018

1шт.

44

34FG-90460

CLAMP-HOSE

25L #0774

1шт.

44

34FG-90460

CLAMP-HOSE

30L #0532

1шт.

45

S035-082516

BOLT-W/WASHER

20L #0018

4шт.

45

S035-082516

BOLT-W/WASHER

25L #0774

4шт.

45

S035-082516

BOLT-W/WASHER

30L #0532

4шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

20/25L,S/S

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

30L,S/SHIFT

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

1шт.

104

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

SIDE SHIFT

1шт.
