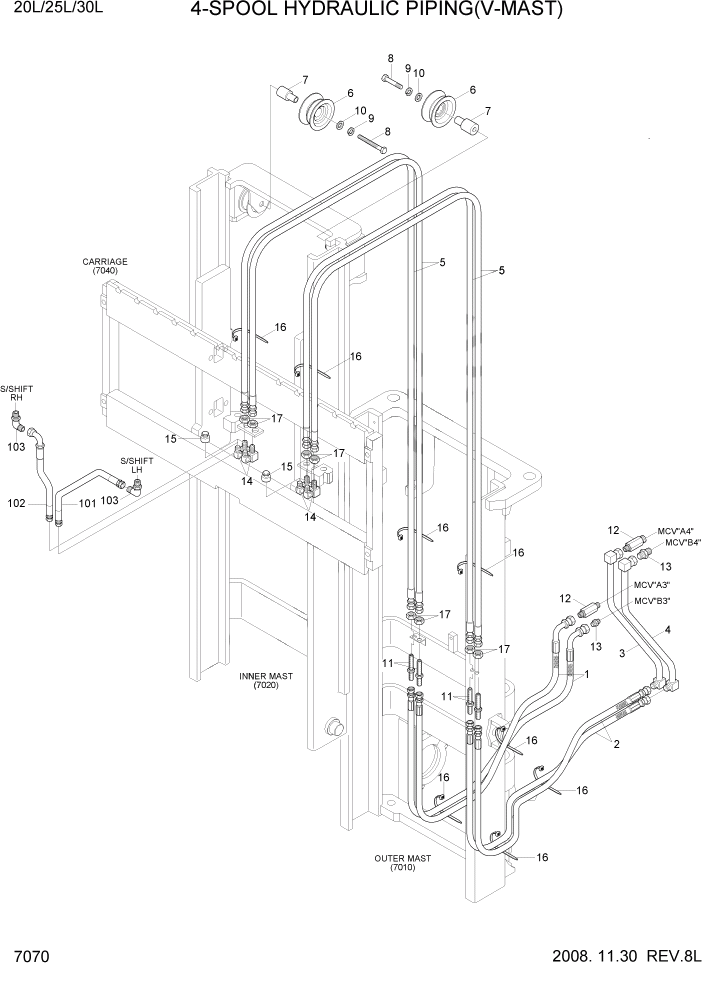

Запчасти Hyundai 20/25/30L-7 PAGE 7070 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064027

HOSE ASSY-ORFS 0X90

20L #0017

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

20L #0018

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

25L #0763

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

25L #0764

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

30L #0515

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

30L #0516

2шт.

2

P913-064025

HOSE ASSY-ORFS 0X90

20L #0017

2шт.

2

P913-064022

HOSE ASSY-ORFS 0X90

20L #0018

2шт.

2

P913-064025

HOSE ASSY-ORFS 0X90

25L #0763

2шт.

2

P913-064022

HOSE ASSY-ORFS 0X90

25L #0764

2шт.

2

P913-064025

HOSE ASSY-ORFS 0X90

30L #0515

2шт.

2

P913-064022

HOSE ASSY-ORFS 0X90

30L #0516

2шт.

3

33HA-90500

PIPE WA

1шт.

4

33HA-90600

PIPE WA

1шт.

5

P910-064051

HOSE ASSY-ORFS 0X0

V300,20L #0017

4шт.

5

P910-064052

HOSE ASSY-ORFS 0X0

V300,20L #0018

4шт.

5

P910-064051

HOSE ASSY-ORFS 0X0

V300,25L #0773

4шт.

5

P910-064052

HOSE ASSY-ORFS 0X0

V300,25L #0774

4шт.

5

P910-064051

HOSE ASSY-ORFS 0X0

V300,30L #0531

4шт.

5

P910-064052

HOSE ASSY-ORFS 0X0

V300,30L #0532

4шт.

5

P910-064057

HOSE ASSY-ORFS 0X0

V330,20L #0017

4шт.

5

P910-064058

HOSE ASSY-ORFS 0X0

V330,20L #0018

4шт.

5

P910-064057

HOSE ASSY-ORFS 0X0

V330,25L #0773

4шт.

5

P910-064058

HOSE ASSY-ORFS 0X0

V330,25L #0774

4шт.

5

P910-064057

HOSE ASSY-ORFS 0X0

V330,30L #0531

4шт.

5

P910-064058

HOSE ASSY-ORFS 0X0

V330,30L #0532

4шт.

5

P910-064061

HOSE ASSY-ORFS 0X0

V350,20L #0017

4шт.

5

P910-064062

HOSE ASSY-ORFS 0X0

V350,20L #0018

4шт.

5

P910-064061

HOSE ASSY-ORFS 0X0

V350,25L #0773

4шт.

5

P910-064062

HOSE ASSY-ORFS 0X0

V350,25L #0774

4шт.

5

P910-064061

HOSE ASSY-ORFS 0X0

V350,30L #0531

4шт.

5

P910-064062

HOSE ASSY-ORFS 0X0

V350,30L #0532

4шт.

5

P910-064067

HOSE ASSY-ORFS 0X0

V370,20L #0017

4шт.

5

P910-064068

HOSE ASSY-ORFS 0X0

V370,20L #0018

4шт.

5

P910-064067

HOSE ASSY-ORFS 0X0

V370,25L #0773

4шт.

5

P910-064068

HOSE ASSY-ORFS 0X0

V370,25L #0774

4шт.

5

P910-064067

HOSE ASSY-ORFS 0X0

V370,30L #0531

4шт.

5

P910-064068

HOSE ASSY-ORFS 0X0

V370,30L #0532

4шт.

5

P910-064073

HOSE ASSY-ORFS 0X0

V400,20L #0017

4шт.

5

P910-064074

HOSE ASSY-ORFS 0X0

V400,20L #0018

4шт.

5

P910-064073

HOSE ASSY-ORFS 0X0

V400,25L #0773

4шт.

5

P910-064074

HOSE ASSY-ORFS 0X0

V400,25L #0774

4шт.

5

P910-064073

HOSE ASSY-ORFS 0X0

V400,30L #0531

4шт.

5

P910-064074

HOSE ASSY-ORFS 0X0

V400,30L #0532

4шт.

5

P910-064079

HOSE ASSY-ORFS 0X0

V430,20L #0017

4шт.

5

P910-064080

HOSE ASSY-ORFS 0X0

V430,20L #0018

4шт.

5

P910-064079

HOSE ASSY-ORFS 0X0

V430,25L #0773

4шт.

5

P910-064080

HOSE ASSY-ORFS 0X0

V430,25L #0774

4шт.

5

P910-064079

HOSE ASSY-ORFS 0X0

V430,30L #0531

4шт.

5

P910-064080

HOSE ASSY-ORFS 0X0

V430,30L #0532

4шт.

5

P910-064085

HOSE ASSY-ORFS 0X0

V450,20L #0017

4шт.

5

P910-064086

HOSE ASSY-ORFS 0X0

V450,20L #0018

4шт.

5

P910-064085

HOSE ASSY-ORFS 0X0

V450,25L #0773

4шт.

5

P910-064086

HOSE ASSY-ORFS 0X0

V450,25L #0774

4шт.

5

P910-064085

HOSE ASSY-ORFS 0X0

V450,30L #0531

4шт.

5

P910-064086

HOSE ASSY-ORFS 0X0

V450,30L #0532

4шт.

5

P910-064089

HOSE ASSY-ORFS 0X0

V470,20L #0017

4шт.

5

P910-064090

HOSE ASSY-ORFS 0X0

V470,20L #0018

4шт.

5

P910-064089

HOSE ASSY-ORFS 0X0

V470,25L #0773

4шт.

5

P910-064090

HOSE ASSY-ORFS 0X0

V470,25L #0774

4шт.

5

P910-064089

HOSE ASSY-ORFS 0X0

V470,30L #0531

4шт.

5

P910-064090

HOSE ASSY-ORFS 0X0

V470,30L #0532

4шт.

5

P910-064095

HOSE ASSY-ORFS 0X0

V500,20L #0017

4шт.

5

P910-064096

HOSE ASSY-ORFS 0X0

V500,20L #0018

4шт.

5

P910-064095

HOSE ASSY-ORFS 0X0

V500,25L #0773

4шт.

5

P910-064096

HOSE ASSY-ORFS 0X0

V500,25L #0774

4шт.

5

P910-064095

HOSE ASSY-ORFS 0X0

V500,30L #0531

4шт.

5

P910-064096

HOSE ASSY-ORFS 0X0

V500,30L #0532

4шт.

6

34FG-90201

PULLEY-HOSE

2шт.

7

31FV-90140

PIN-HOSE PULLEY

20L #0017

2шт.

7

31FV-90130

PIN-HOSE PULLEY

20L #0018

2шт.

7

31FV-90140

PIN-HOSE PULLEY

25L #0773

2шт.

7

31FV-90130

PIN-HOSE PULLEY

25L #0774

2шт.

7

31FV-90140

PIN-HOSE PULLEY

30L #0531

2шт.

7

31FV-90130

PIN-HOSE PULLEY

30L #0532

2шт.

8

S017-120606

BOLT-HEX

2шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-120006

WASHER-HARDENED

2шт.

11

31FG-80200

CONNECTOR-LONG

4шт.

11

31FG-80200

CONNECTOR-LONG

20L #0017

4шт.

11

31FG-80210

CONNECTOR

20L #0018

4шт.

11

31FG-80200

CONNECTOR-LONG

25L #0773

4шт.

11

31FG-80210

CONNECTOR

25L #0774

4шт.

11

31FG-80200

CONNECTOR-LONG

30L #0531

4шт.

11

31FG-80210

CONNECTOR

30L #0532

4шт.

12

31FQ-10070

CONNECTOR

2шт.

13

31N5-30050

CONNECTOR

2шт.

14

31FS-90500

ELBOW WA

4шт.

15

X710-100103

CAP

4шт.

16

S552-050203

CLAMP-BAND

4шт.

17

31FG-80430

NUT-HEX

12шт.

101

P913-064009

HOSE ASSY-ORFS 0X0

SIDE SHIFT

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

20/25L,S/S

2шт.

103

31FG-80400

ELBOW-90

30L,S/SHIFT #0061

2шт.

103

31FG-80700

ELBOW-90

30L,S/SHIFT #0062

2шт.
