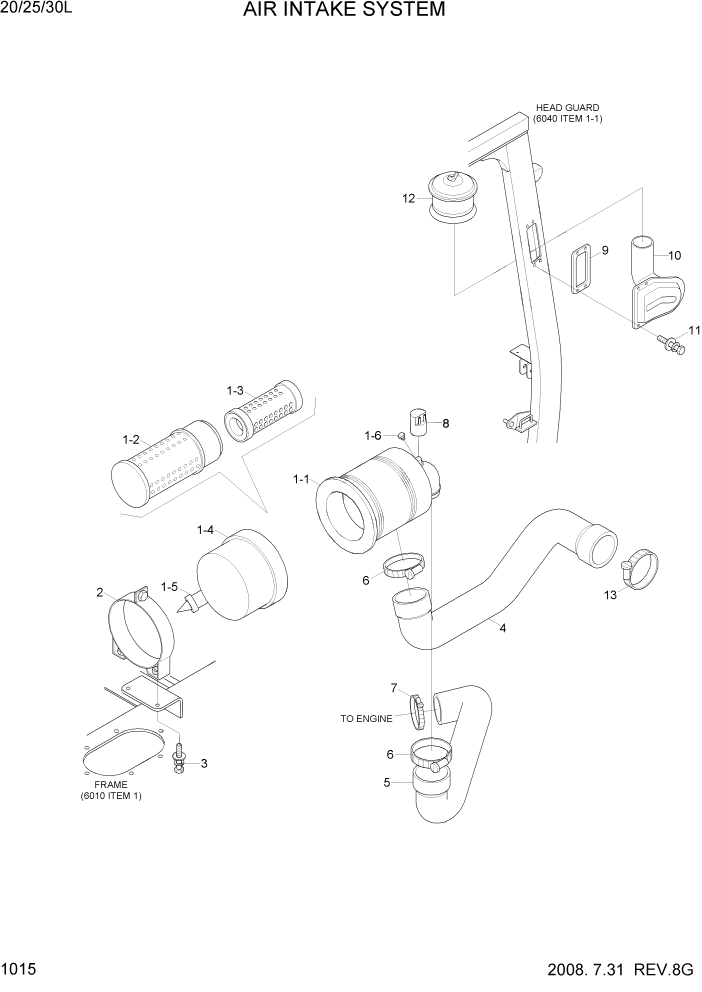

Запчасти Hyundai 20/25/30L-7 PAGE 1015 AIR INTAKE SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11FK-20060

AIR CLEANER ASSY

1шт.

1-1

11FK-20070

BODY ASSY

1шт.

1-2

11FK-20080

ELEMENT-PRIMARY

1шт.

1-3

11FK-20090

ELEMENT-SAFETY

1шт.

1-4

11FK-20100

COVER ASSY

1шт.

1-5

11FK-20110

VACUATOR VALVE

1шт.

1-6

11FK-20120

NIPPLE CAP

1шт.

2

11HF-20030

CLAMP-A/C

1шт.

3

S035-082526

BOLT-W/WASHER

2шт.

4

11HF-20021

HOSE-A/C

20L #0017

1шт.

4

11HF-20100

HOSE-A/C

20L #0018

1шт.

4

11HF-20021

HOSE-A/C

25L #0644

1шт.

4

11HF-20100

HOSE-A/C

25L #0645

1шт.

4

11HF-20021

HOSE-A/C

30L #0434

1шт.

4

11HF-20100

HOSE-A/C

30L #0435

1шт.

5

11HF-20012

HOSE-A/C

1шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

20L #0017

3шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

20L #0018

2шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

25L #0644

3шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

25L #0645

2шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

30L #0434

3шт.

6

S520-070000

CLAMP-HOSE,SCREW DRIVE

30L #0435

2шт.

7

S520-060000

CLAMP-HOSE

1шт.

8

11FG-20110

SENSOR-AIR CLEANER

1шт.

9

11HF-20040

RUBBER PAD

20L,PRE CLEANER #0004

1шт.

9

11HF-20040

RUBBER PAD

25L,PRE CLEANER #0037

1шт.

9

11HF-20040

RUBBER PAD

30L,PRE CLEANER #0034

1шт.

10

11HF-20050

BRACKET-PRE CLEANER

20L,PRE CLEANER #0004

1шт.

10

11HF-20050

BRACKET-PRE CLEANER

25L,PRE CLEANER #0037

1шт.

10

11HF-20050

BRACKET-PRE CLEANER

30L,PRE CLEANER #0034

1шт.

11

S035-082026

BOLT-W/WASHER

20L,PRE CLEANER #0004

4шт.

11

S035-082026

BOLT-W/WASHER

25L,PRE CLEANER #0037

4шт.

11

S035-082026

BOLT-W/WASHER

30L,PRE CLEANER #0034

4шт.

12

11M6-56400

PRECLEANER

20L,PRE CLEANER #0004

1шт.

12

11M6-56400

PRECLEANER

25L,PRE CLEANER #0037

1шт.

12

11M6-56400

PRECLEANER

30L,PRE CLEANER #0034

1шт.

13

S520-080000

CLAMP-HOSE

20L #0018

1шт.

13

S520-080000

CLAMP-HOSE

25L #0645

1шт.

13

S520-080000

CLAMP-HOSE

30L #0435

1шт.
