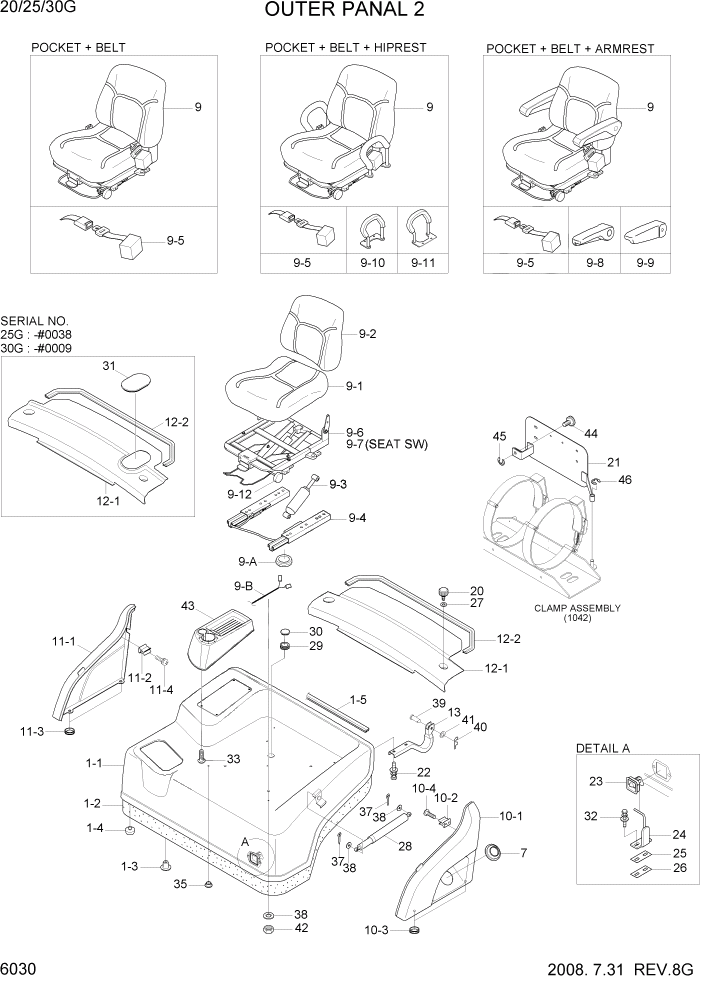

Запчасти Hyundai 20/25/30G-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71HA-10012

BONNET ASSY

1шт.

1-1

71HA-10021

BONNET WA

1шт.

1-2

71HA-10111

SPONGE

1шт.

1-3

71EM-51580

CAP-STUD BOLT

18шт.

1-4

71FA-10220

RUBBER-HOOD SUPPORT

2шт.

1-5

71HA-10170

WEATHER STRIP

1шт.

7

51FA-90050

RUBBER

1шт.

9

71FG-10521

SEAT ASSY(PKT)

W/O OPSS

1шт.

9

71FG-10531

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

9

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

9

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.

9

71FH-10511

SEAT ASSY

TRAVEL OPSS

1шт.

9

71FH-10521

SEAT ASSY(PKT+BT)

TRAVEL OPSS

1шт.

9

71FH-10531

SEAT ASSY(PKT+BT+HR)

TRAVEL OPSS

1шт.

9

71FH-10541

SEAT ASSY(PKT+BT+AR)

TRAVEL OPSS

1шт.

9-A

310006540

SWITCH-SEAT

OPSS

1шт.

9-B

B51800050

HARNESS-SEAT

OPSS

1шт.

9-1

H31013-100C

CUSHION ASSY

1шт.

9-2

H31013-200B

BACK ASSY

1шт.

9-3

H31013-360

SHOCK ABSORBER ASSY

1шт.

9-4

H31013-600B

SLIDE TRACK ASSY

1шт.

9-5

89890-8A610

BELT-SEAT

WITH BELT

1шт.

9-6

H31023-300G

SUSPENSION

W/O OPSS

1шт.

9-7

H31023-301G

SUSPENSION

TRAVEL OPSS

1шт.

9-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST

1шт.

9-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST

1шт.

9-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST

1шт.

9-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST

1шт.

9-12

71FH-10590

KNOB-RECLINER

1шт.

10

71HA-10512

COVER-LH

20/25G #0001

1шт.

10

71HA-10511

COVER-LH

30G #0001

1шт.

10

71HA-10512

COVER-LH

30G #0002

1шт.

10-1

71HA-10570

COVER-LH

1шт.

10-2

71EM-51571

HOLDER-ROD

1шт.

10-3

FCA0700770

GROMMET

2шт.

10-4

S131-051046

SCREW-W/WASHER C/RD

2шт.

11

71HF-10522

COVER-RH

20/25G #0001

1шт.

11

71HF-10521

COVER-RH

30G #0001

1шт.

11

71HF-10522

COVER-RH

30G #0002

1шт.

11-1

71HF-10580

COVER-RH

1шт.

11-2

71EM-51571

HOLDER-ROD

1шт.

11-3

FAC0700770

GROMMET

2шт.

11-4

S131-051046

SCREW-W/WASHER C/RD

2шт.

12

71HA-10532

SUB BONNET ASSY

20G

1шт.

12

71HA-10531

SUB BONNET ASSY

25G #0038

1шт.

12

71HA-10532

SUB BONNET ASSY

25G #0039

1шт.

12

71HA-10531

SUB BONNET ASSY

30G #0009

1шт.

12

71HA-10532

SUB BONNET ASSY

30G #0010

1шт.

12-1

71HA-10542

SUB BONNET

20G

1шт.

12-1

71HA-10541

SUB BONNET

25G #0038

1шт.

12-1

71HA-10542

SUB BONNET

25G #0039

1шт.

12-1

71HA-10541

SUB BONNET

30G #0009

1шт.

12-1

71HA-10542

SUB BONNET

30G #0010

1шт.

12-2

S771-009150

SUB BONNET

20G

1шт.

12-2

S771-008400

WEATHER STRIP

25G #0038

1шт.

12-2

S771-009150

SUB BONNET

25G #0039

1шт.

12-2

S771-008400

WEATHER STRIP

30G #0009

1шт.

12-2

S771-009150

SUB BONNET

30G #0010

1шт.

13

71HA-10161

HINGE

2шт.

20

FAC0700820-01

KNOB

2шт.

21

71FU-10160

NUMBER PLATE WA

KOREA

1шт.

22

S035-082026

BOLT-W/WASHER

4шт.

23

71HA-10610

HINGE

1шт.

24

71HA-10620

STRIKER

1шт.

25

71HA-10630

SHIM(2.0T)

1шт.

26

71HA-10640

SHIM(4.0T)

1шт.

27

71FE-10170

WASHER-RUBBER

2шт.

28

71FG-10070

GAS SPRING

1шт.

29

S681-230800

GROMMET

TRAVEL OPSS

1шт.

30

FHC0904100

RUBBER-STAY

W/O OPSS

1шт.

31

71HF-10610

COVER-RUBBER

25G #0038

1шт.

31

71HF-10610

COVER-RUBBER

30G #0009

1шт.

32

S035-082526

BOLT-W/WASHER

2шт.

33

S131-061546

SCREW-W/WASHER

4шт.

37

S461-200152

PIN-SPLIT

2шт.

38

S403-08200B

WASHER-PLAIN

6шт.

39

S491-120502

PIN-CLEVIS

2шт.

40

S501-120002

PIN-SELF LOCKING

2шт.

41

S403-12100B

WASHER-PLAIN

2шт.

42

S275-080006

NUT-SELF LOCKING

4шт.

43

71HA-10700

TRAY

1шт.

44

FBC0900110-01

KNOB

KOREA

1шт.

45

P560-070006

RETAINING RING-E TYPE

KOREA

1шт.

46

P560-120006

RETAINING RING-E TYPE

KOREA

1шт.
