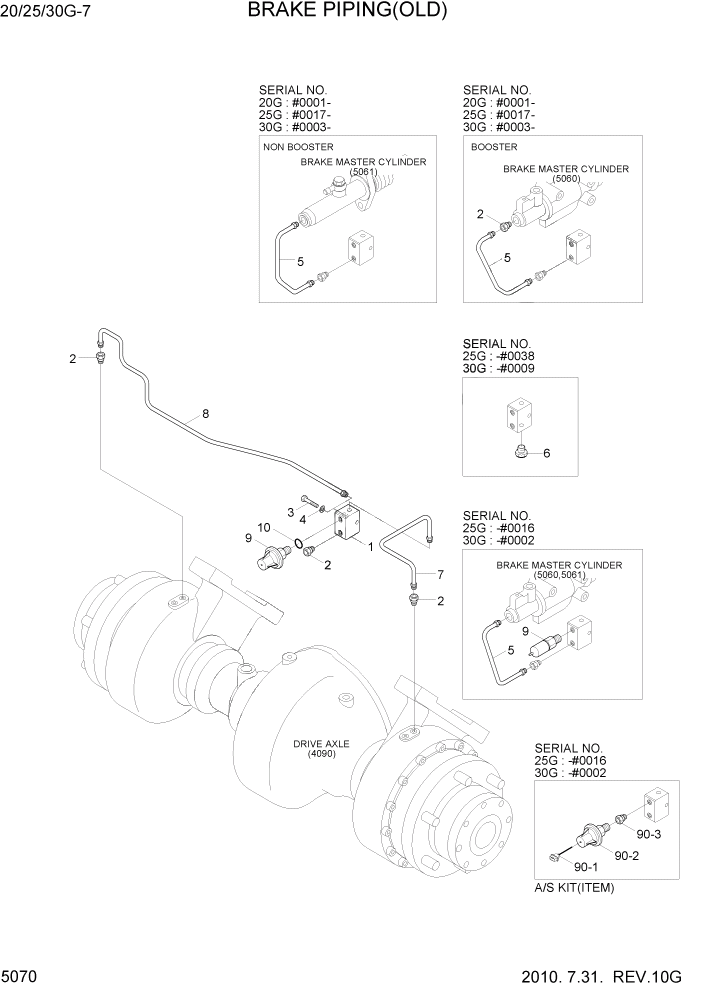

Запчасти Hyundai 20/25/30G-7 PAGE 5070 BRAKE PIPING(OLD) СИСТЕМА УПРАВЛЕНИЯ

*

@

BRAKE PIPING

NOT #0001

1шт.

*

@

BRAKE PIPING

NOT #0126

1шт.

*

@

BRAKE PIPING

NOT #0058

1шт.

1

81HA-60072

BLOCK-3WAY

20G #0001

1шт.

1

81HA-60071

BLOCK-3WAY

20G

1шт.

1

81HA-60060

BLOCK-4WAY

25G #0016

1шт.

1

81HA-60070

BLOCK-4WAY

25G #0017 - #0038

1шт.

1

81HA-60071

BLOCK-3WAY

25G #0039 - #0110

1шт.

1

81HA-60072

BLOCK-3WAY

25G #0111

1шт.

1

81HA-60060

BLOCK-4WAY

30G #0002

1шт.

1

81HA-60070

BLOCK-4WAY

30G #0003 - #0009

1шт.

1

81HA-60071

BLOCK-3WAY

30G #0010 - #0033

1шт.

1

81HA-60072

BLOCK-3WAY

30G #0034

1шт.

2

81HF-60010

FITTING

BOOSTER

3шт.

2

81HF-60010

FITTING

NON BOOSTER

2шт.

3

S015-080452

BOLT-HEX

1шт.

4

S411-080002

WASHER-SPRING

1шт.

5

81HA-60042

PIPE ASSY

BOOSTER

1шт.

5

81HA-60043

PIPE ASSY

BOOSTER,20G

1шт.

5

81HA-60042

PIPE ASSY

BOOSTER,25G #0016

1шт.

5

81HA-60043

PIPE ASSY

BOOSTER,25G #0017

1шт.

5

81HA-60042

PIPE ASSY

BOOSTER,30G #0002

1шт.

5

81HA-60043

PIPE ASSY

BOOSTER,30G #0003

1шт.

5

81HF-60710

PIPE ASSY

NON BOOSTER,20G

1шт.

5

81HF-60022

PIPE ASSY

NON BOOSTER

1шт.

5

81HF-60023

PIPE ASSY

NON BOOSTER,20G

1шт.

5

81HF-60022

PIPE ASSY

NON BOOSTER,25G #0016

1шт.

5

81HF-60023

PIPE ASSY

NON BOOSTER,25G #0017 - #0084

1шт.

5

81HF-60710

PIPE ASSY

NON BOOSTER,25G #0085

1шт.

5

81HF-60022

PIPE ASSY

NON BOOSTER,30G #0002

1шт.

5

81HF-60023

PIPE ASSY

NON BOOSTER,30G #0003 - #0025

1шт.

5

81HF-60710

PIPE ASSY

NON BOOSTER,30G #0026

1шт.

6

81FA-60301

PLUG

25G #0038

1шт.

6

81FA-60301

PLUG

30G #0009

1шт.

7

81HF-60032

PIPE ASSY-LH

1шт.

8

81HA-60052

PIPE ASSY-RH

1шт.

9

31L7-41030

SWITCH-PRESSURE

1шт.

9

81FQ-47120

SWITCH-PRESSURE

20G #0001

1шт.

9

31L7-41030

SWITCH-PRESSURE

25G #0016

1шт.

9

81FH-47120

SWITCH-PRESSURE

25G #0017 - #0110

1шт.

9

81FQ-47120

SWITCH-PRESSURE

25G #0111

1шт.

9

31L7-41030

SWITCH-PRESSURE

30G #0002

1шт.

9

81FH-47120

SWITCH-PRESSURE

30G #0003 - #0033

1шт.

9

81FQ-47120

SWITCH-PRESSURE

30G #0034

1шт.

10

S611-011001

O-RING

20G #0001

1шт.

10

S611-011001

O-RING

25G #0111

1шт.

10

S611-011001

O-RING

30G #0034

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

25G,FOR A/S #0016

1шт.

90

27FQ-99990

KIT-STOP LAMP PRESSURE

30G,FOR A/S #0002

1шт.

90-1

27FQ-19010

HARNESS-EXTENSION

1шт.

90-2

81FH-47120

SWITCH-PRESSURE

1шт.

90-3

81HA-60080

FITTING

1шт.
