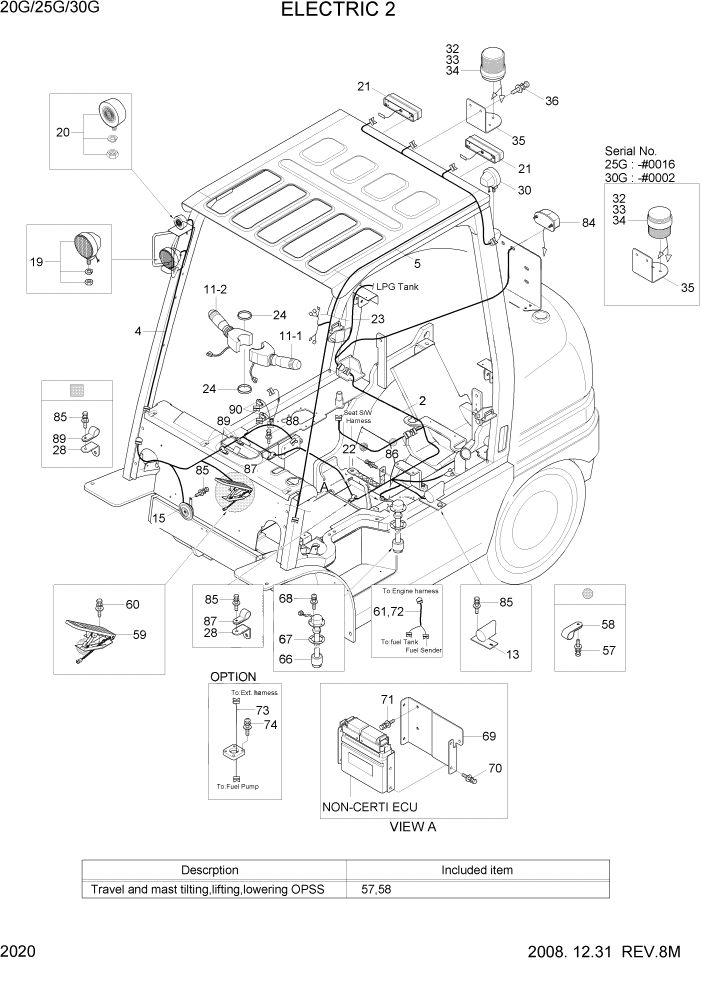

Запчасти Hyundai 20/25/30G-7 PAGE 2020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21HF-40010

HARNESS-FRAME

1шт.

2

21HF-40011

HARNESS-FRAME

20G,SEE 2050

1шт.

2

21HF-40010

HARNESS-FRAME

25G,SEE 2050 #0016

1шт.

2

21HF-40011

HARNESS-FRAME

25G,SEE 2050 #0017

1шт.

2

21HF-40010

HARNESS-FRAME

30G,SEE 2050 #0002

1шт.

2

21HF-40011

HARNESS-FRAME

30G,SEE 2050 #0003

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

20G,SEE 2050 #0001

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

25G,SEE 6040 #0001

1шт.

4

21FG-10360

HARNESS(R/L)-SUPPORT

30G,SEE 6040 #0002

1шт.

5

21HA-10041

HARNESS-HEADGUARD

20G,SEE 2050 #0001

1шт.

5

21HA-10041

HARNESS-HEADGUARD

25G,SEE 6040 #0001

1шт.

5

21HA-10041

HARNESS-HEADGUARD

30G,SEE 6040 #0002

1шт.

11

21HA-10330

STEERING COLUMN SW

1шт.

11-1

21HA-10350

GEAR SELECTOR

1шт.

11-2

21HA-10360

SWITCH-COMBINATION

1шт.

13

21HA-10611

BACK BUZZER

20G

1шт.

13

21HA-10610

BACKUP ALARM

25G #0062

1шт.

13

21HA-10611

BACK BUZZER

25G #0063

1шт.

13

21HA-10610

BACKUP ALARM

30G #0009

1шт.

13

21HA-10611

BACK BUZZER

30G #0010

1шт.

15

21M8-00070

HORN-HIGH

1шт.

19

F12840010

LAMP SUB ASSY-WORK

20G,SEE 6040 #0001

2шт.

19

F12840010

LAMP SUB ASSY-WORK

25G,SEE 6040 #0001

2шт.

19

F12840010

LAMP SUB ASSY-WORK

30G,SEE 6040 #0002

2шт.

20

F12840020

LAMP-FLASHER

20G,SEE 6040 #0001

2шт.

20

F12840020

LAMP-FLASHER

25G,SEE 6040 #0001

2шт.

20

F12840020

LAMP-FLASHER

30G,SEE 6040 #0002

2шт.

21

21FH-77020

LAMP-COMBINATION

20G,SEE 6040 #0001

2шт.

21

21FH-77020

LAMP-COMBINATION

25G,SEE 6040 #0001

2шт.

21

21FH-77020

LAMP-COMBINATION

30G,SEE 6040 #0002

2шт.

22

21L8-30720

STRAP-EARTH

1шт.

23

21FW-10080

HARNESS-FUEL

1шт.

24

F12140020

GROMMET

2шт.

28

21HG-10131

PLATE

2шт.

30

F12840010

LAMP SUB ASSY-WORK

OPT

1шт.

32

21HA-20310

BEACON LAMP(AMBER)

AMBER,20G,STD

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,25G,STD #0016

1шт.

32

21HA-20310

BEACON LAMP(AMBER)

AMBER,25G,STD #0017

1шт.

32

21FG-10810

STROBE LAMP-AMBER

AMBER,30G,STD #0002

1шт.

32

21HA-20310

BEACON LAMP(AMBER)

AMBER,30G,STD #0003

1шт.

32-1

21HA-21110

BEACON LENS(AMBER)

NOT SHOWN,20G #0001

1шт.

32-1

21HA-21110

BEACON LENS(AMBER)

NOT SHOWN,25G #0017

1шт.

32-1

21HA-21110

BEACON LENS(AMBER)

NOT SHOWN,30G #0003

1шт.

32-2

21HA-21140

XEON LAMP

NOT SHOWN,20G #0001

1шт.

32-2

21HA-21140

XEON LAMP

NOT SHOWN,25G #0017

1шт.

32-2

21HA-21140

XEON LAMP

NOT SHOWN,20G #0003

1шт.

33

21HA-20320

BEACON LAMP(RED)

RED,20G

1шт.

33

F23842010

STROBE LAMP-RED

RED,25G #0016

1шт.

33

21HA-20320

BEACON LAMP(RED)

RED,25G #0017

1шт.

33

F23842010

STROBE LAMP-RED

RED,30G #0002

1шт.

33

21HA-20320

BEACON LAMP(RED)

RED,30G #0003

1шт.

33-1

21HA-21120

BEACON LENS(RED)

NOT SHOWN,20G #0001

1шт.

33-1

21HA-21120

BEACON LENS(RED)

NOT SHOWN,25G #0017

1шт.

33-1

21HA-21120

BEACON LENS(RED)

NOT SHOWN,30G #0003

1шт.

33-2

21HA-21140

XEON LAMP

NOT SHOWN,20G #0001

1шт.

33-2

21HA-21140

XEON LAMP

NOT SHOWN,25G #0017

1шт.

33-2

21HA-21140

XEON LAMP

NOT SHOWN,30G #0003

1шт.

34

21HA-20330

BEACON LAMP(BLUE)

BLUE,20G

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,25G #0016

1шт.

34

21HA-20330

BEACON LAMP(BLUE)

BLUE,25G #0017

1шт.

34

21FG-10820

STROBE LAMP-BLUE

BLUE,30G #0002

1шт.

34

21HA-20330

BEACON LAMP(BLUE)

BLUE,30G #0003

1шт.

34-1

21HA-21130

BEACON LENS(BLUE)

NOT SHOWN,20G #0001

1шт.

34-1

21HA-21130

BEACON LENS(BLUE)

NOT SHOWN,25G #0017

1шт.

34-1

21HA-21130

BEACON LENS(BLUE)

NOT SHOWN,30G #0003

1шт.

34-2

21HA-21140

XEON LAMP

NOT SHOWN,20G #0001

1шт.

34-2

21HA-21140

XEON LAMP

NOT SHOWN,25G #0017

1шт.

34-2

21HA-21140

XEON LAMP

NOT SHOWN,30G #0003

1шт.

35

21HA-20210

PLATE

B/LAMP,20G

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,25G #0016

1шт.

35

21HA-20210

PLATE

B/LAMP,25G #0017

1шт.

35

F12110120

BRACKET-BEACON

B/LAMP,30G #0002

1шт.

35

21HA-20210

PLATE

B/LAMP,30G #0003

1шт.

36

S037-102026

BOLT-W/WASHER

OPT

2шт.

57

S035-061526

BOLT-W/WASHER

SEE ILLUST

2шт.

58

S541-080002

CLAMP-TUBE

SEE ILLUST

2шт.

59

21FK-10500

ACCELERATOR PEDAL

TIER 3

1шт.

60

S035-082026

BOLT-W/WASHER

TIER 3

2шт.

61

21HF-40030

EXT.FUEL SENDER

TIER 3 BI-FUEL

1шт.

66

21FG-10311

FUEL SENDER

TIER 3 BI-FUEL

1шт.

67

E128-1053

GASKET

TIER 3 BI-FUEL

1шт.

68

S131-041546

SCREW-W/WASHER

TIER 3 BI-FUEL

5шт.

69

21HF-40110

ECU HOLDER

NON EMI BI-FUEL

1шт.

70

S035-061526

BOLT-W/WASHER

NON EMI BI-FUEL

5шт.

71

S035-081526

BOLT-W/WASHER

NON EMI BI-FUEL

2шт.

72

21HF-40040

EXT.FUEL TANK

NON EMI BI-FUEL

1шт.

73

21HF-40050

HARNESS FUEL PUMP

NON EMI BI-FUEL

1шт.

74

S131-041546

SCREW-W/WASHER

NON EMI BI-FUEL

4шт.

84

21FG-10040

LAMP-LICENSE(12V)

OPT

1шт.

84-1

S860-000300

BULB

NOT SHOWN

2шт.

85

S035-081526

BOLT-W/WASHER

6шт.

86

S037-102026

BOLT-W/WASHER

1шт.

87

31L6-02460

CLAMP-TUBE

2шт.

88

S035-061526

BOLT-W/WASHER

2шт.

89

S543-200002

CLAMP-TUBE

4шт.

90

S543-100002

CLAMP-TUBE

3шт.
